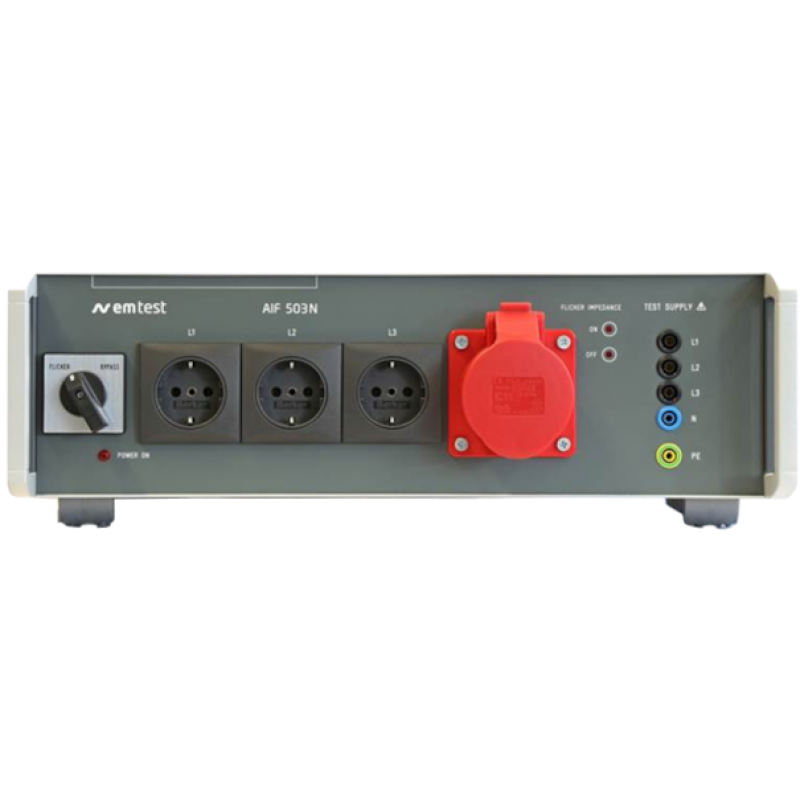

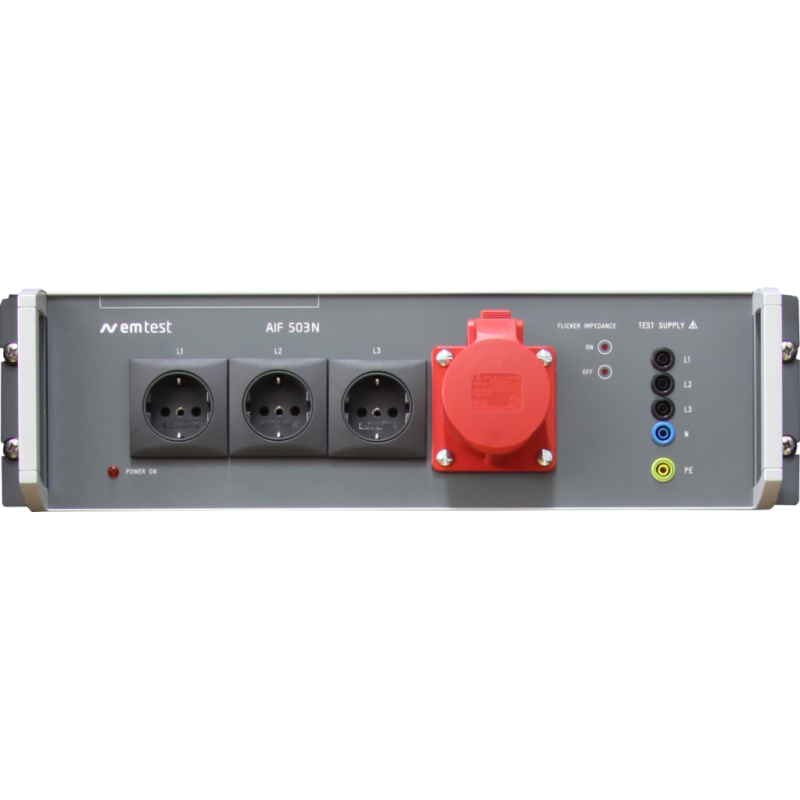

AIF 503N16.3 and 16.5

Impedances values as per IEC 61000-3-3
Non-saturable air coil inductors
Line voltage 3 x 400V
Line current 16 A per phase
Automatic overcurrent protection
Status indication by LED
Standalone bench versions

Overview +

The AIF 503N16.3 and 16.5 are standalone three-phase flicker impedances with a nominal current of 16A per phase. They include Zref as specified in IEC 60725.

Datasheets +
- AIF 503N16_3 and 16_5_datasheet_2024-12-13_EN
