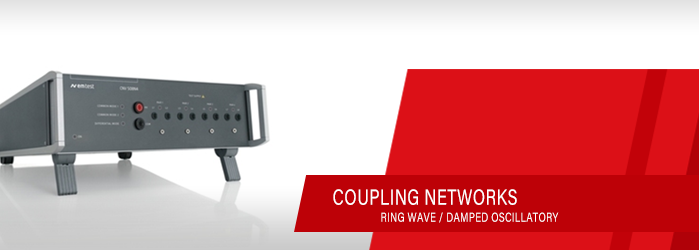

Coupling Networks

Ring Wave / Damped Oscillatory | EM Test | Teseq

Coupling decoupling networks are used to extend the testing capabilities of transient generators. Ametek CTS offers a wide variety of networks to couple on power(mains) and data lines.

CNV 504N5.1

The CNV 504N5-series coupling/decoupling networks are used to apply slow damped oscillatory waves onto signal/data lines in accordance to EN/IEC 61000-4-18
Keep Reading
CNV 508N4

CNV 508N4 is a special coupling/decoupling network being used to perform "Electrical disturbance tests for measuring relays and protection equipment" in accordance to IEC 60255-26.
Keep Reading
