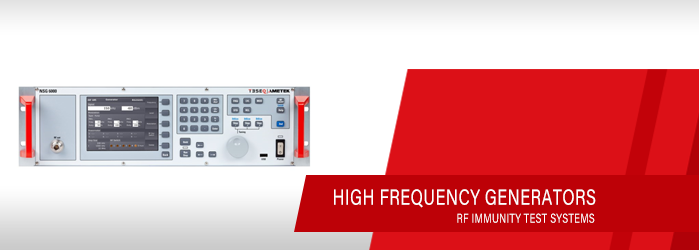

High Frequency Generators

rf immunity systems high frequency generators

AMETEK CTS offers RF Immunity test systems covering applications with frequency range from 4 kHz to 6 GHz. Depending upon the mode, the test systems can be ordered integrated with different options such as amplifiers, power meters, switch and EUT monitoring.

ITS 6006

The ITS 6006B consist of an integrated RF signal generator, RF switch and EUT monitoring interfaces. The unit is designed for various radiated EMC applications in the 80 MHz to 6 GHz frequency range.
Keep Reading
NSG 4070C

The NSG 4070 is a multi-functional device for carrying out EMC immunity tests to accompany development and conformity testing in accordance to IEC / EN 61000-4-6, Namur and several automotive BCI standards. Anyone who spends a considerable amount of time on test level setting, connecting EUT monitoring or writing test reports can now carry out immunity testing in a much more efficient manner with the 4th generation of NSG 4070. Its modular set-up using internal or external amplifiers enables a large variety of applications. The powerful and easy to use firmware makes the NSG 4070 independent from an external PC and control software, however it can also be remote controlled for system operation. A state-of-the-art data transfer of test and measurement data for documentation is provided by USB stick to be plugged into the front panel.
Keep Reading
NSG 6000

The NSG 6000 consists of an integrated RF signal generator, RF switch and EUT monitoring interfaces. The unit is designed for various EMC applications in the 9 kHz to 6 GHz frequency range with multiple EUT monitoring options, 5.7“ TFT color display and remote control option via USB, RS232, LAN or optical
Keep Reading
