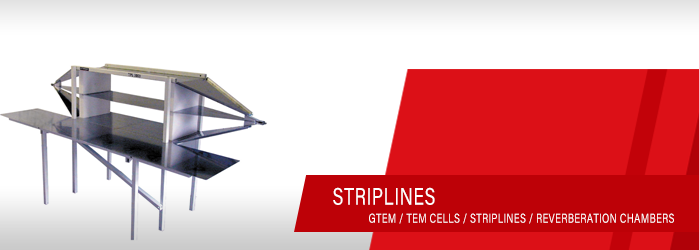

Strip Lines are made for the generation of homogeneous electromagnetic fields and specified in ISO 11452-5 and EU guidelines 95/94. The strip lines can be used for testing of electrical/electronic submodules (EUB) and their associated cables.
The transversal electromagnetic mode which can be developped in the SL 50 strip line, provides the opportunity for doing EMC testing inside the strip line.
The transversal electromagnetic mode which can be developped in the SL 150 strip line, provides the opportunity for doing EMC testing inside the strip line.
Tri-Plate Line 10 kHz to 1 GHz
The transversal electromagnetic mode which can be developped in the SL 90 strip line, provides the opportunity for doing EMC testing inside the strip line.
