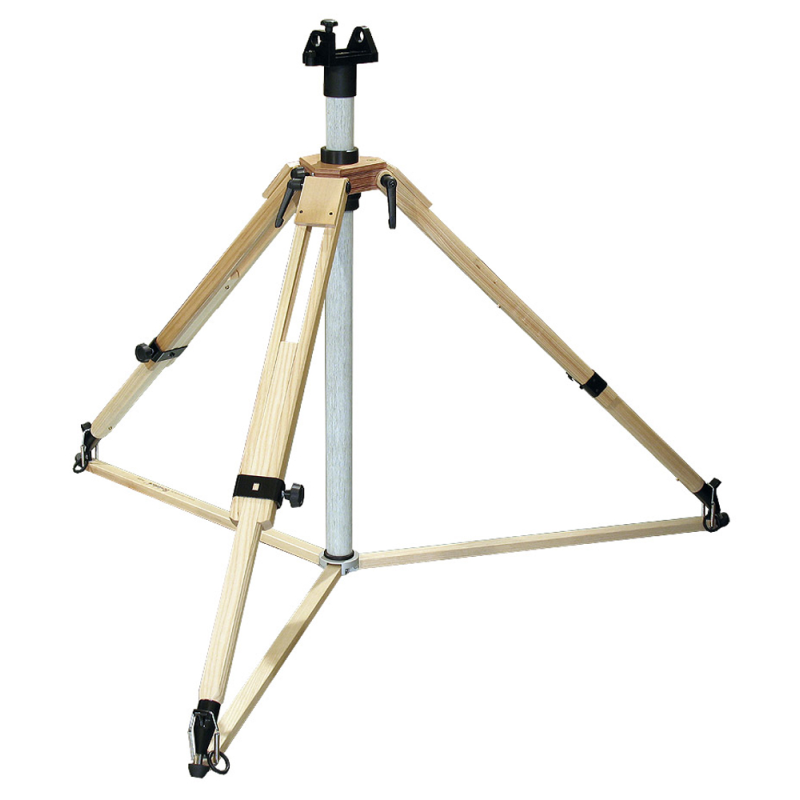

BTP 6020

EMC Antenna Tripod
Minimal RF reflections with virtually no metallic parts
Easy height adjustment and transportability
High stability
Wide application range

Overview +

The BTP 6020 collapsible tripod has been designed for indoor radiated emission an immunity testing; using Teseq antennas with 22 mm diameter tube mounts like CBL 6111, 6112, 6141 and 6143.

Datasheets +
- BTP_6020A_datasheet_e03

Standards +
CISPR Standards+

CISPR 13 CISPR 14-1 CISPR 16-1-4 CISPR 16-2-3 CISPR 22 CISPR 24 CISPR 25 CISPR 32

IEC / EN Generic Standards+

EN 61000-6-1 EN 61000-6-2 EN 61000-6-3 EN 61000-6-4

IEC / EN Product Standards+

IEC 60533 IEC 60601-1-2 IEC 61326

Military and Aerospace+

MIL-STD 461 RTCA/DO 160

IEC / EN Basic Standards+

IEC 61000-4-3

Automotive Standards+

ISO 11452-2
