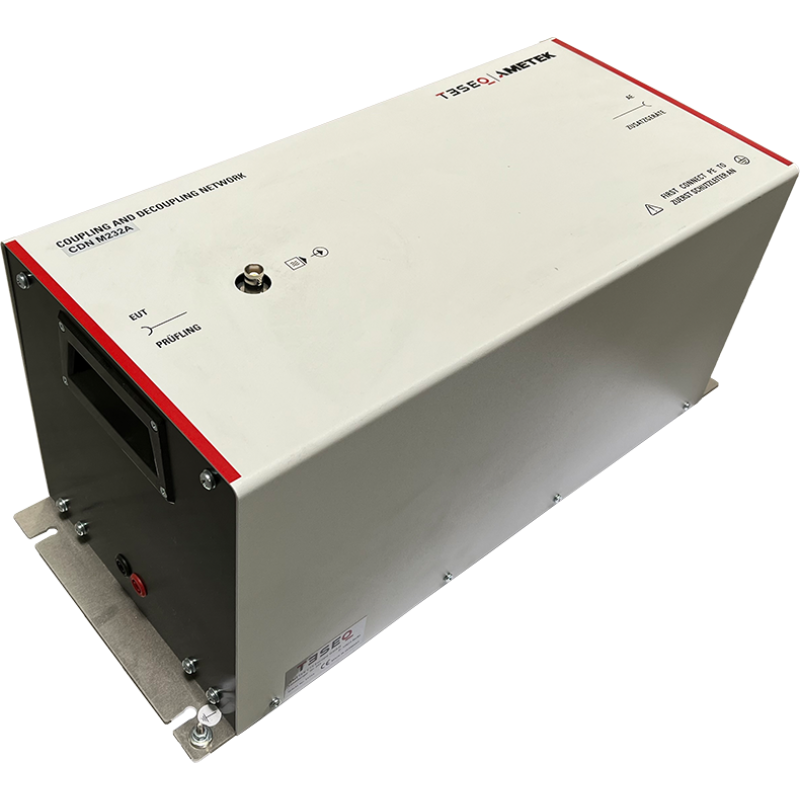

CDN M2 From 150 kHz Series

  • Coupling networks designed for IEC/EN 61000-4-6
  • CDN M series for mains applications
  • Models with frequency range from 150 kHz to 230 MHz
  • For 2 Lines application
  • Models with 4 mm safety banana sockets or terminal block
  • with maximum current of 32 A
  • Special model that fit with home appliances

  • Overview +


    IEC/EN 61000-4-6 specifies the design and performance of a range of coupling/decoupling networks (CDNs). Each CDN is specific to the type of cable and the intended signal carried on the cable. The CDN M series is used to inject the RF disturbance on the main line (supply). Teseq offers an extensive range of CDN M2 series for two line AC and DC applications. The operating frequency starts from 150 kHz to 230 MHz. Teseq CDN M2 series comply fully with the requirements of the standard and provide a simple, reliable and safe method of injecting RF energy into the equipment under test (EUT).
