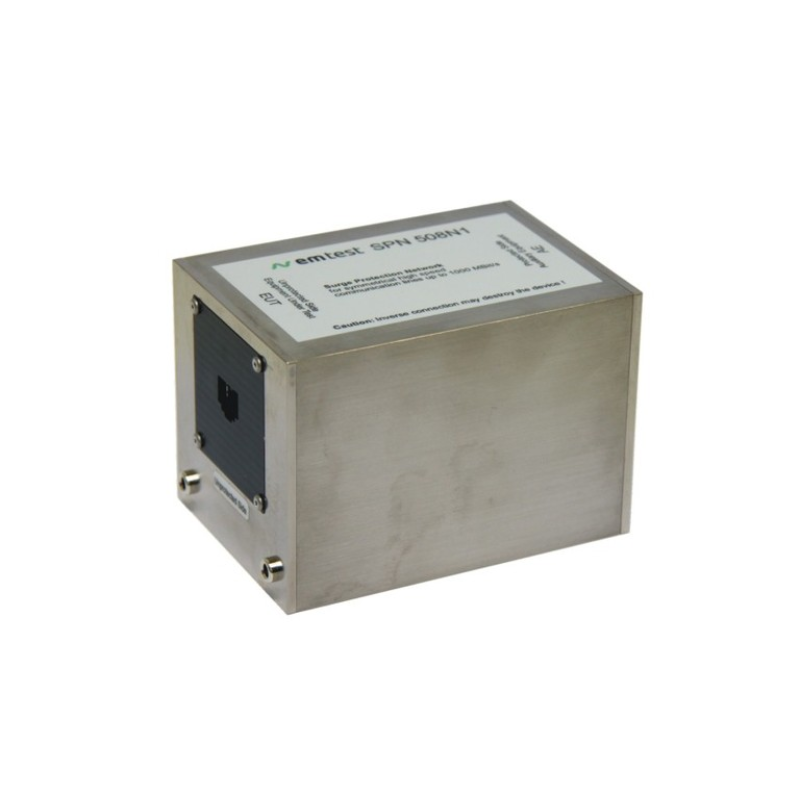

HSC 4-8.1

  • Coupling to unshielded and shielded lines with up to 4 pairs
  • Data transfer up to 1,000 MBit/s
  • Surge test voltage up to 4 kV (1.2/50 µs)
  • Burst test voltage up to 4 kV (5/50 ns)
  • Ringwave test voltage up to 4 kV (0.5 us/100 kHz)
  • Residual voltage max. 50 V at 3 kV Surge
  • Compatible to PoE and PoE+ requirements
  • DUT/AE connection via RJ45 connectors

  • Overview +

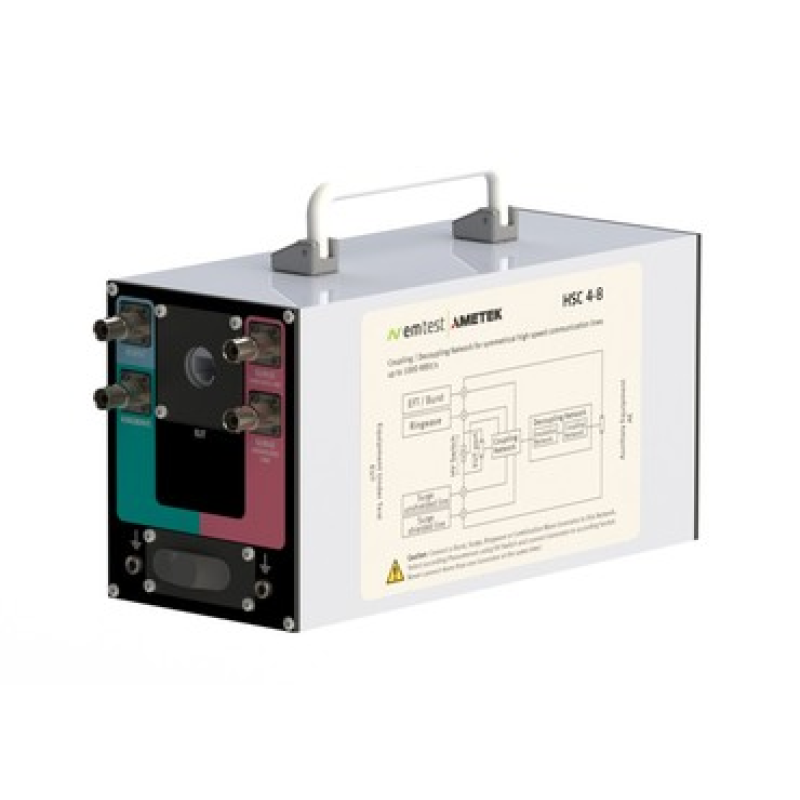

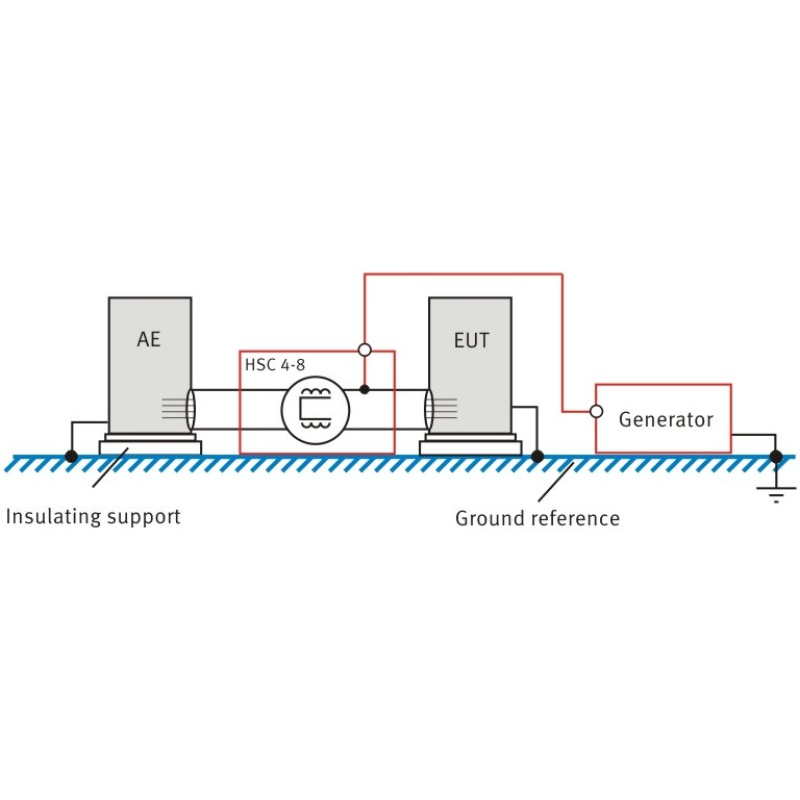

    Coupling/decoupling assembly for unshielded and shielded high-speed communication lines. The HSC 4-8.1 from AMETEK CTS is the first coupling/decoupling network available on the market to couple Surge onto shielded and unshielded high-speed communication lines with data rates up to 1,000 MBit/s. Additionally, the HSC 4-8.1 can be used as a coupling/decoupling network to apply Burst- as well as Ringwave pulses to unshielded symmetrical interconnection lines. The HSC 4-8.1 meets the requirements according Figure 11 and Figure 12 to the standards IEC 61000-4-5 (Ed. 3.0: 2014) and IEC 61000-4-12 (Ed. 3.0: 2017) Figure 10.
