HV-AN 1u-Rxxx Series

1 µH | 1 µF HV-AN / LISN
according ISO 21498-2, MBN 11123, BMW GS 95023 and similar
up to 1000 A EUT current
modular concept
compact and air-cooled

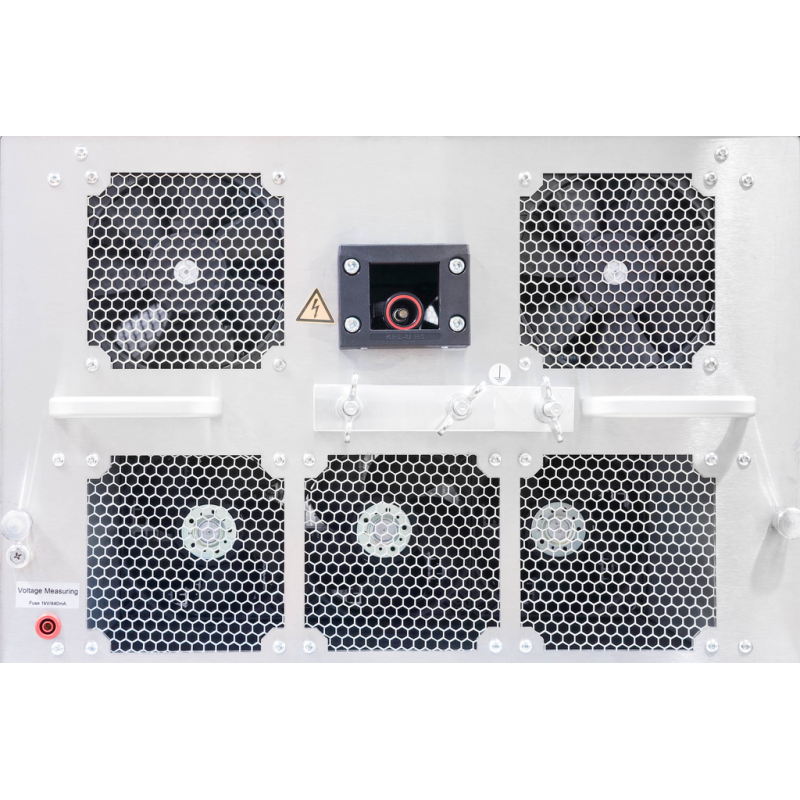

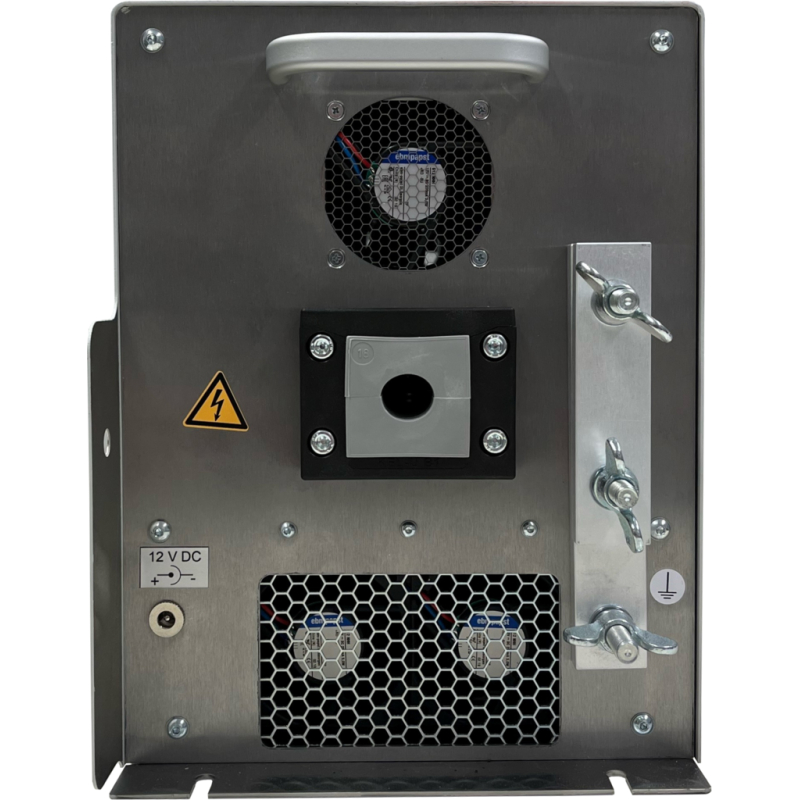

integrated temperature sensor

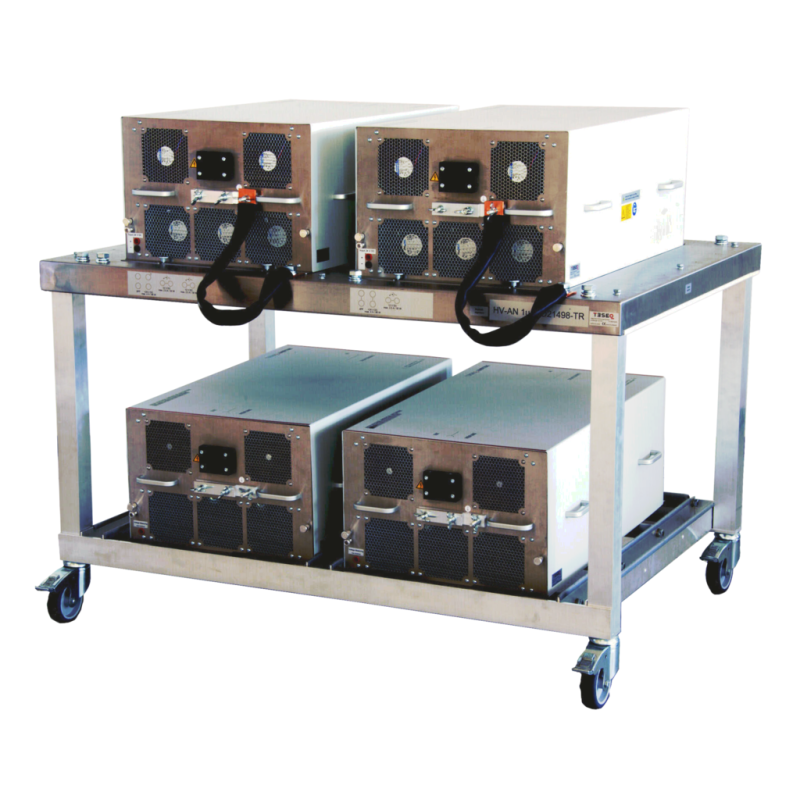

trolley available as accessory

Overview +

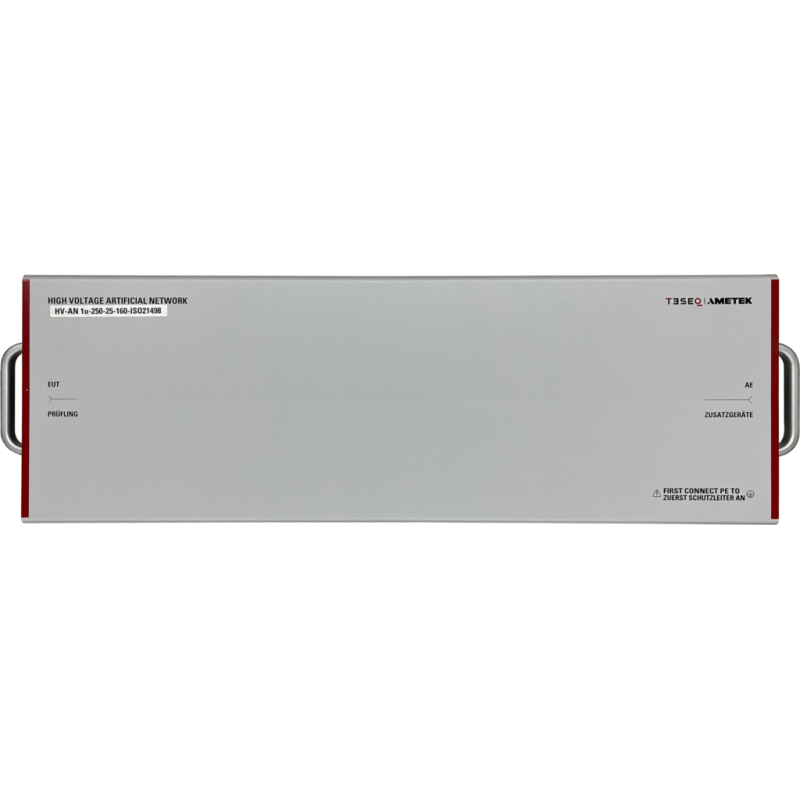

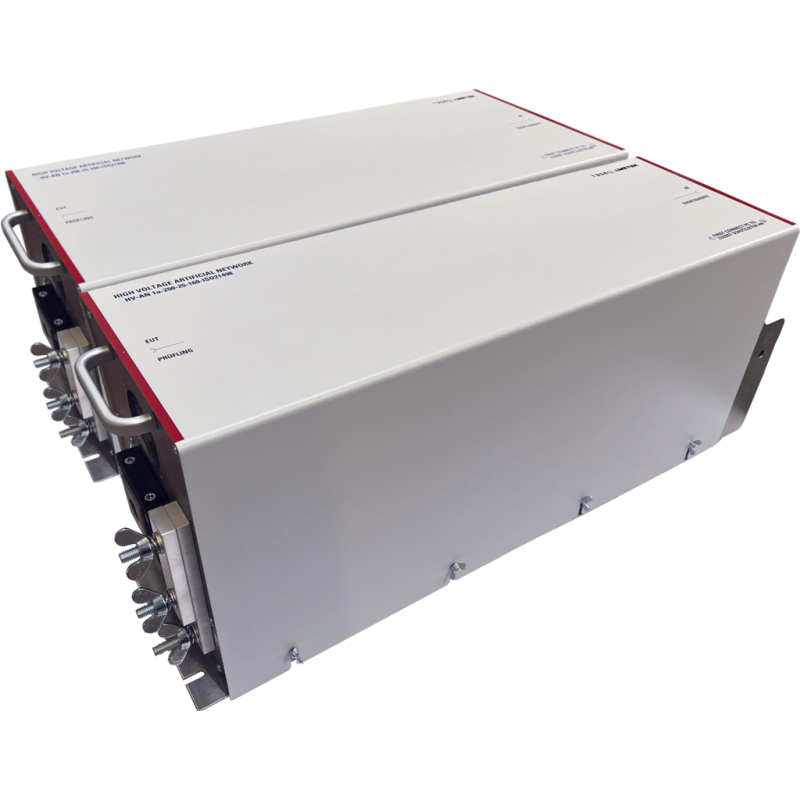

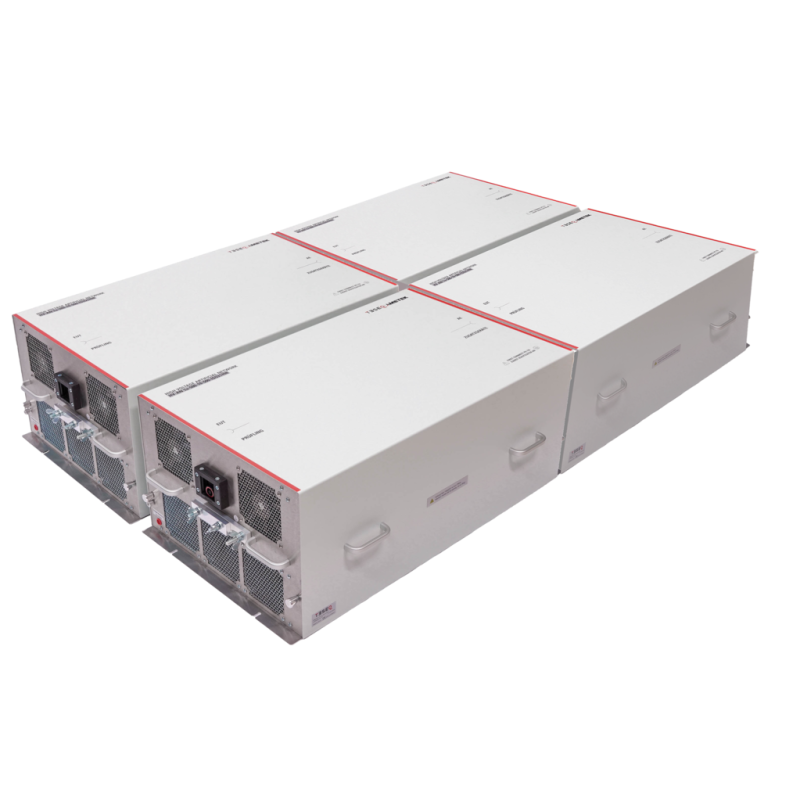

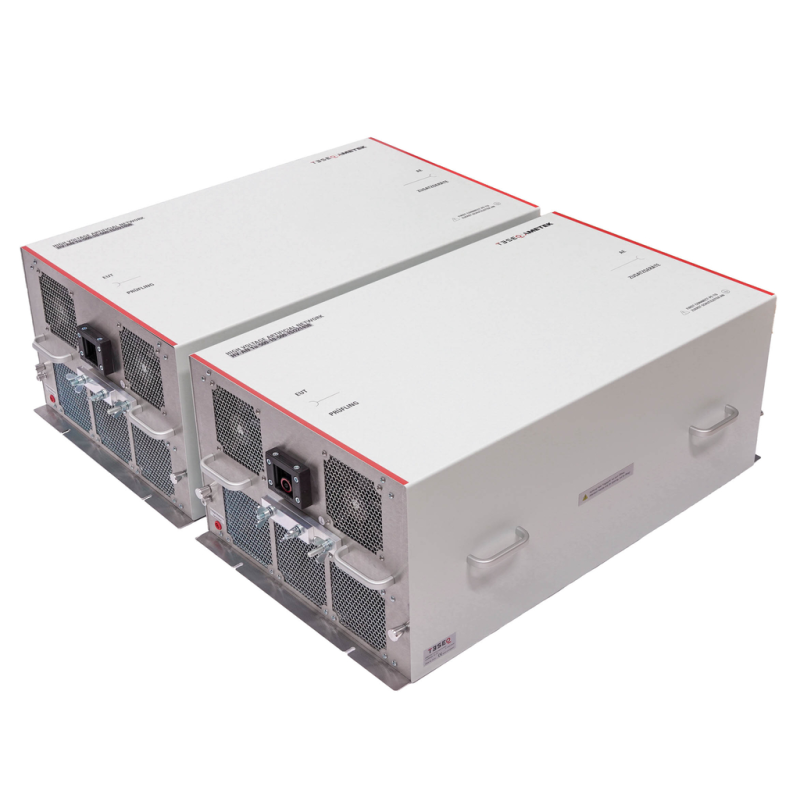

The HV-AN 1u-250 ISO 21498 are artificial networks used for emission mesasurements on electric vehicle high voltage components.The AN simulates the impedance of a vehicle harness and battery. It meets the requirements of ISO 21498-2, MBN 11123, BMW GS95023 and similar standards. The HV-AN 1u-ISO 21498 is based on a modular concept. Each module incorporates the 1 uH inductance, one resistance value (10/25/50 or 100mOhm) and 1 uF capacitor (optional). A pair of two HV-AN 1u-ISO21498 forms a complete set for HV+ and HV- supply lines to high voltage components. Separate sets are available for each resistance value and EUT current.
