PCN 7-R s-1 series

  • According EN 50121 (Railway)
  • For manual coupling with an impedance of 42 Ohm, 0.5 uF
  • PCN 7-R s-1: max impulse voltage 7 kV
  • PCN 7-R s-1.1: max impulse voltage 8 kV
  • Max EUT AC voltage: 690 V
  • Max EUT DC voltage : 1.000 V

  • Overview +

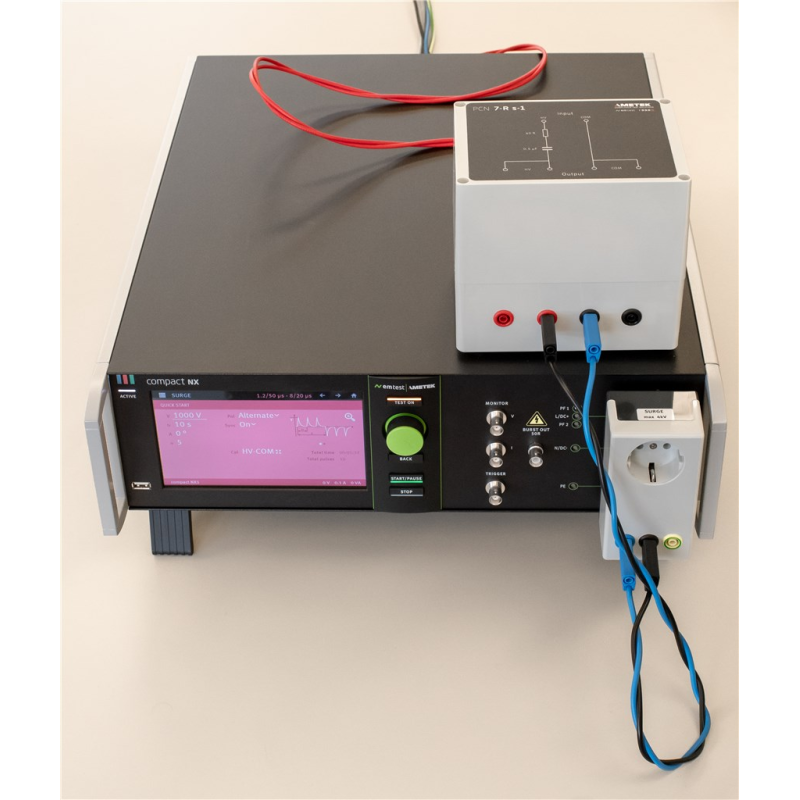

    PCN 7-R s-1 - 1-phase coupling network for manual coupling with an impedance of 42 Ω, 0.5 uF according EN 50121 standards with a max amplitude of 7 kV. The decoupling network of the generator is used for decoupling the impulse. In addition, a version for 8 kV is available (PCN 7-R s-1.1).

  • Datasheets +

  • Standards +


    • IEC / EN Basic Standards+

    • IEC / EN Product Standards+
