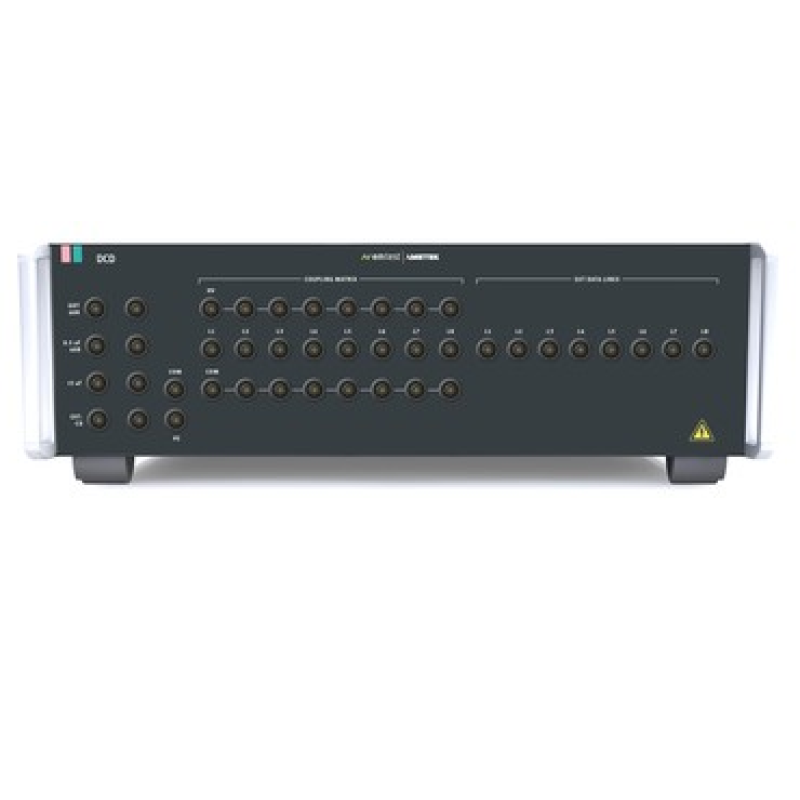

DCD 7 series

  • Coupling/decoupling networks according to IEC/EN 61000-4-5 and IEC/EN 61000-4-12
  • Interchangeable AE port protection modules
  • Test voltage up to 7 kV
  • Line voltage 50 V, 250 V / up to 4 A
  • sr - for unshielded unsymmetrical lines
  • st - for unshielded symmetrical lines
  • Designed for 4/8 lines (2/4 pairs)

  • Overview +


    DCD sr / st - series - coupling/decoupling networks for unshielded unsymmetrical interconnection lines. Maximum test level 7 kV. Several DCD models are available for 4 or 8 signal/data lines. Automated models for Burst, Surge and Ringwave testing are remotely controlled by compact NX.
