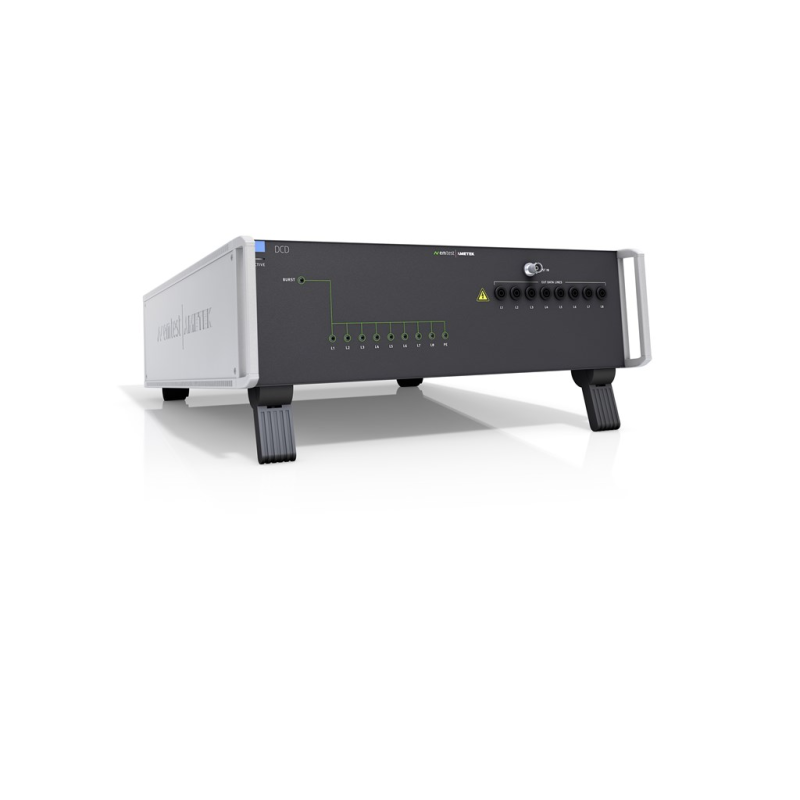

DCD 5 series

  • Coupling/decoupling networks according to IEC/EN 61000-4-5, IEC/EN 61000-4-4 and IEC/EN 61000-4-12
  • Interchangeable AE port protection modules
  • Test voltage up to 5 kV
  • Line voltage 50 V, 250 V / up to 4 A
  • sr - for unshielded unsymmetrical lines
  • st - for unshielded symmetrical lines
  • Designed for 4/8 lines (2/4 pairs)
  • Automated models for Burst, Surge and Ringwave available

  • Overview +


    DCD sr / st / b - series - coupling/decoupling networks for unshielded unsymmetrical interconnection lines. Maximum test level 5 kV. Several DCD models are available for 4 or 8 signal/data lines. Automated models for Burst, Surge and Ringwave testing are remotely controlled by compact NX.

  • Datasheets +

  • Standards +


    • IEC / EN Basic Standards+

    • Telecom / ITU+

    • IEC / EN Generic Standards+
