CTS 23 - Flicker Measurement

Flicker Emission Measurements
IEC 61000-3-3, IEC 61000-3-11 and many others
Large library with pre-programmed tests
Easy generation of comprehensive test reports

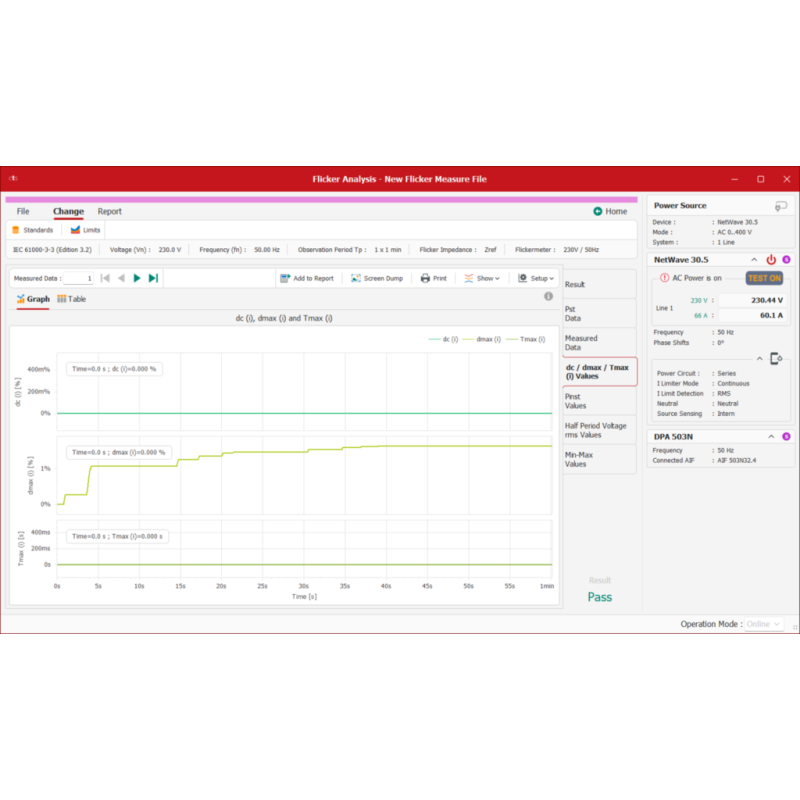

Enhanced analysis for root cause analysis

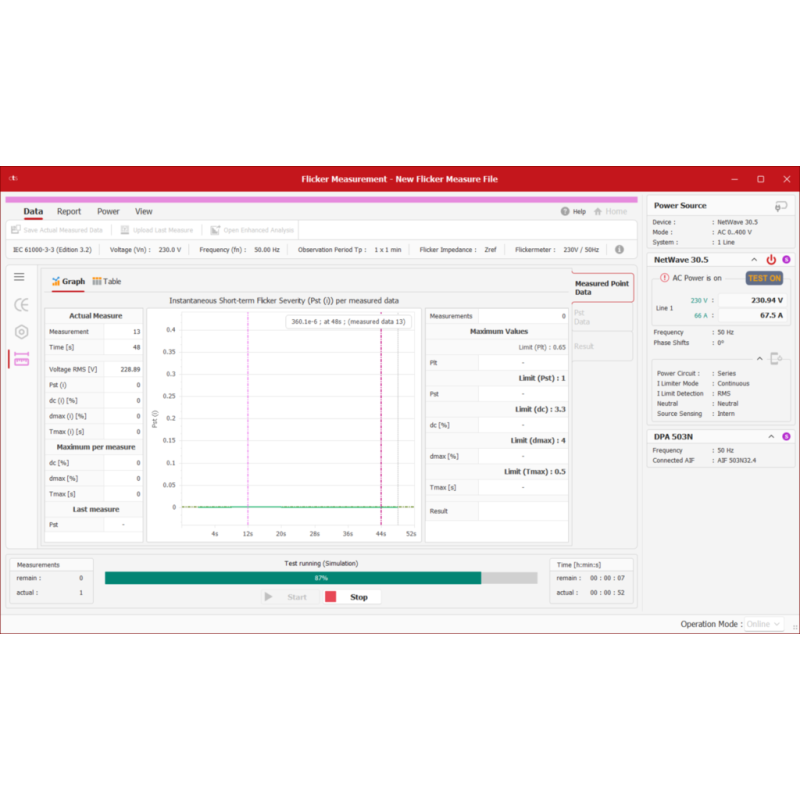

Pst, Plt, dc, dmax and Tmax evaluation

Overview +

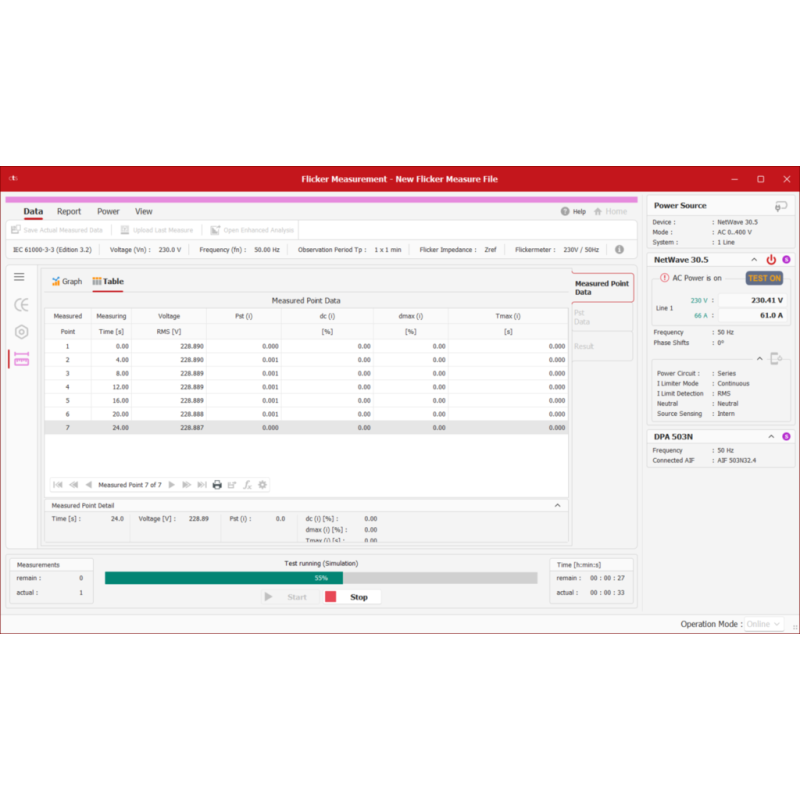

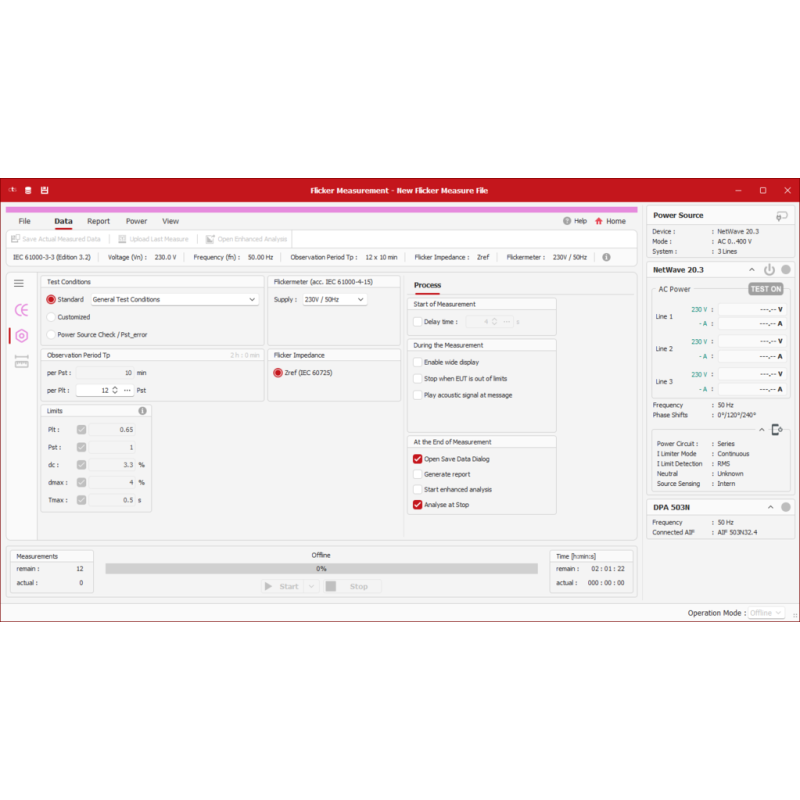

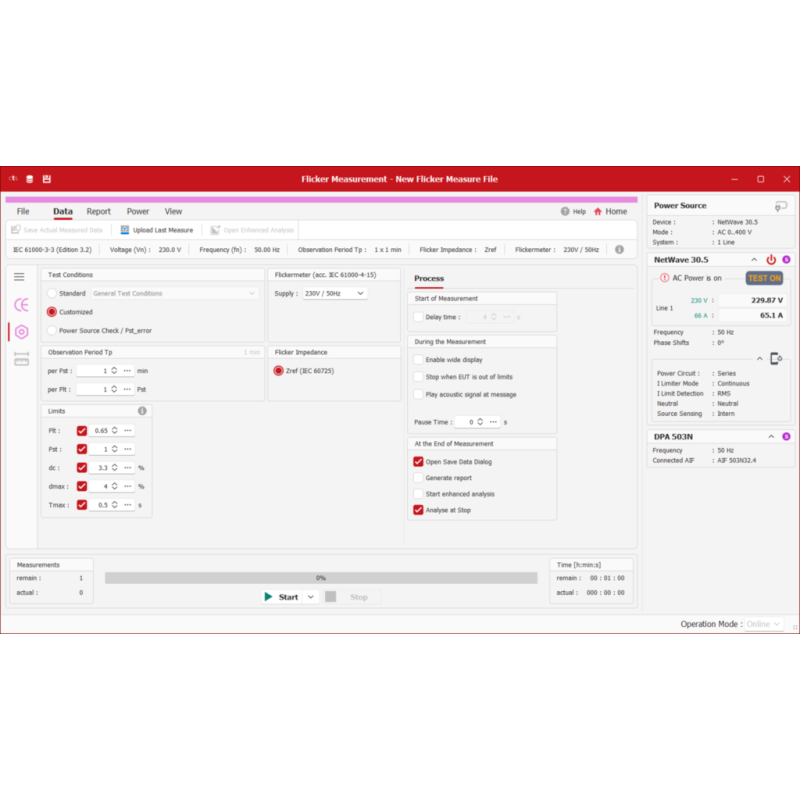

Compliance Test Studio 23 for Flicker measurement is the comprehensive and esasy to use software to perform flicker emission measurements with a DPA 50xN power analyzer. It supports you for bascis PASS / FAIL testing, report generation and enhanced analysis of measurement data. It is the ideal tool for compliance testing as well as measurement as part of the product develoment process.

Datasheets +
- CTS Flicker Measurement_datasheet_2025-07-09_EN

Standards +
IEC / EN Basic Standards+

IEC 61000-3-3 IEC 61000-3-11

Automotive OEM Specifications+

BMW GS 95002 Mazda MES PW 67602 GWT A D05-02 Hyundai Kia ES 96200-00 Ford FMC 1280 Mercedes MBN 10284-3 PSA B21 7112 PSA B21 7111 Rivian RTS-3653 Stellantis CS.00245 Fisker FSK-FM29-CES-014
