CTS 23 - Harmonics Measurement

Fully compliant Harmonics Emission Measurements
IEC 61000-3-2, IEC 61000-3-12 and others
ECE R10 and other manufacturer standards
Large library with pre-programmed tests

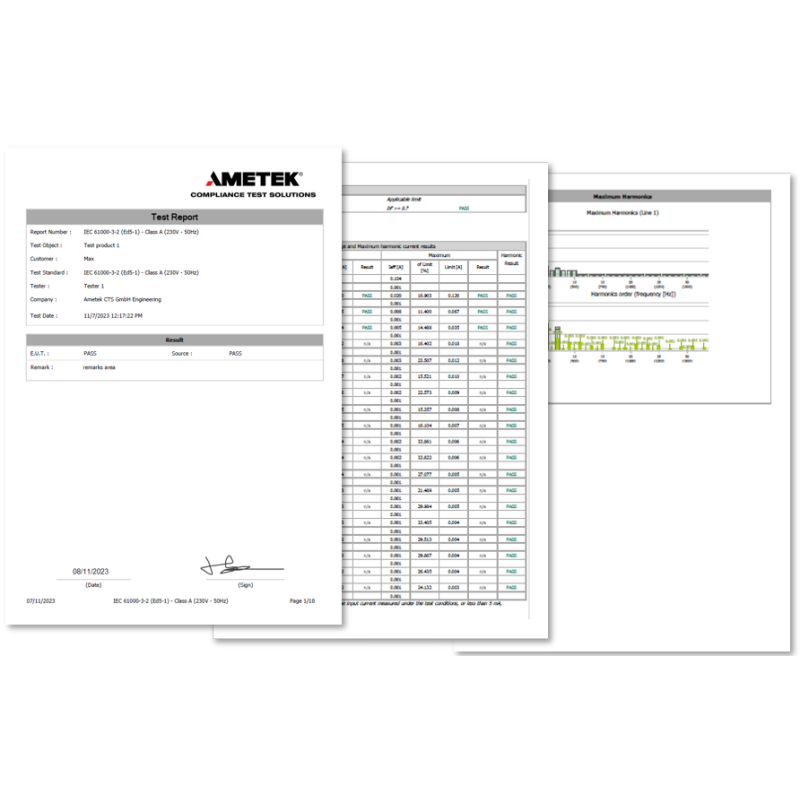

Easy generation of comprehensive reports

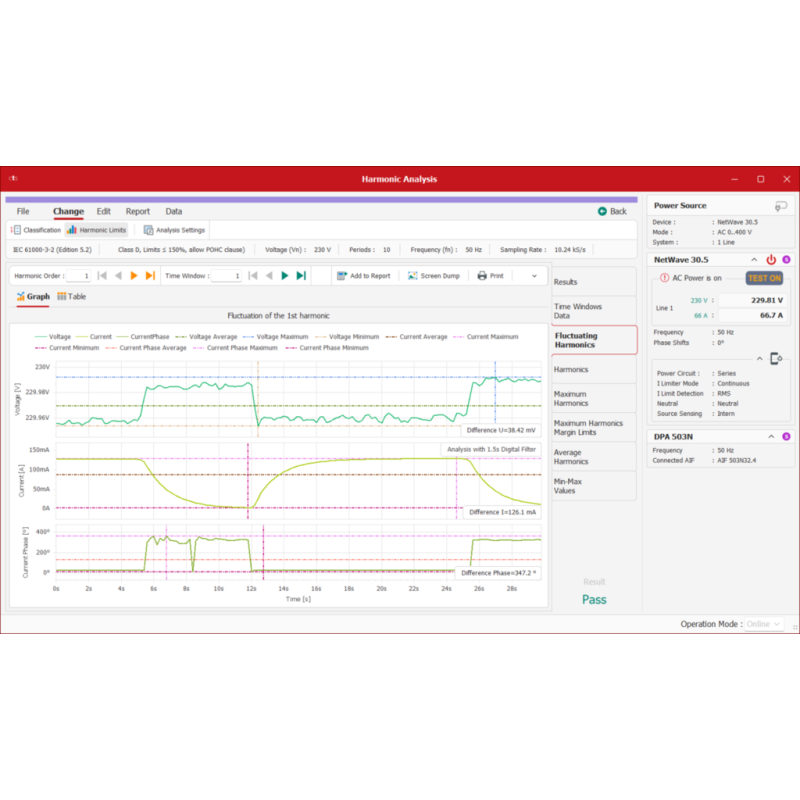

Enhanced analysis for root cause analysis

Overview +

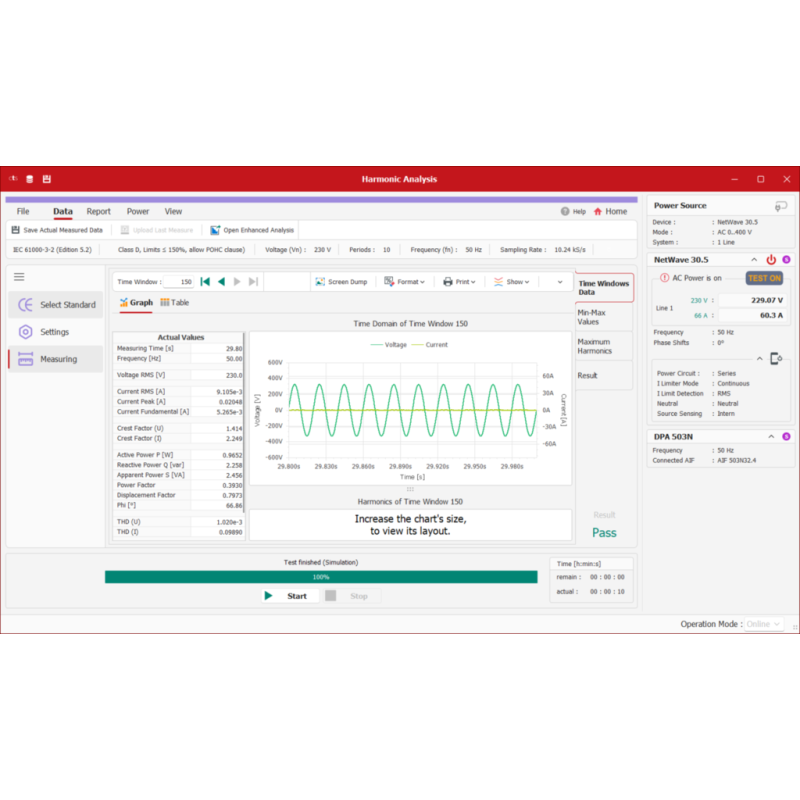

Compliance Test Studio 23 for Harmonics is the comprehensive and esasy to use software to perform harmoncis emission measurements with a DPA 50xN power analyzer. It supports you for bascis PASS / FAIL testing, report generation and enhanced analysis of measurement data. It is the ideal tool for compliance testing as well as measurement as part of the product develoment process.
