TC 5500

Frequency response 10 Hz to 500 kHz
Secondary saturation up to 50 A
Audio power 2 x 200 W
Turns ratio 2:1 step down
Freely configurable on primary/secondary; serial, parallel, single
Built-in non-inductive load resistor 0.5 ohm, 250 W

Overview +

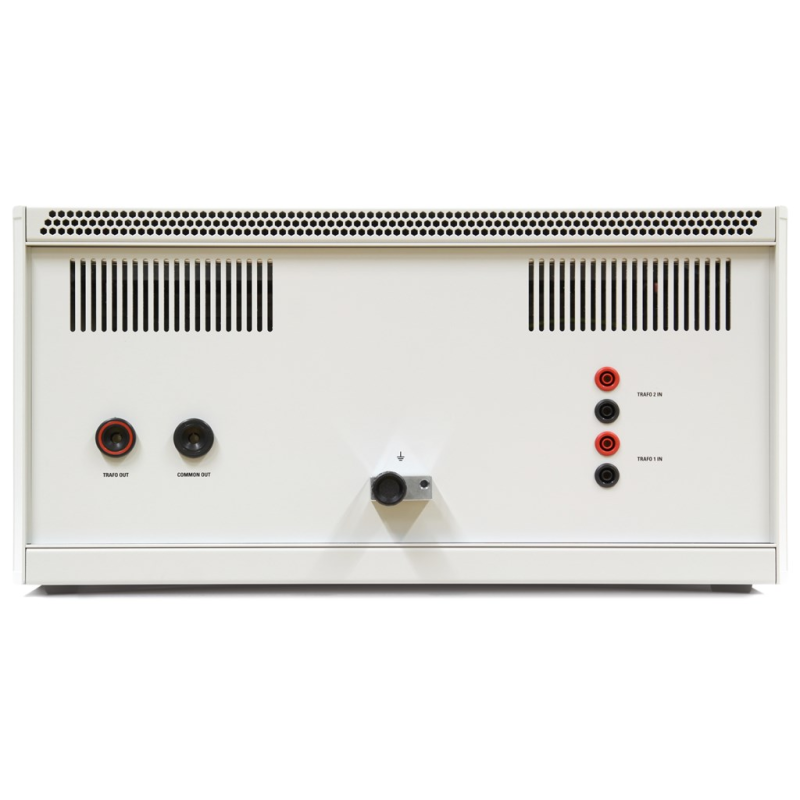

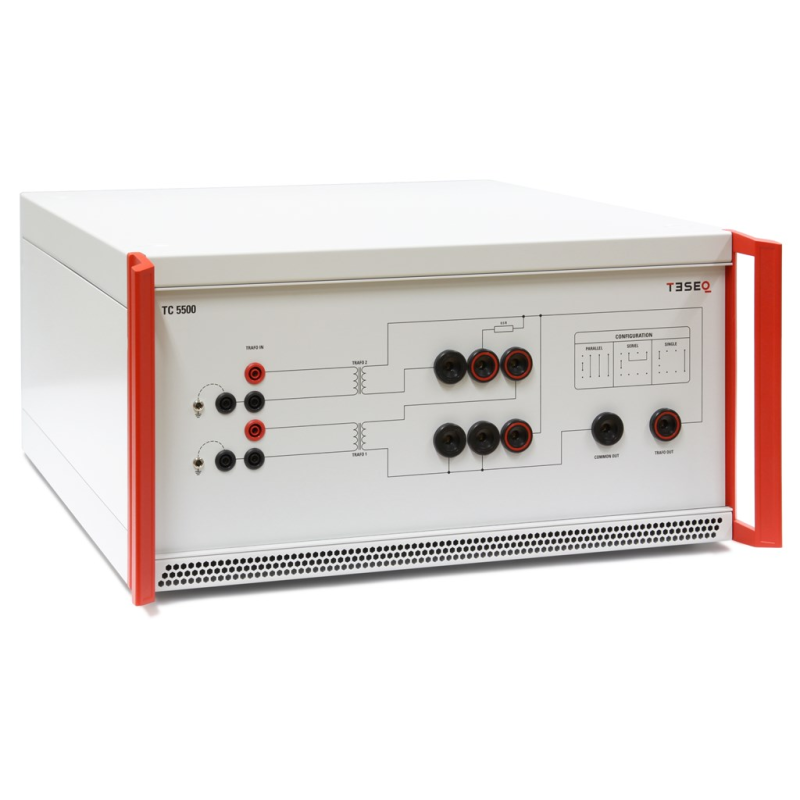

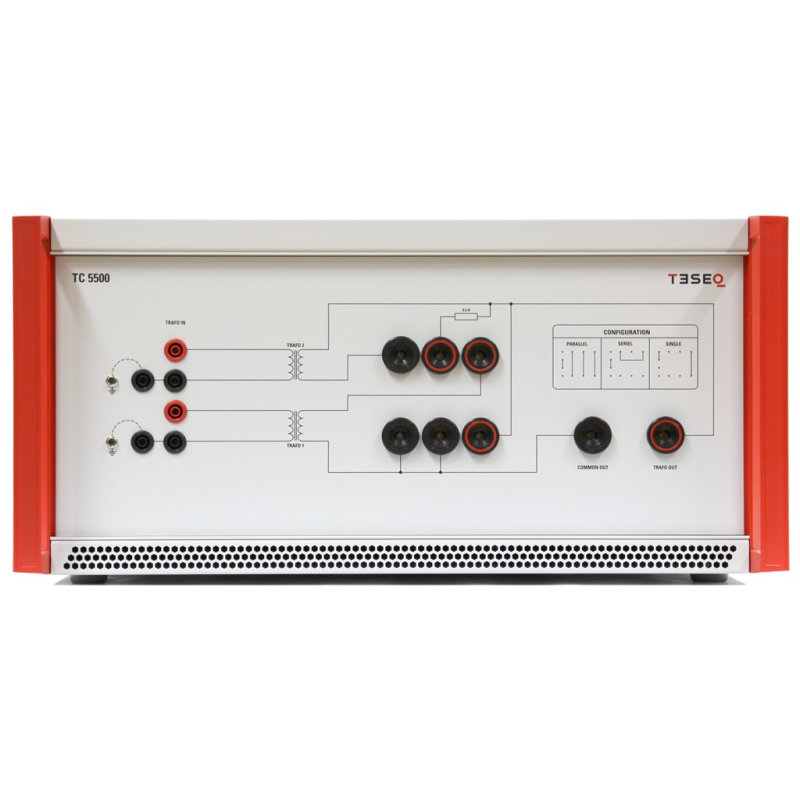

The TC 5500 is a standalone coupling network unifying two audio transformers being individually configurable for various test requirements (e.g. Ford FMC1278 and SAE J1113-2). It is used to apply the test signals to the lines under test via an audio transformer to perform ripple voltage tests and continuous or transient conducted immunity tests.

Standards +
Automotive Standards+

SAE J1113-2 ISO 11452-10

Automotive OEM Specifications+

Ford EMC-CS-2009.1 Mazda MES PW 67602 Ford FMC 1278 Jaguar JLR-EMC-CS Mitsubishi ES-X82115 Tesla TS-0000425-05
