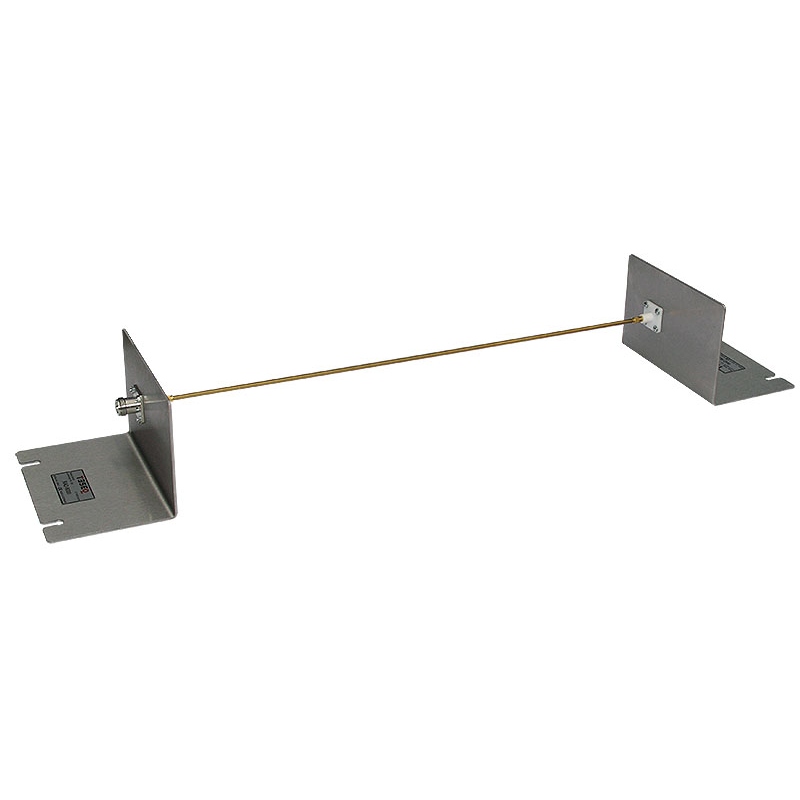

RAD 6000

50 cm long wire antenna
According Annex J of CISPR 25 edition 4
Frequency range 30 MHz to 1 GHz
N sockets

Overview +

The Annex J of CISPR 25 edition 4 contains requirements for the validation of the ALSE (absorber lined shielded enclosure) used for component tests. The standard describes two procedures - the reference measurement method and the modelled long wire antenna method, either of which can be used for validation. Teseq offers with RAD 6000 the radiation source for using the modelled long wire antenna method.

Datasheets +
- RAD_6000_datasheet_e02

Standards +
CISPR Standards+

CISPR 25
