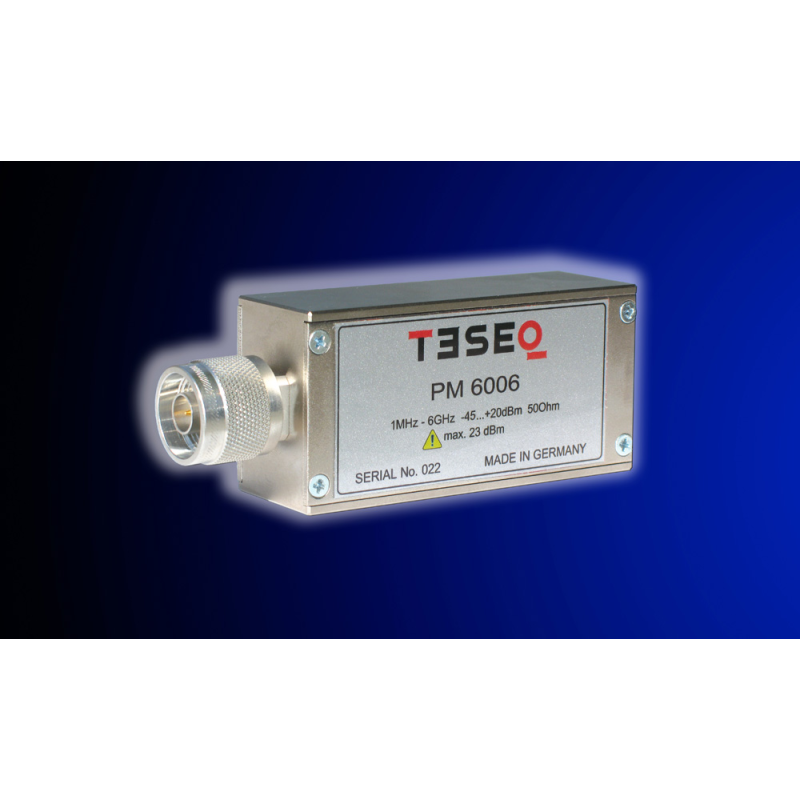

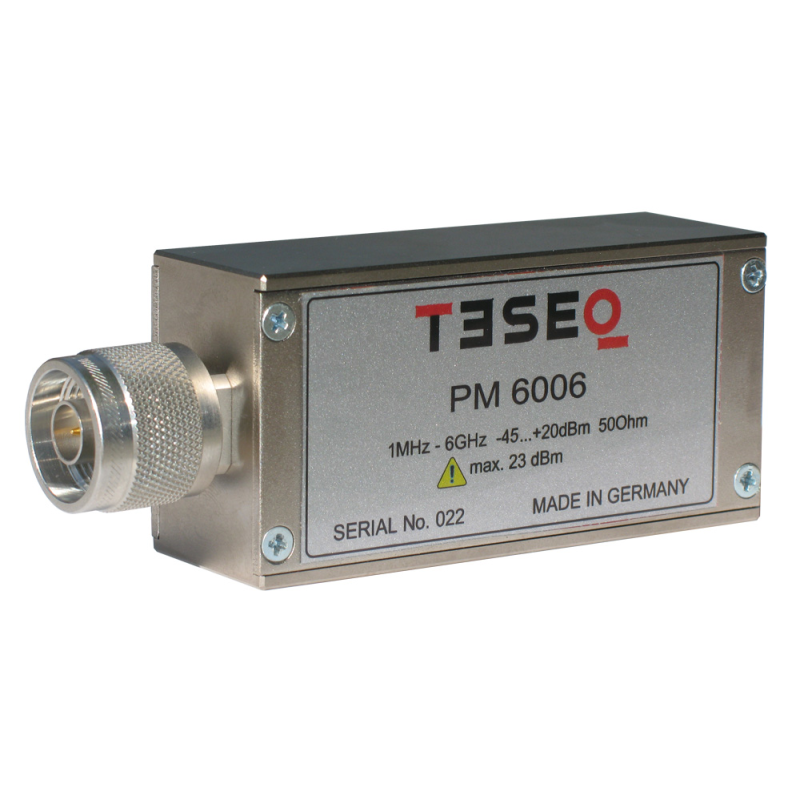

PMR 6006

  • Frequency range 1 MHz to 6 GHz
  • Linear measurement range -45 to +20 dBm
  • RMS power using log detector
  • Low voltage detection
  • Versions for direct connection to ITS 6006 or USB
  • Metal casing, ruggedly designed
  • Overview +

    EMC immunity testing makes very specific demands on RF power meters. A large dynamic range, fast measurements, rugged design and a frequency range that matches the application are some of the unique requirements for power meters in an EMC test environment. The PM 6006 power meter has been specially designed with these features. The PMR 6006 is designed for direct connection to the ITS 6006 Immunity Test System. Up to three power meters can be connected. The power can be read by either the ITS 6006 software utility or by optional Test House Software. Both programs allow mixing the PMU 6006 and PMR 6006 in systems of up to eight power meters.
