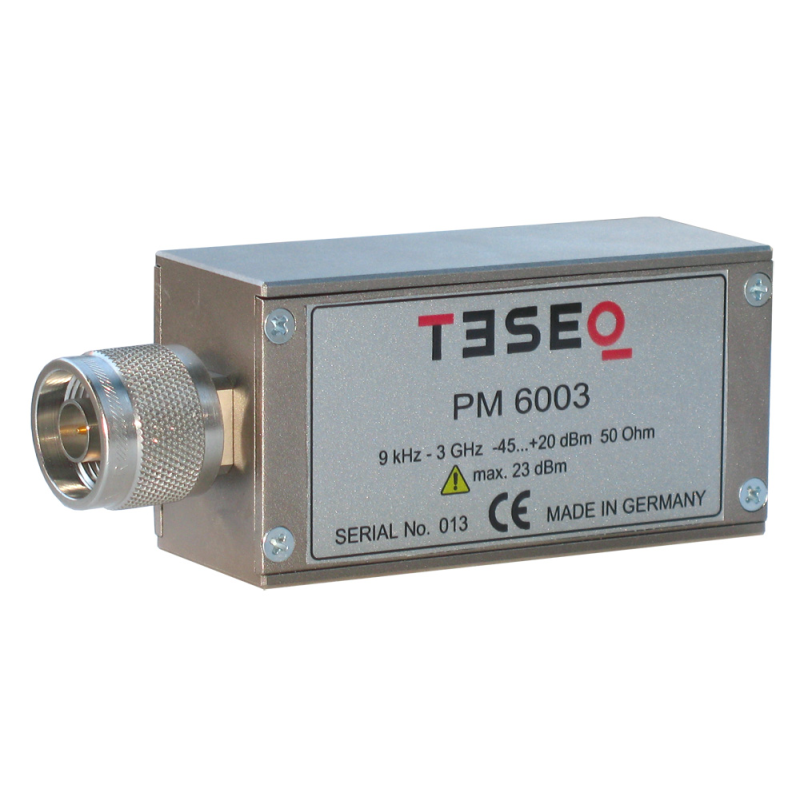

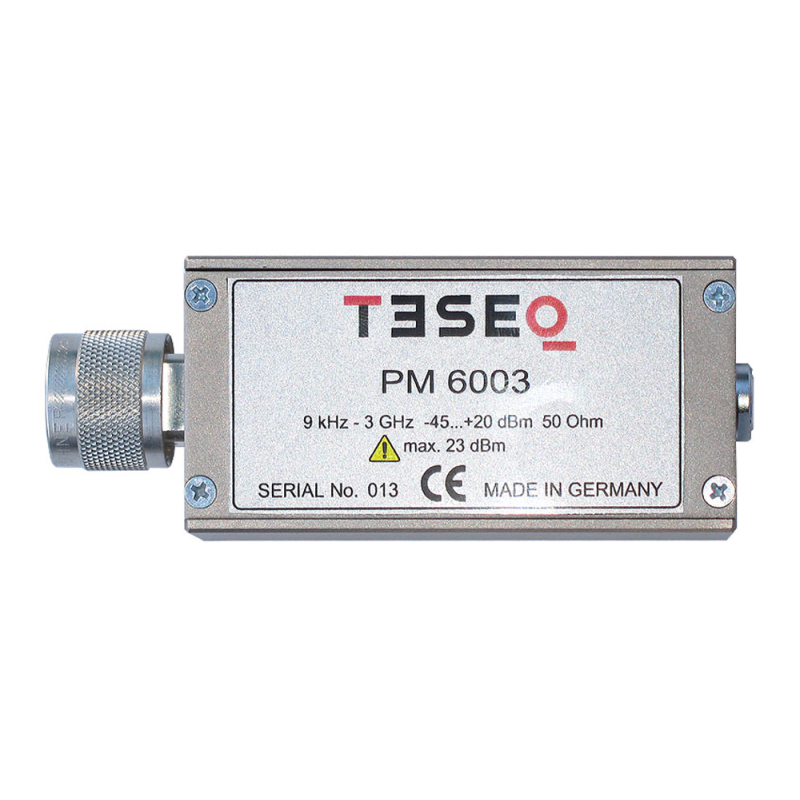

PMR 6003

  • Frequency range 9 kHz to 3 GHz
  • Linear measurement range -45 to +20 dBm
  • RMS power using log detector
  • Low voltage detection
  • For direct connection toITS 6006 or USB
  • Metal casing, ruggedly designed

  • Overview +

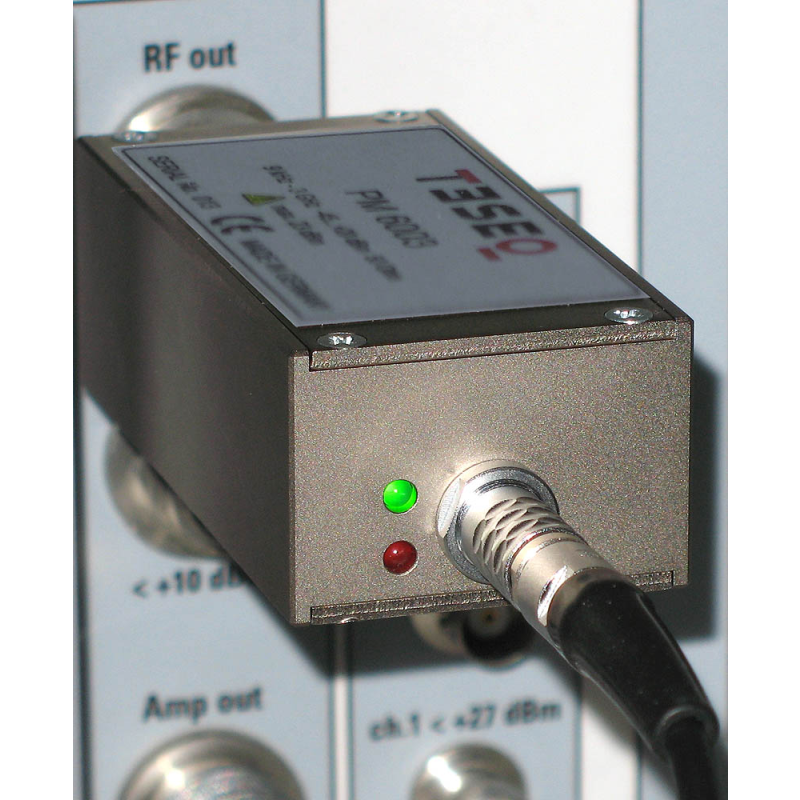

    EMC immunity testing makes very specific demands on RF power meters. A large dynamic range, fast measurements, rugged design and a frequency range that matches the application are some of the unique requirements for power meters in an EMC test environment. The PM 6003 power meter has been specially designed with these features. The PMU 6003 is designed for connection to the USB interface. It includes software that allows multiple power meter readouts at the same time. This device is powered from the USB interface. Drivers are available for optional Test House Software.
