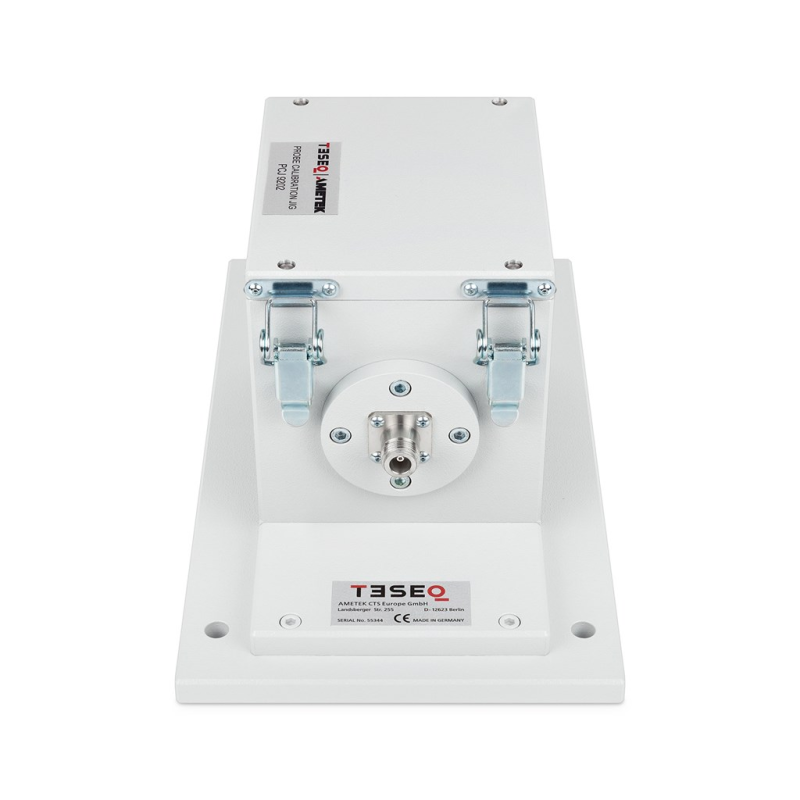

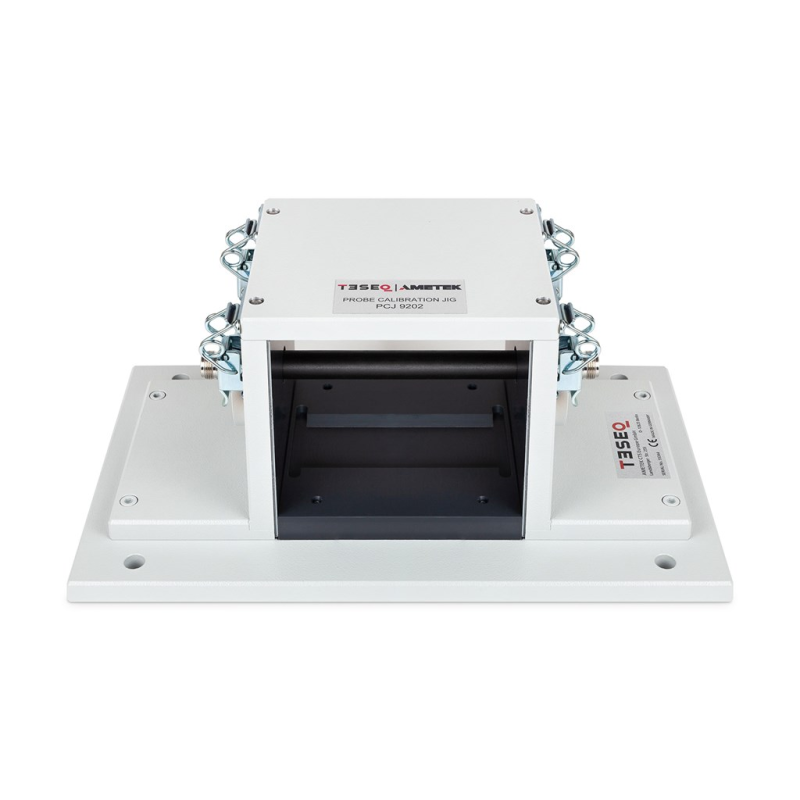

PCJ 9202

Calibration jig for BCI probe CIP 9138
Ruggedly designed

Overview +

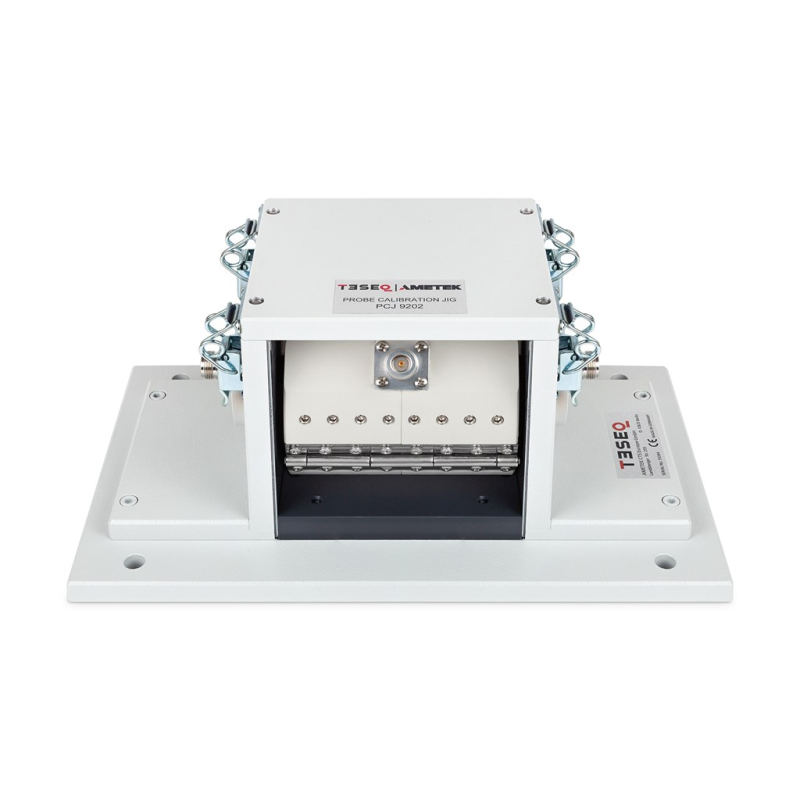

The PCJ 9202 is designed for test level setting in a calibration jig using the TESEQ BCI probe, CIP 9138. The combination of the BCI probe with jig can be used for various EMC test applications e.g., IEC 61000-4-6 or BCI applications.

Datasheets +
- PCJ_9202_datasheet E02

Standards +
Military and Aerospace+

MIL-STD 461
