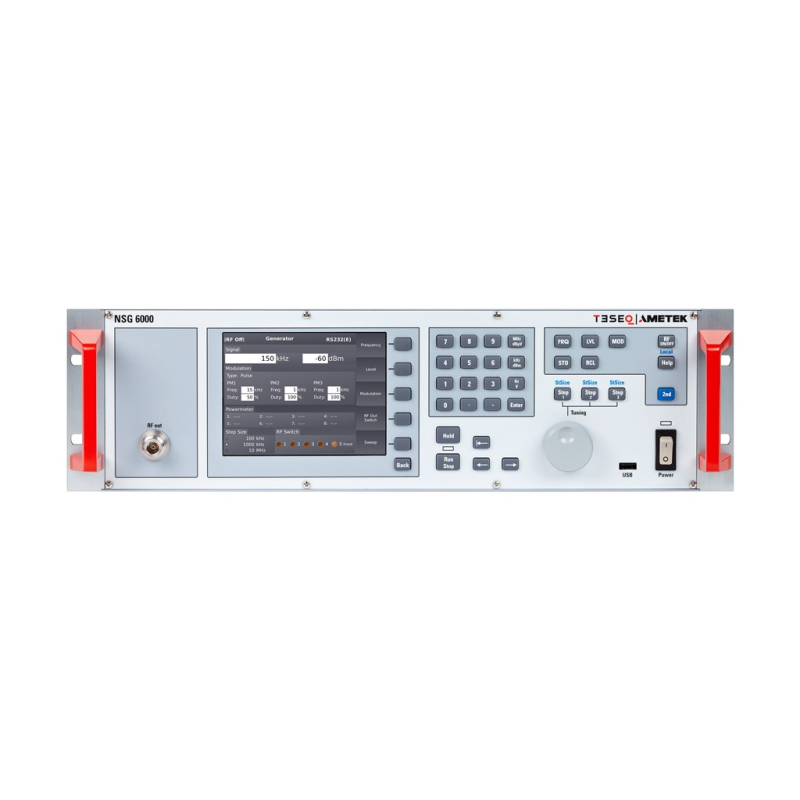

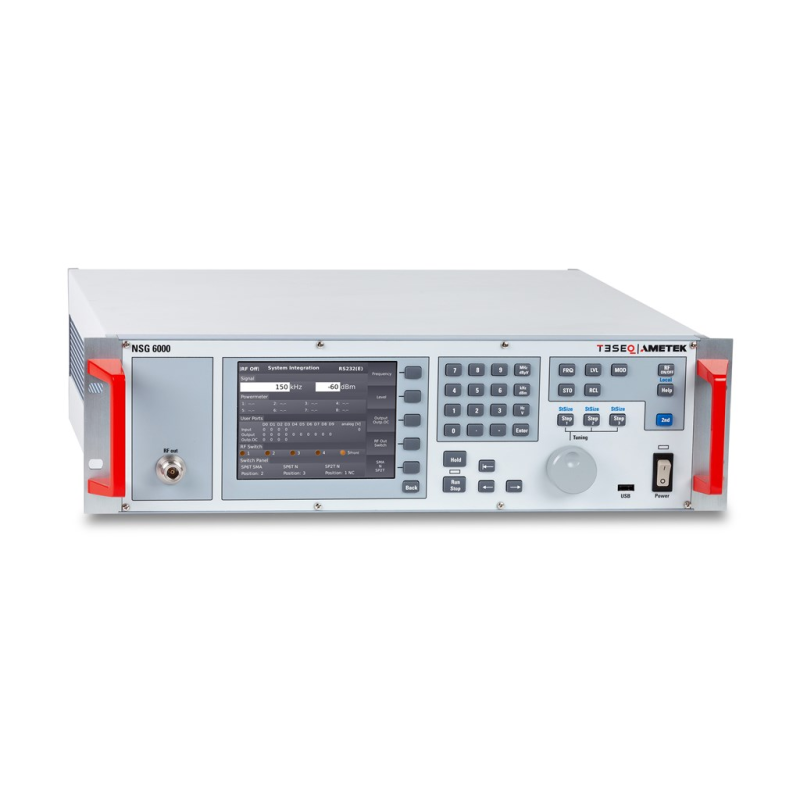

NSG 6000A

Integrated signal generator 9 kHz to 6 GHz
Integrated RF switch network
Integrated 3 freely configurable pulse modulators (1 μs to 200 s) for radar pulse profiles
External modulation inputs for AM and PM
Multiple EUT monitoring options
5.7“ TFT color display
Remote control via USB, RS232, LAN or optical

Overview +

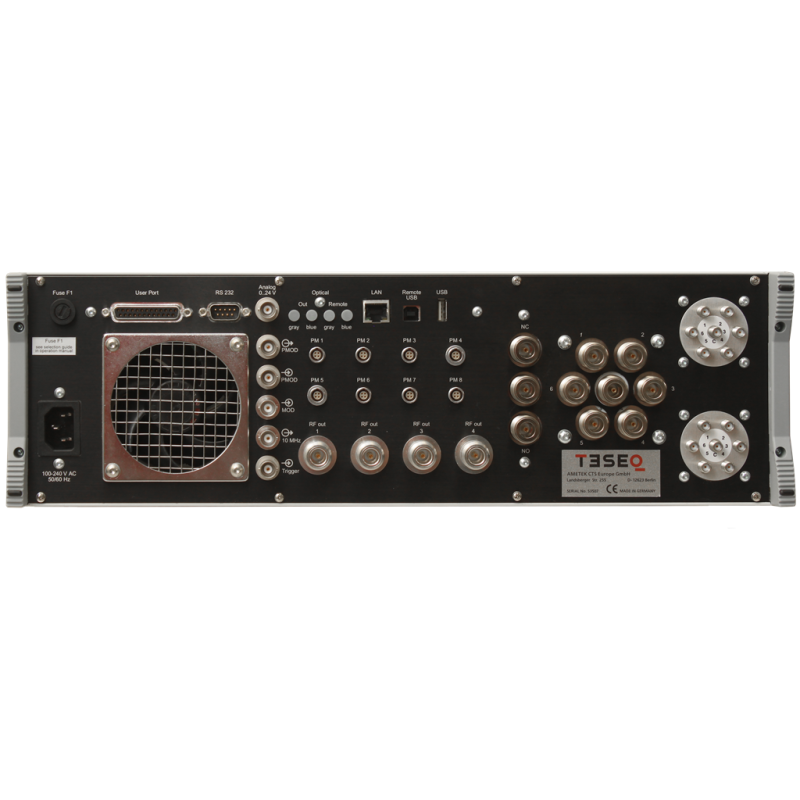

The NSG 6000 consists of an integrated RF signal generator, RF switch and EUT monitoring interfaces. The unit is designed for various EMC applications in the 9 kHz to 6 GHz frequency range. In addition to the generator, the system includes the AM and PM modulators necessary for EMC testing. The NSG 6000 includes 3 freely configurable pulse modulators (1 μs to 200 s) for radar pulse profiles as required e.g. by Ford FMC1278 or VW TL81000. The RF signal can be switched to one of five outputs, where up to five power amplifiers can be connected directly. Different RF switches are supplied for combining amplifiers into two antenna paths or other applications.

Datasheets +
- NSG 6000 Datasheet e02

Standards +
IEC / EN Basic Standards+

IEC 61000-4-3 IEC 61000-4-6 IEC 61000-4-20 IEC 61000-4-21

Automotive Standards+

ISO 11452-4

Military and Aerospace+

MIL-STD 461

Automotive OEM Specifications+

Ford FMC 1278
