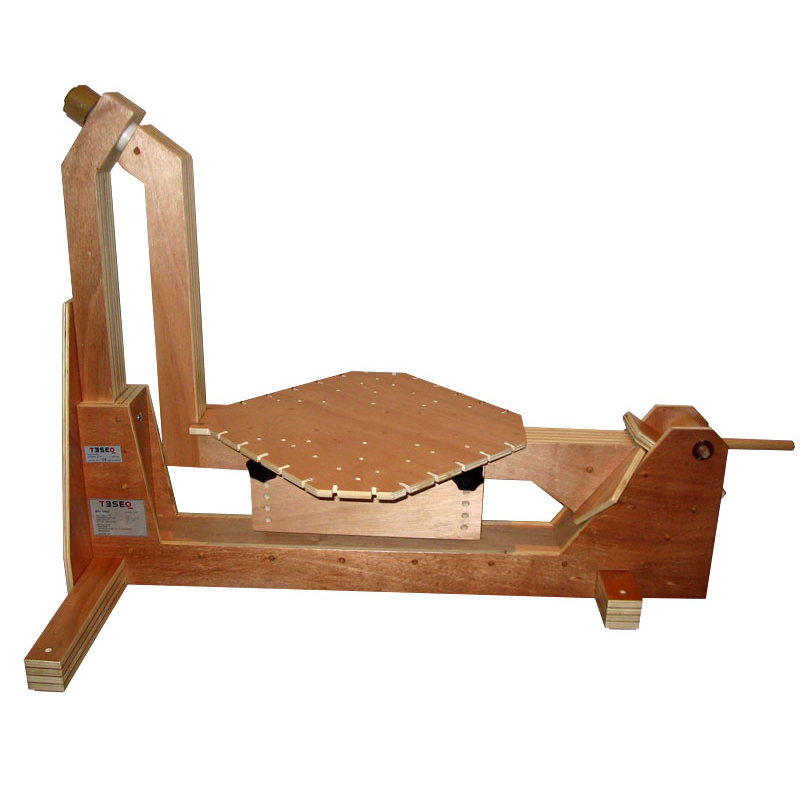

MPH

For easily rotating the EUT into three orthogonal positions
According to IEC/EN 61000-4-20
handoperated
Minimal RF reflections with virtually no metallic parts

Overview +

XYZ Manipulators are ideal for easily rotating the EUT into the three required orthogonal axis positions. The manual versions (MPH) are installed inside the cell while the remote controlled versions (MPC) have a motor underneath the floor of the cell. GTEMs can be supplied with removable panels to allow the future installation of XYZ Manipulators. The MPC requires factory installation.

Datasheets +
- MPH_MPC_datasheet_E04

Standards +
IEC / EN Basic Standards+

IEC 61000-4-20

Downloads +
- General (1) +
