MD 102A

Current target as per IEC/EN 61000-4-2
2Ohm impedance +/- 5%
Test voltage up to 30kV
Insertion loss +/- 0.5dB up to 1GHz
Insertion loss +/- 1.2dB up to 4GHz

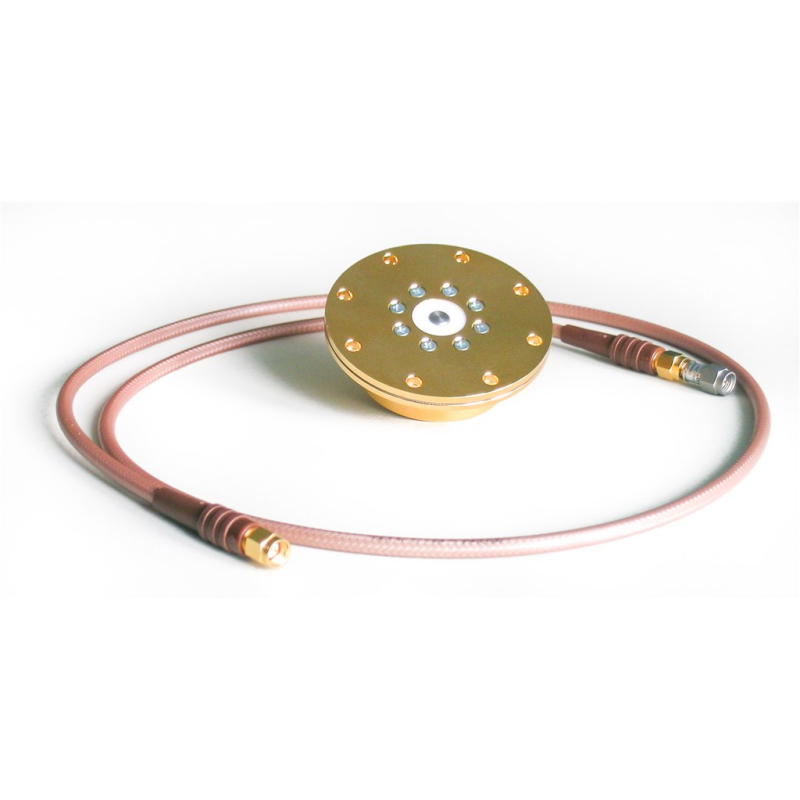

Includes 20dB attenuator and 1m cable RG400
50ohm Adapter line INA 102A available (option)

Overview +

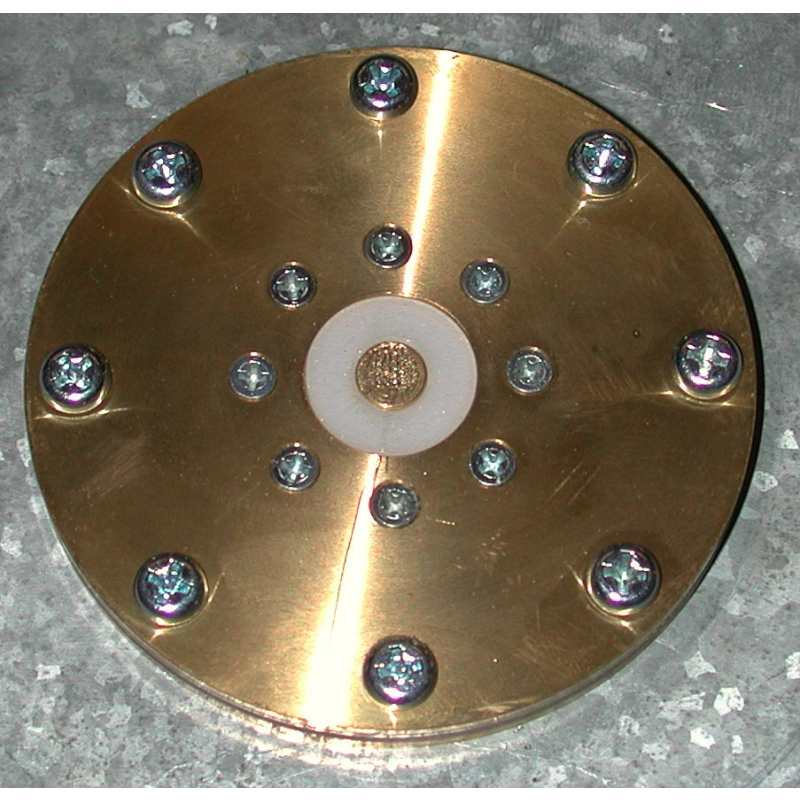

The MD 102A is a coaxial current target to monitor Electro Static Discharges built as required by EN/IEC 61000-4-2 Ed.2 standard. The target can be purchased as an option to the ESD generators, NSG 435, NSG 437, NSG 438 and more. It can be used for measurements up to 30kV. Additional attenuators are available to match the output signal with the input capability of the oscilloscope.

Standards +
IEC / EN Basic Standards+

IEC 61000-4-2

Automotive Standards+

ISO 10605
