MBT 2 ( f.MDS21)

  • Hand-operated slide lane for absorbing clamps
  • Disturbance power measuring, according to CISPR 16-2-2
  • Needed to find the standing wave
  • Overview +

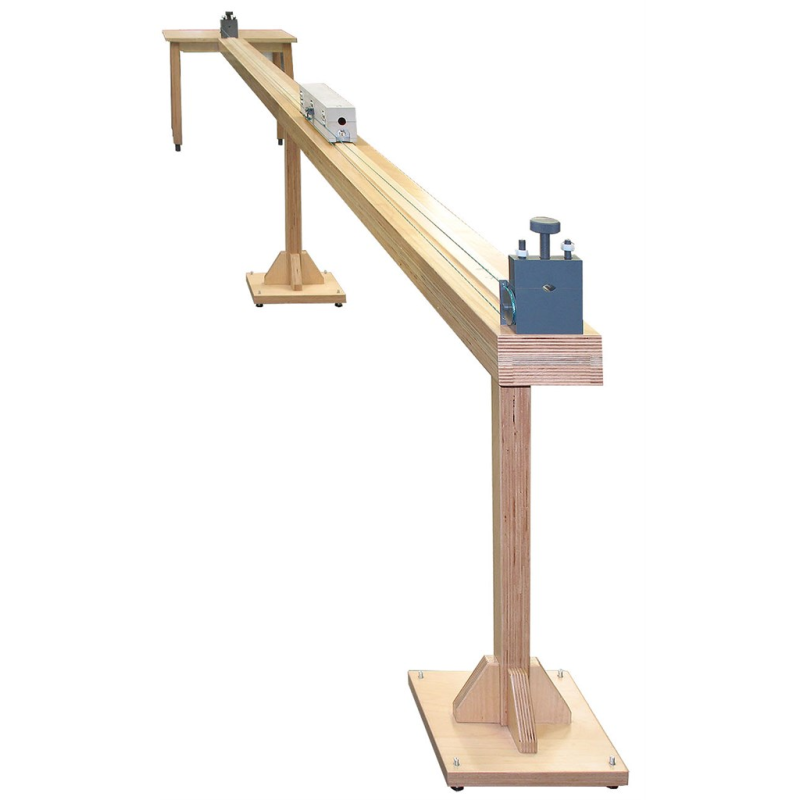

    The MBT 2 is a hand-operated slide lane for absorbing clamp MDS 21B. It consists of the slide lane, a table for the EUT and a drive unit. The drive unit enables the tester to move the MDS 21B manually along the lane. There are almost no metallic parts used for the construction. The design allows adaptation to other absorbing clamps.
  • Datasheets +

  • Standards +


    • CISPR Standards+
