icd.control

Easy to use interface for standard tests

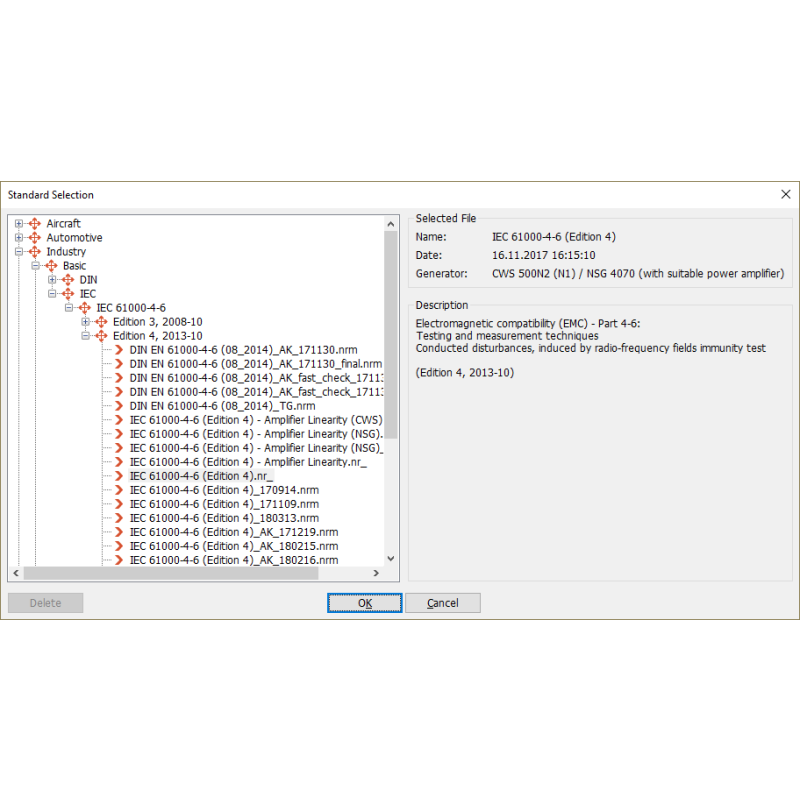

Library of tests included in the software
Easy to generate and customize test reports

Overview +

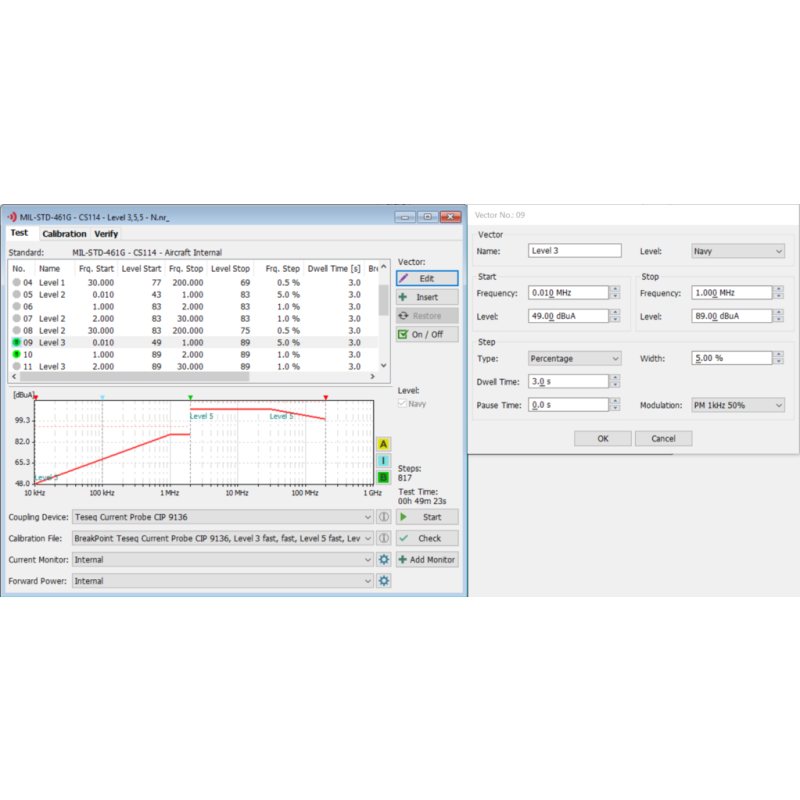

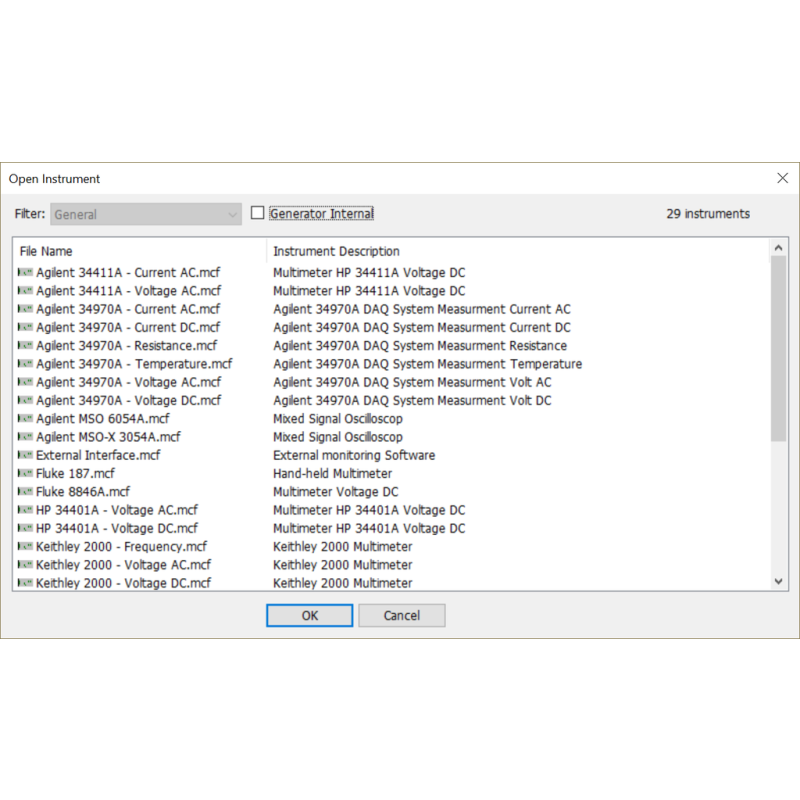

The icd.control software is operated under Microsoft Windows and allows for remote operation of AMETEK CTS signal generators used for EMC testing. The software can be used in simulation mode and test mode, where simulation mode allows user to get familirized with the software for testing in EMC environment. It is easy to make your first tests quickly with the Standard Test. The Vector Test is structured so it stands to your highest requirements on the most variable test-procedures. The software can produce a test, save it and generate reports. Activating of the buttons Stop, Pause and EVENT also produces occurrences/events during testing. All occurrences are listed in the report with the topical parameters and can be provided with additional commentaries.

Datasheets +
- icd_control_datasheet_220713

Standards +
IEC / EN Basic Standards+

IEC 61000-4-3 IEC 61000-4-6 IEC 61000-4-21

Military and Aerospace+

MIL-STD 461 RTCA/DO 160

Automotive Standards+

ISO 11452-11 SAE J1113-27
