HV-AN 200

5 μH AN/LISN as defined in
High voltage part of CISPR 12 (draft), CISPR 25, ECE No. 10 R05 / R06, ISO 11452-1 and ISO/DTS 7637-4
ISO 7637-2

Overview +

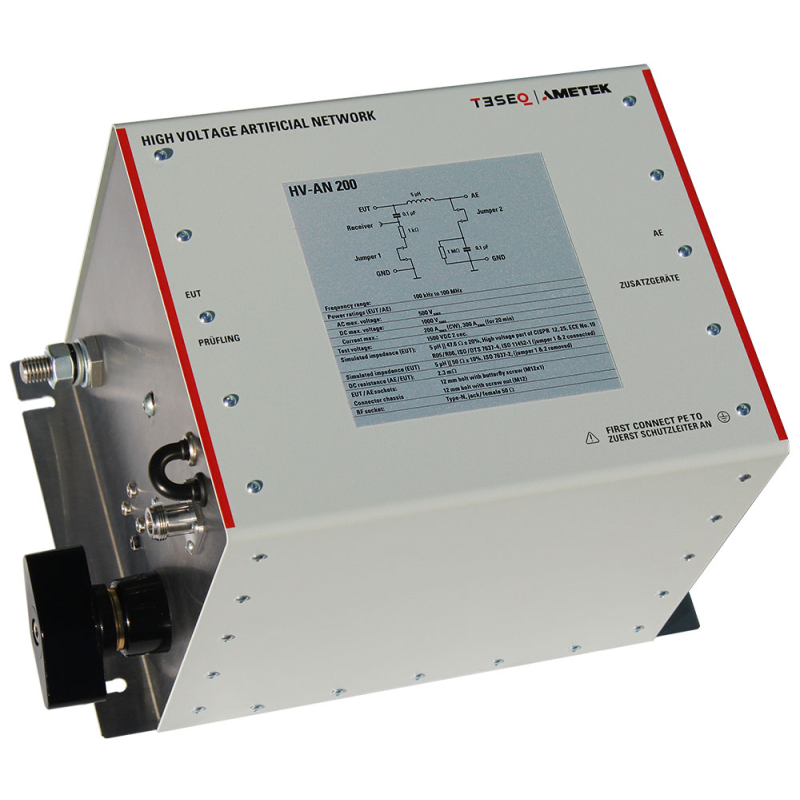

The artificial network HV-AN 200 offers a solution for high current and high voltage connections to the EUTs. The AN is used to simulate the impedance of a vehicle harness to determine the behavior of EUT and meet the requirements of ISO 7637-2 and the HV part of CISPR 12 (draft), CISPR 25, ECE No. 10 R05 / 06, ISO 11452-1 and ISO / DTS 7637-4.

Datasheets +
- HV_AN_200_datasheet_e01
- SME_HV_AN_1uH_200_datasheet_e01
- CAS_HVAN_datasheet_e02

Standards +
CISPR Standards+

CISPR 12 CISPR 25

Automotive Standards+

ISO 7637-2 ISO 7637-4 ISO 11452-4
