HV-AN 1uH-200-VW80300

1 μH HV-AN with 200 Amps
HV-AN as defined in VW 80300
Solution for high current and voltage

Overview +

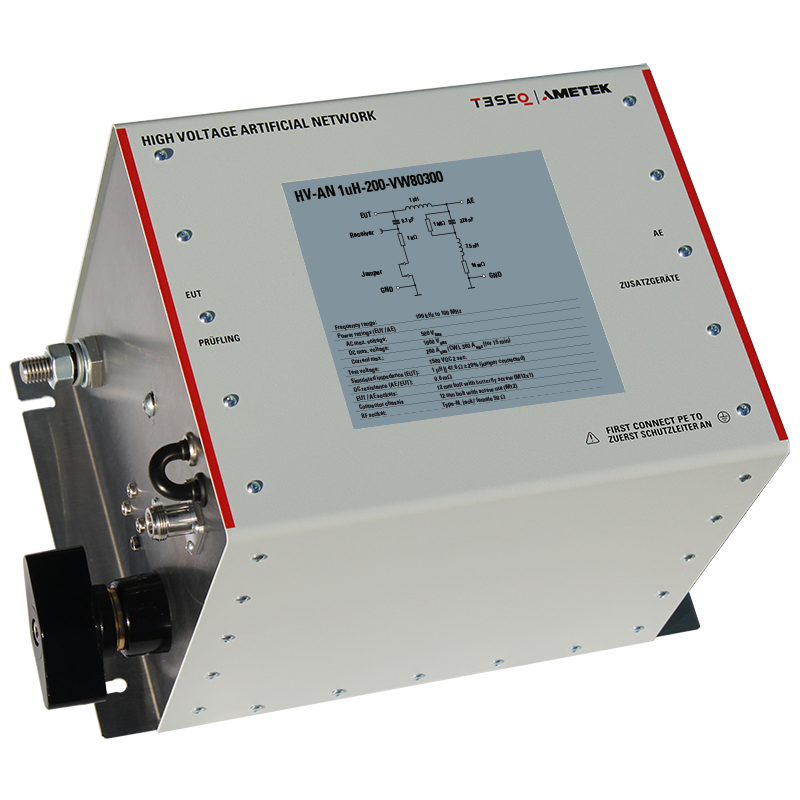

The artificial network HV-AN 1uH-200-VW80300 offers a solution for high current and high voltage connections to the EUTs as proposed in VW 80300. The AN is used to simulate the impedance of a vehicle harness to determine the behavior of EUT.

Datasheets +
- HV_AN_1uH_200_VW80300_datasheet_e01
- SME_HV_AN_1uH_200_datasheet_e01
- CAS_HVAN_datasheet_e01
