HV-AN 1u-250 ISO21498

1 uH | 1 uF HV-AN / LISN
according ISO 21498-2, MBN 11123, BMW GS 95023 and similar
up to 250 A EUT current
modular concept based on modules
compact and air-cooled

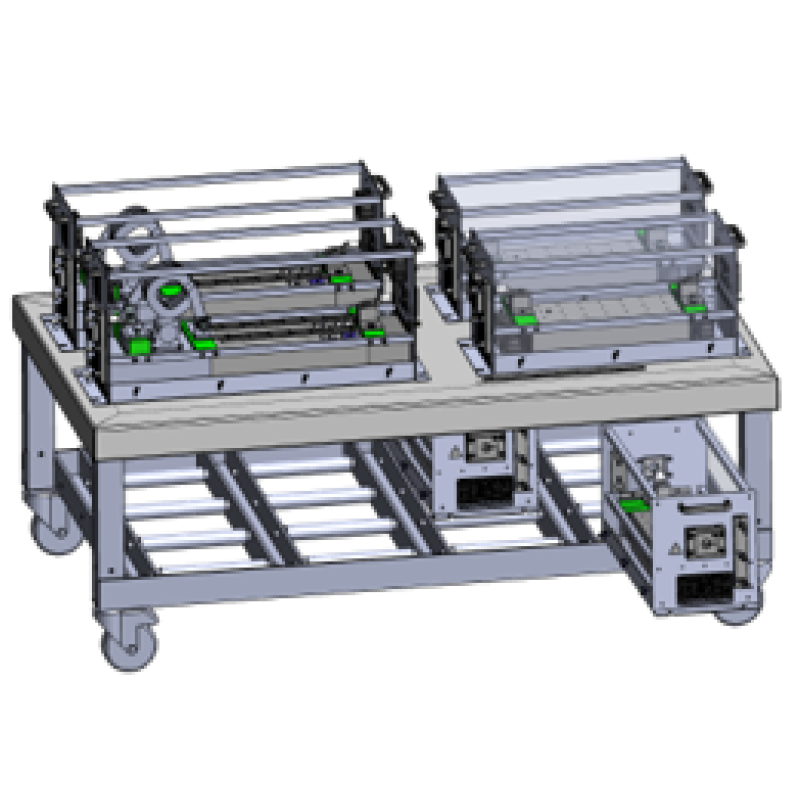

trolley available as accessory

Overview +

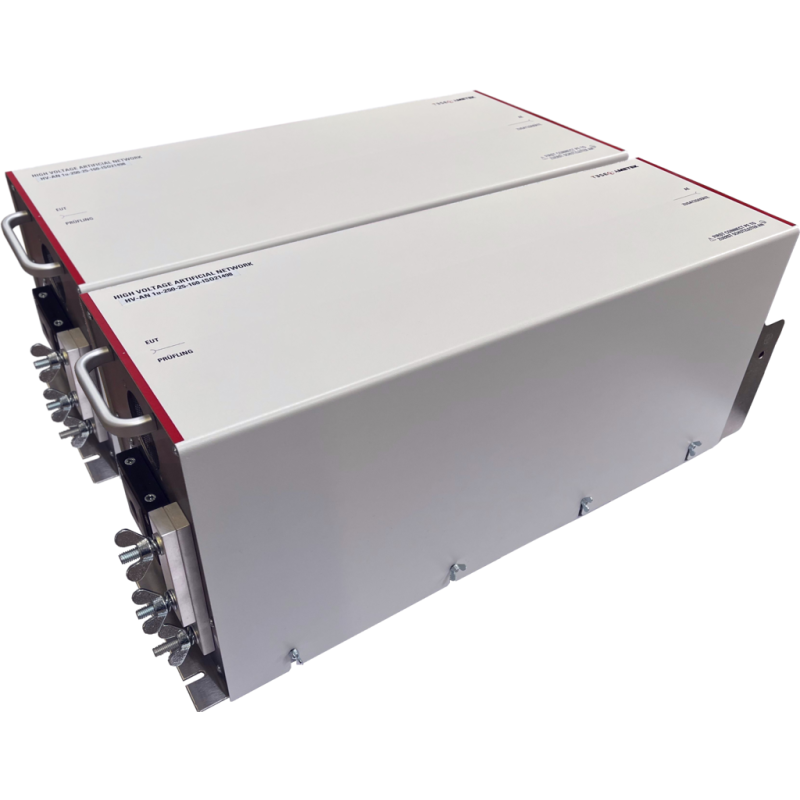

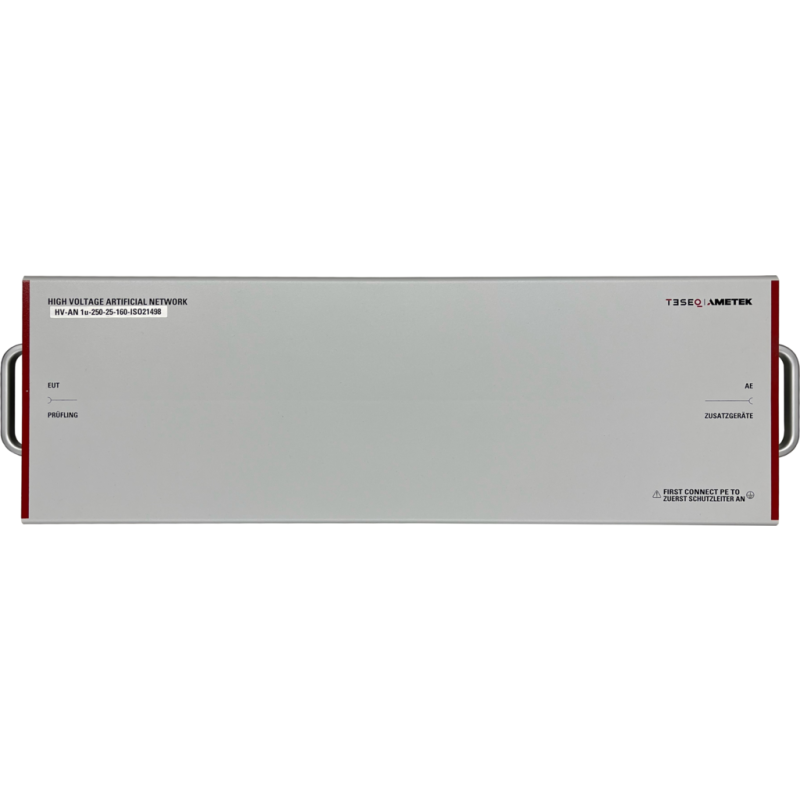

The HV-AN 1u-ISO 21498 is an artificial network used for electric vehicle high voltage component tests. The AN is used to simulate the impedance of a vehicle harness to determine the behavior of EUT and meet the requirements of ISO 21498-2, MBN 11123, BMW GS95023 and similar standards. The HV-AN 1u-ISO 21498 is built on a modular concept. Each module incorporates the 1 uH inductance, 1 uF capacitor and one resistance value. A pair of two HV-AN 1u-ISO21498 forms a complete set for HV+ and HV- supply lines to high voltage components. Separate sets are available for each resistance value and EUT current.

Datasheets +
- HV-AN 1u-250 ISO21498_datasheet_2022-11-11_EN

Standards +
Automotive Standards+

ISO 21498

Automotive OEM Specifications+

Mercedes MBN 11123 BMW GS 95023
