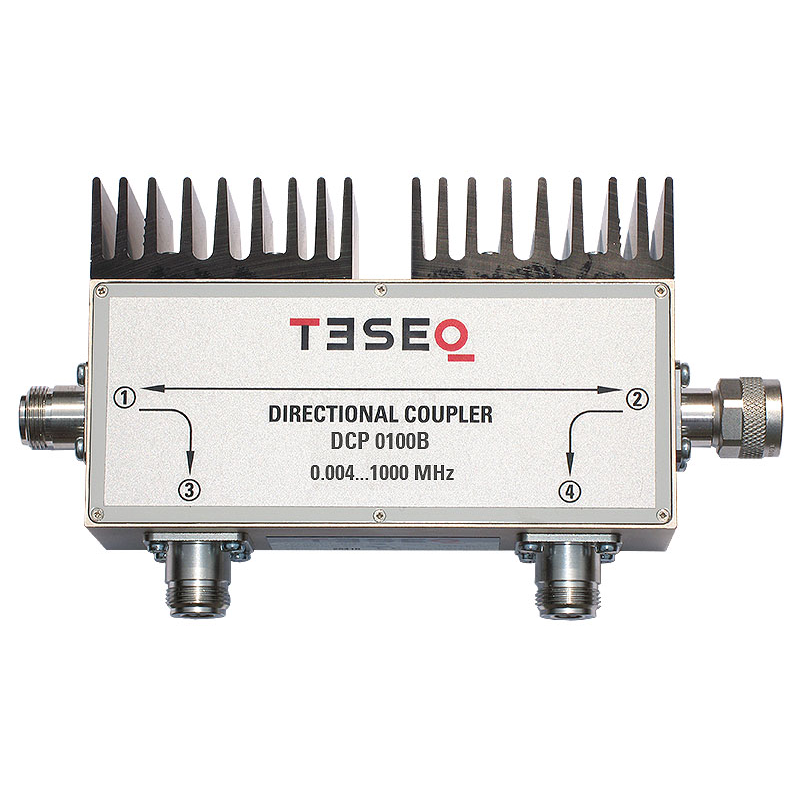

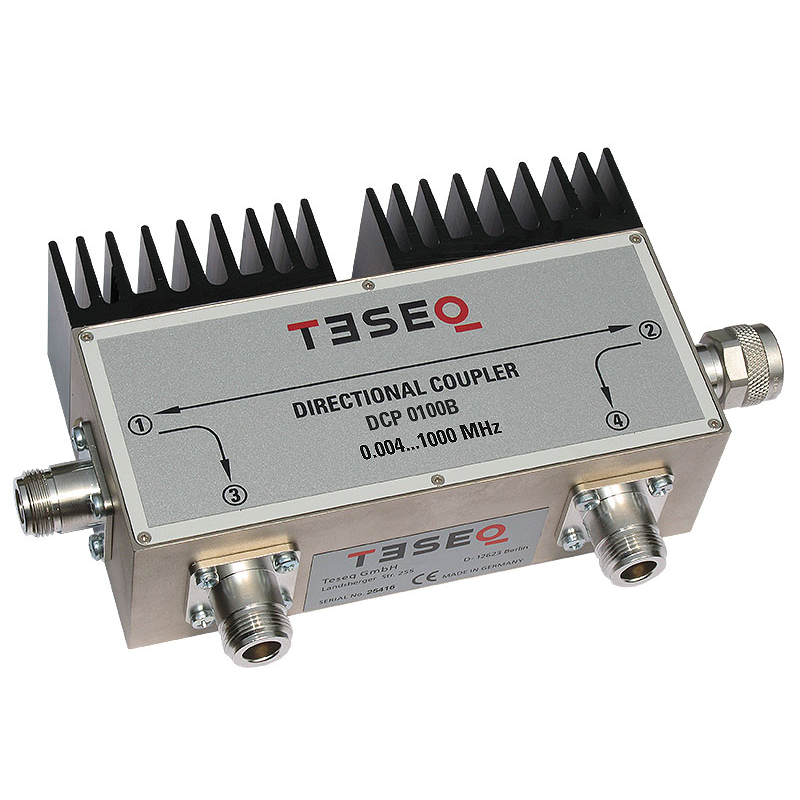

DCP 0100B

Dual directional coupler
Wide frequency range
High power handling

Overview +

This high power dual directional coupler has been specifically designed for EMC immunity applications.

Datasheets +
- DCP_0100B_datasheet_e220524

Standards +
IEC / EN Basic Standards+

IEC 61000-4-3 IEC 61000-4-6 IEC 61000-4-20

CISPR Standards+

CISPR 24

IEC / EN Generic Standards+

EN 61000-6-1 EN 61000-6-2

IEC / EN Product Standards+

IEC 60533 IEC 60601-1-2 IEC 61326

Military and Aerospace+

MIL-STD 461 RTCA/DO 160

Automotive Standards+

ISO 11452-2 ISO 11452-3 ISO 11452-4 ISO 11452-5 SAE J1113-4 SAE J1113-24
