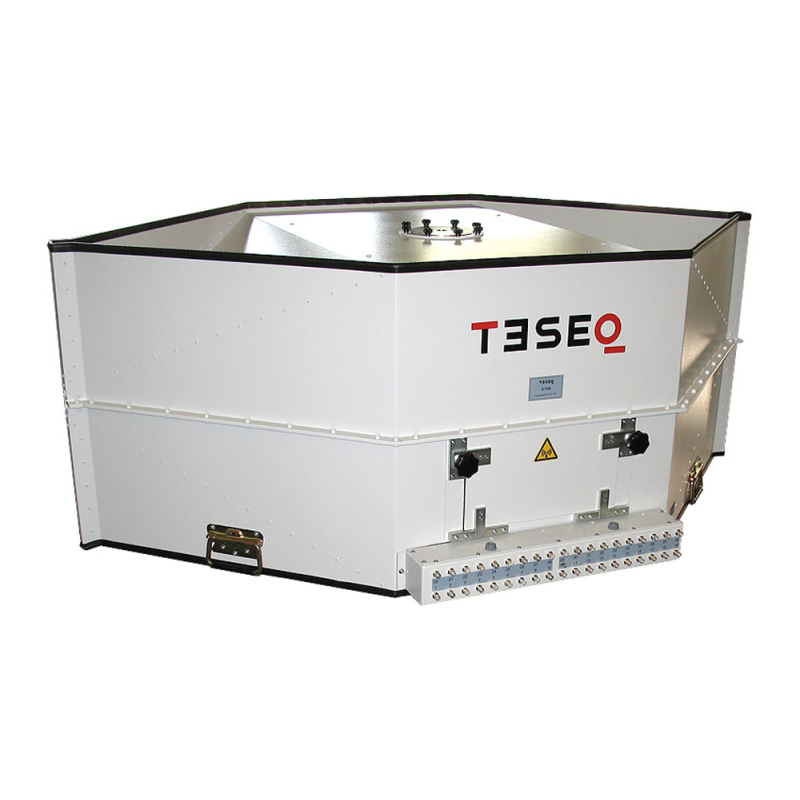

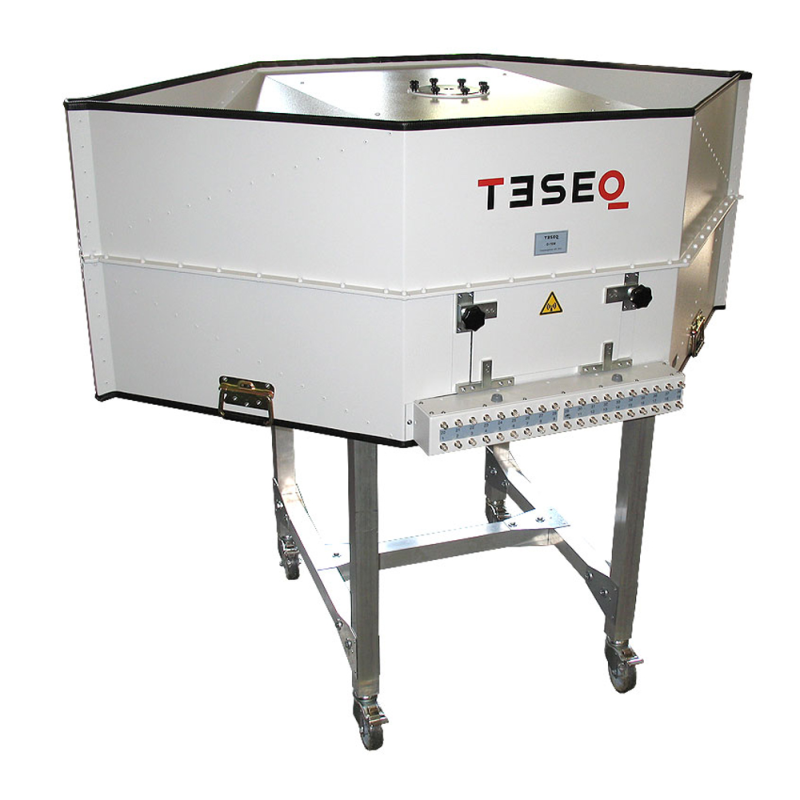

D-TEM

  • TEM cell meets ISO 11452-3 and CISPR 25
  • EMC tests for vehicle components immunity to RF fields
  • 300 mm septum height
  • Up to 1 kW input powe

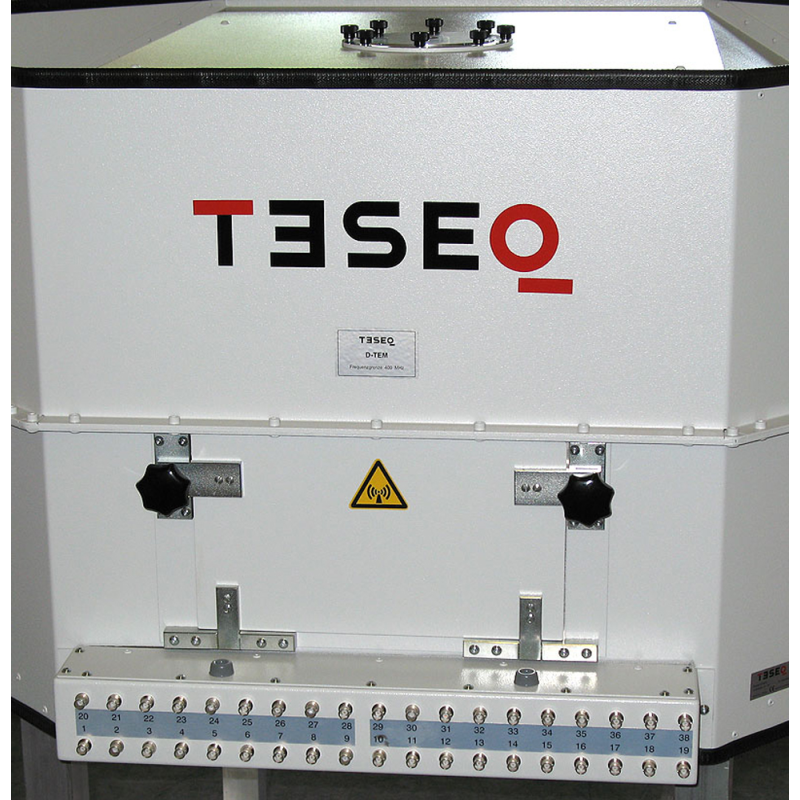

  • Access for field probes from the top of the cell

  • Overview +


    The transversal electromagnetic mode which can developed in the DTEM cell, provides the opportunity for doing EMC testing inside the cell. In principle, the DTEM cell is a coaxial line expanding rectangularly and with planar septum. The geometrical dimensions having a line impedance of Z = 50 Ω. At the end, the line is matched by a 50 Ω termination. Typical for this cell is the low power request for high field strength values.
