  • Frequency range 1 MHz to 1 GHz
  • Max. cable diameter 10 mm
  • Cable termination for radiated emission and immunity tests
  • Ideal for testing in GTEM cells
  • Overview +

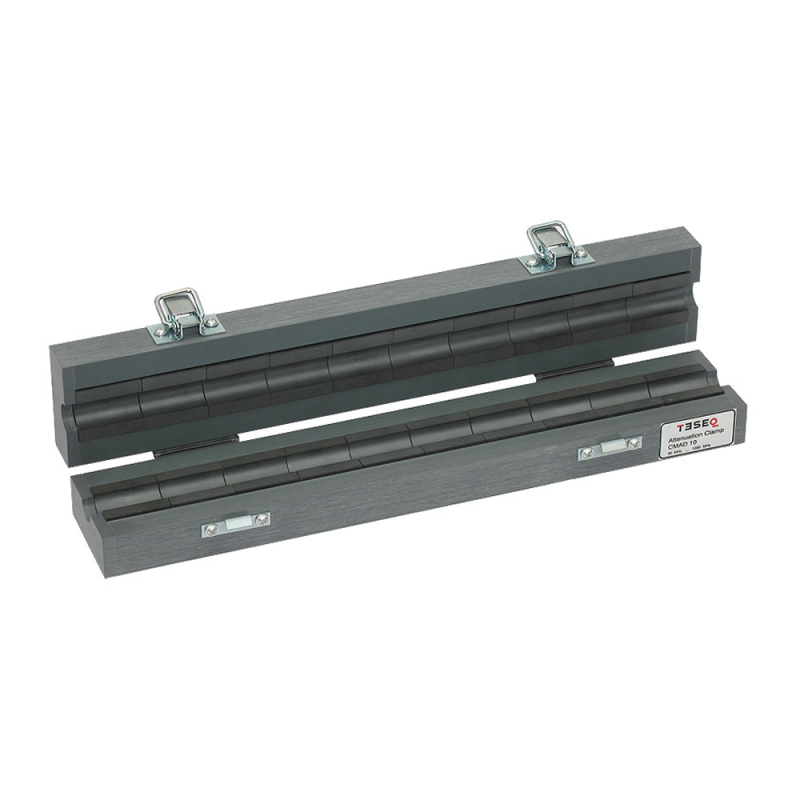

    The CMAD 10 improves the asymmetrical line termination in the frequency range above 1 MHz and improves measurement reproducibility. The CMAD needs to be clipped on lines leaving the test chamber or GTEM cell. The CMAD 10 is designed to accept cable sizes of up to 10 mm and was developed for CISPR 22 Edition 4.0 2003. The small design allows using in GTEM cells.
  • Datasheets +

  • Standards +

    • IEC / EN Basic Standards+
