CAS CDND19

Designed for CDND M316-2
Verification of differential-mode (DM) impedance and decoupling factor according IEC/EN 61000-4-19

Overview +

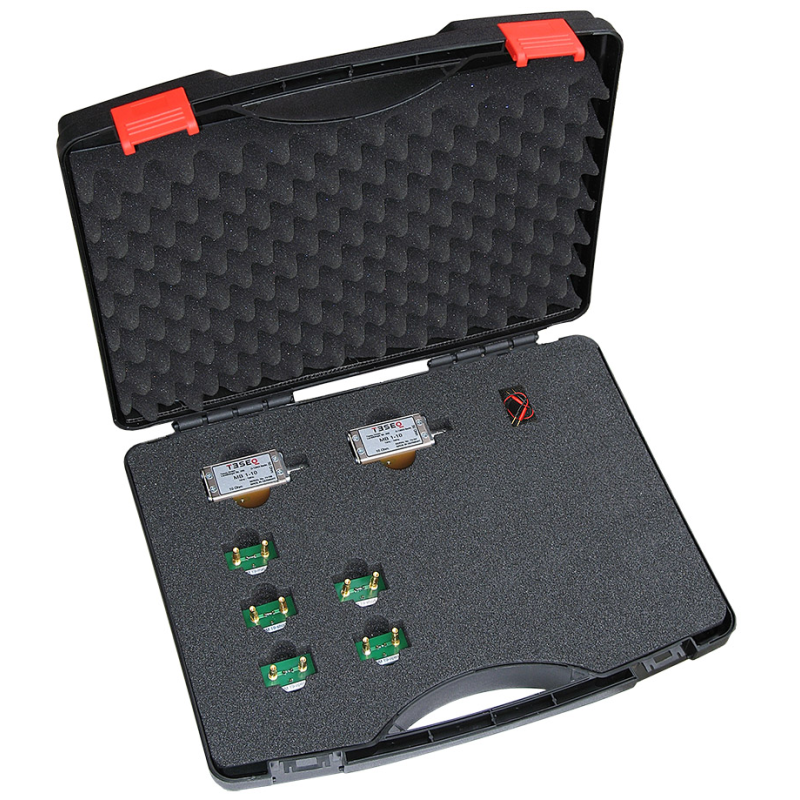

The product CAS CDND19 is made for function tests and verification measurements on CDND M316-2. Measuring parameters are differential-mode (DM) impedance and decoupling factor. Measurements on CDND are defined in IEC/EN 61000-4-19. The CAS CDND19 contains two measuring baluns with a balanced output of 10 Ω (1 mm banana socket) and adapters for establishing the connection to banana sockets with 19 mm distance.

Datasheets +
- CAS_CDND19_datasheet_e01

Standards +
IEC / EN Basic Standards+

IEC 61000-4-19 IEC 61000-4-31
