CAS BAL4070

Designed for function tests, verification measurements and / or calibration on BAL 4070
Set includes adapter, balun and cables

Overview +

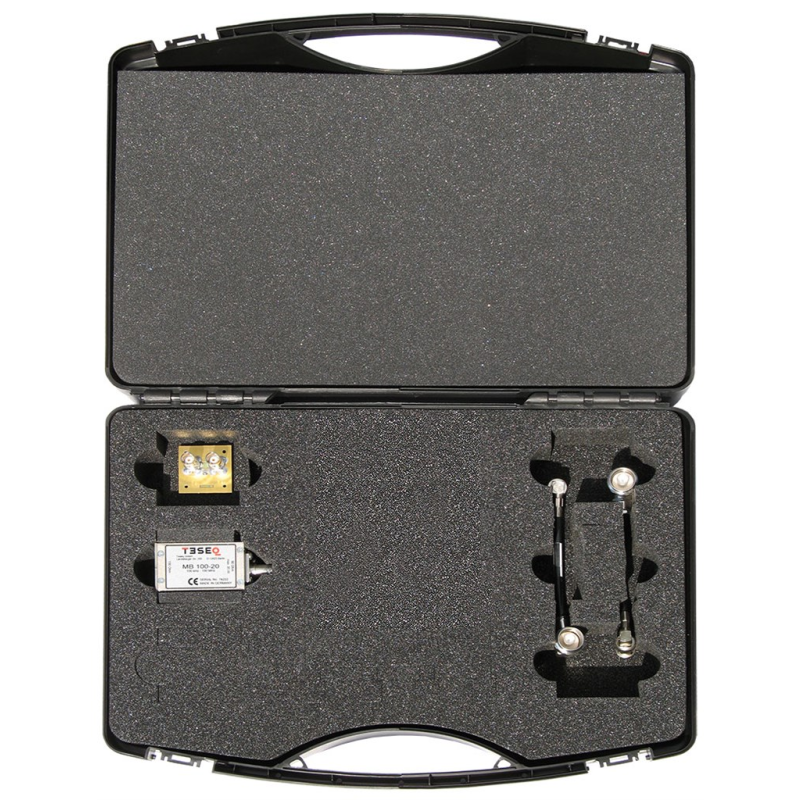

The product CAS BAL4070 is made for function tests, verification measurements and / or calibration on BAL 4070. Measuring parameter is the coupling attenuation S21. The CAS BAL4070 contains the measuring balun MB 100-20, adapter AD 1 mm / BNC and two RF cables LE 265.

Datasheets +
- CAS_BAL4070_datasheet_e01

Standards +
Automotive Standards+

ISO 7637-4
