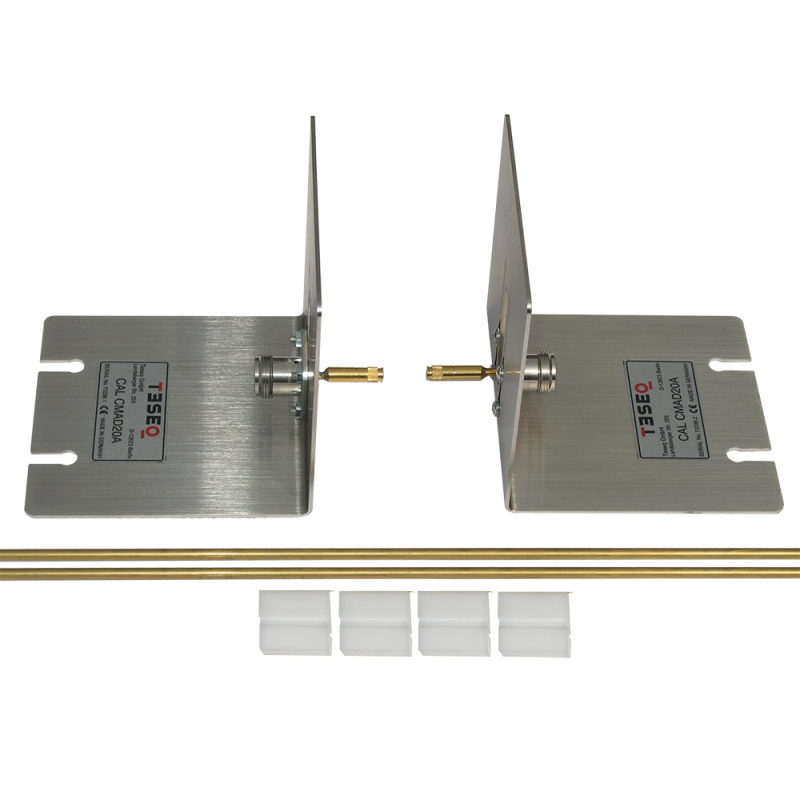

  • Fixture for S-parameter measurement of KEMZ 801, KEMZ 801A, KEMZ 801B, KEMA 801, KEMA 801A, KEMA 801B
  • Conform with IEC 61000-4-6 Ed. 4
  • Adjustable for different heights
  • Overview +

    Calibration fixture for KEMZ/KEMA 801 IEC 61000-4-6 (EN 61000-4-6) defines three basic types of transducer used for the injection of test signals into the equipment under test (EUT). The basic requirement is to inject a known level of RF signal onto the cable of the EUT at each test frequency and to determine whether the EUT continues to function correctly. In order to do this, it is necessary to decouple the auxiliary equipment (AE) from the test signal. If this is not achieved it is difficult to know whether any fault is due to a failure of the EUT or the AE. Whilst the coupling/decoupling network (CDN) is one of the best ways to achieve this test and indeed it is mandatory to use them under some circumstances, it is not always possible to use a CDN.
