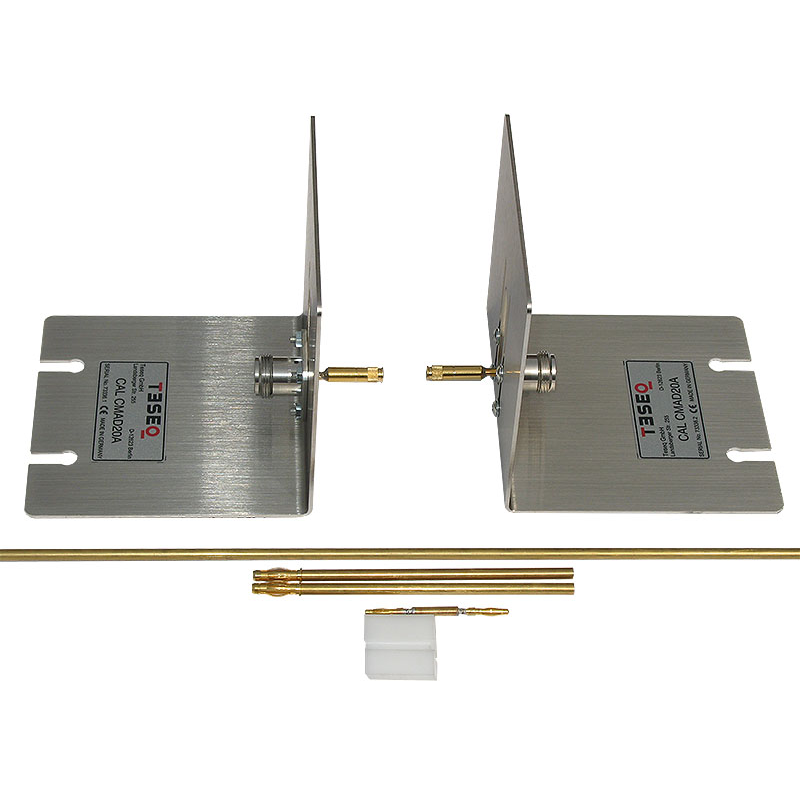

CAL CMAD20A

  • Calibration fixture for CMAD 20A, CMAD 20B, Lüthi FTC 40x15 E according CISPR 16-1-4
  • Fixture for S-parameter measurement of CMADs
  • Conform with CISPR 16-1-4
  • Adjustable for different heights

  • Overview +


    Calibration fixture for CMAD 20A, CMAD 20B, Lüthi FTC 40x15 E according CISPR 16-1-4 The through-reflect-line (TRL) calibration method is recommended for measuring the S-parameters of CMADs, as described in CISPR 16-1-4. In combination with a vector network analyzer offers the calibration fixture CAL CMAD 20A to perform the four calibration configurations of the TRL calibration method.
