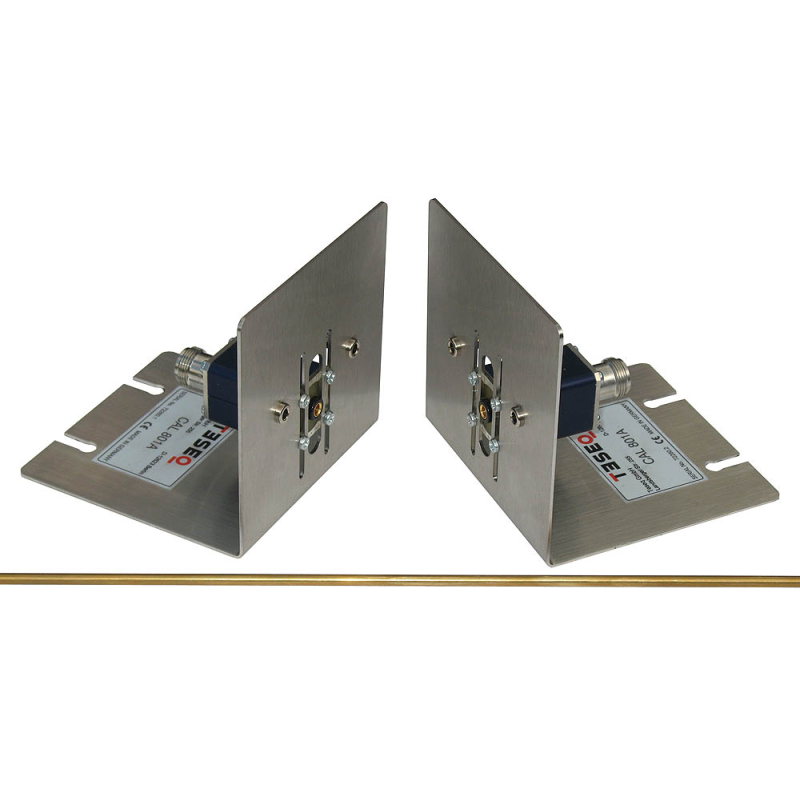

CAL 801A

Required for test level setting
Drawing in datasheet KEMZ 801B
Length: 670 mm
4 mm banana connectors on clamp side
RF N female connector
Weight: app. 640 g

Overview +

CAL 801A calibration unit for KEMZ 801

Standards +
IEC / EN Basic Standards+

IEC 61000-4-6

CISPR Standards+

CISPR 24

IEC / EN Generic Standards+

EN 61000-6-1 EN 61000-6-2

IEC / EN Product Standards+

IEC 60533 IEC 60601-1-2 IEC 61326
