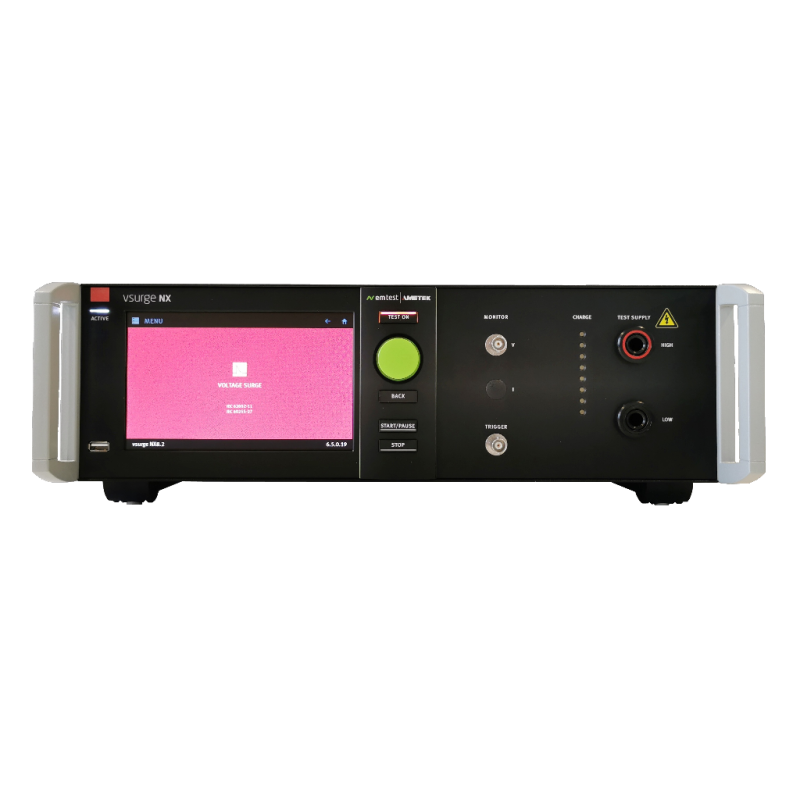

vsurge NX8.1

  • Voltage surge impulses up to 8 kV with constant energy of 0.5 J at all test levels
  • Specified tolerance + 0 % /- 10 %
  • Compliant to IEC 62052-11, IEC 60255-27, GB/T 17215.211 and IS 13779
  • 7 different test levels
  • Peak voltage and peak current measurement
  • Interlock and Warning lamp control
  • USB (optical link) and Ethernet interface

  • Overview +


    The voltage surge simulator vsurge NX8.1 generates high voltage transients as required by IEC 62052-11 and IEC 60255-27 with a source impedance of 500 Ohm for transient overvoltage tests on Metering equipment. The output voltage ranges up to 8 kV, covering all test levels. The no-load waveshape corresponds to IEC 61180-1. For this kind of testing the standards require a fixed energy of 0.5 J at all test levels.
