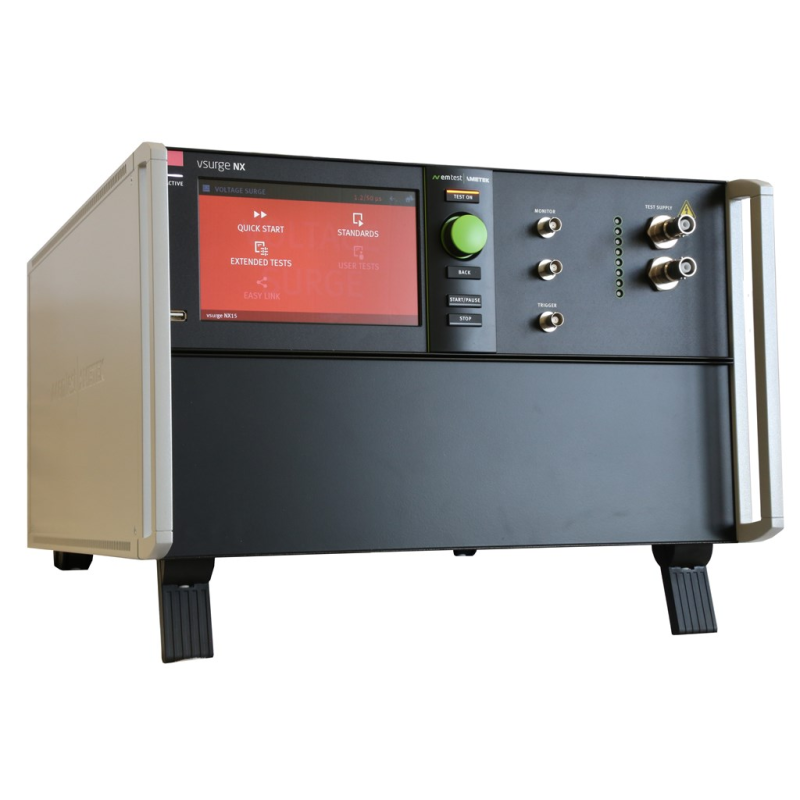

vsurge NX15

  • Voltage surge impulses up to 15 kV
  • Specified tolerance +/- 3 %
  • Compliant to IEC 60335-1, IEC 60060-1, IEC 61180/61180-1 and IEC 60664-1
  • Peak voltage and peak current measurement
  • External synchronization up to 690 V
  • Interlock and Warning lamp control
  • Manual operation
  • USB (optical link) and Ethernet interface

  • Overview +


    The voltage surge generator vsurge NX15 is specifically designed to generate high voltage transients as required by IEC 61180, IEC 60060-1, IEC 60335-1 and IEC 60664-1 for insulating testing. The purpose of these tests is to verify that clearances will withstand transient overvoltages. The impulse withstand test is carried out with a voltage having a 1,2/50 μs waveform. The requirements of the tests are satisfied if no indication of disruptive discharge or partial breakdown is obtained.
