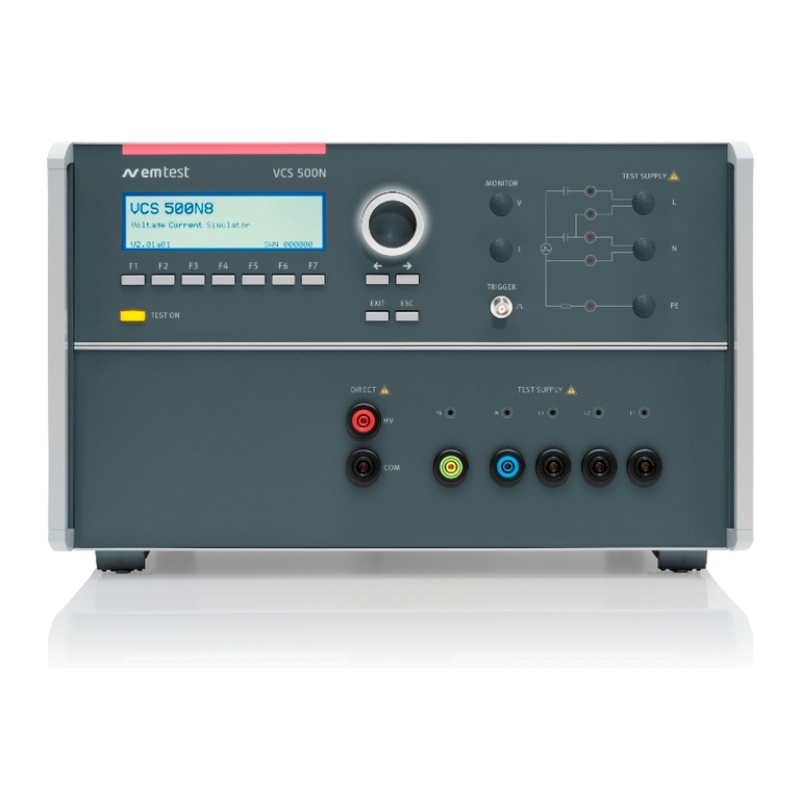

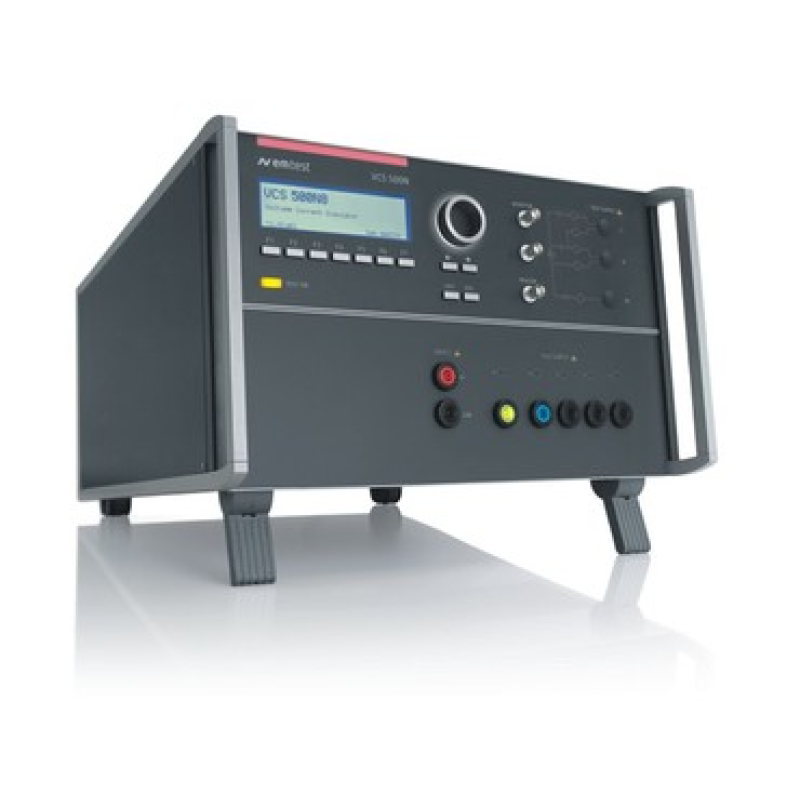

VCS 500N8 Series

  • Surge voltage up to 8kV
  • Surge current up to 4kA
  • Voltage/current monitors
  • Built-in CDN 1-phase or 3-phase up to 3 x 690V and 32A
  • Interlock
  • Warning lamp control
  • Manual operation
  • USB (optical link) and GPIB interface

  • Overview +


    Combination Wave Simulator Surge pulses occur due to direct or indirect lightning strokes to an external (outdoor) circuit. This leads to currents or electromagnetic fields causing high voltage or current transients. Another source for surge pulses are switching transients originating from switching disturbances and systems faults. Due to the characteristic of the phenomenon nearly every electrical and electronical device may suffer from such lightning events which justifies the necessity of surge tests being widely performed. Surge voltage can reach several thousands of volts and surge current is seen to reach several thousands of amps.
