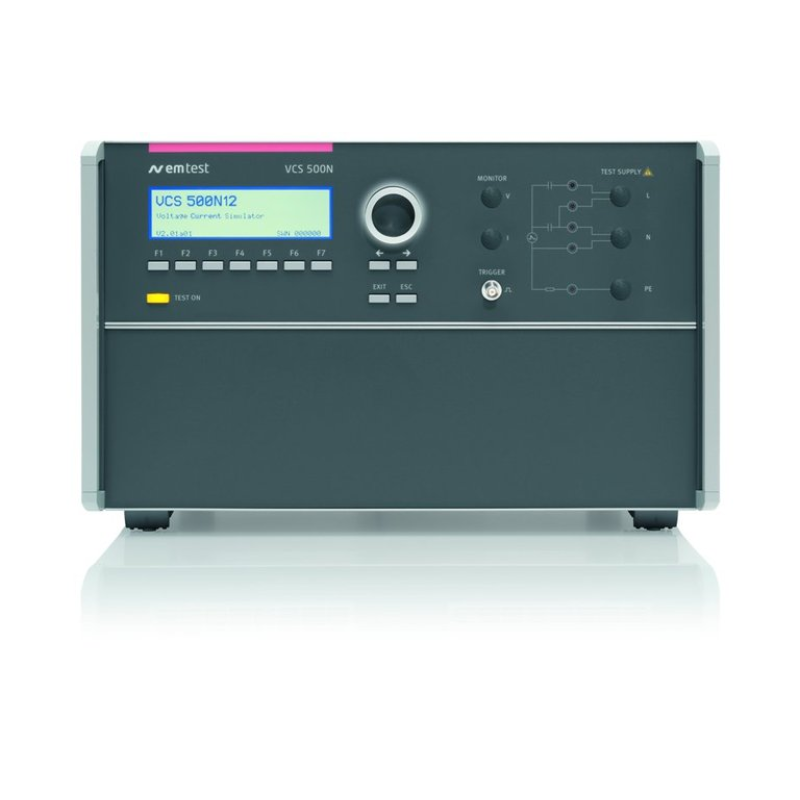

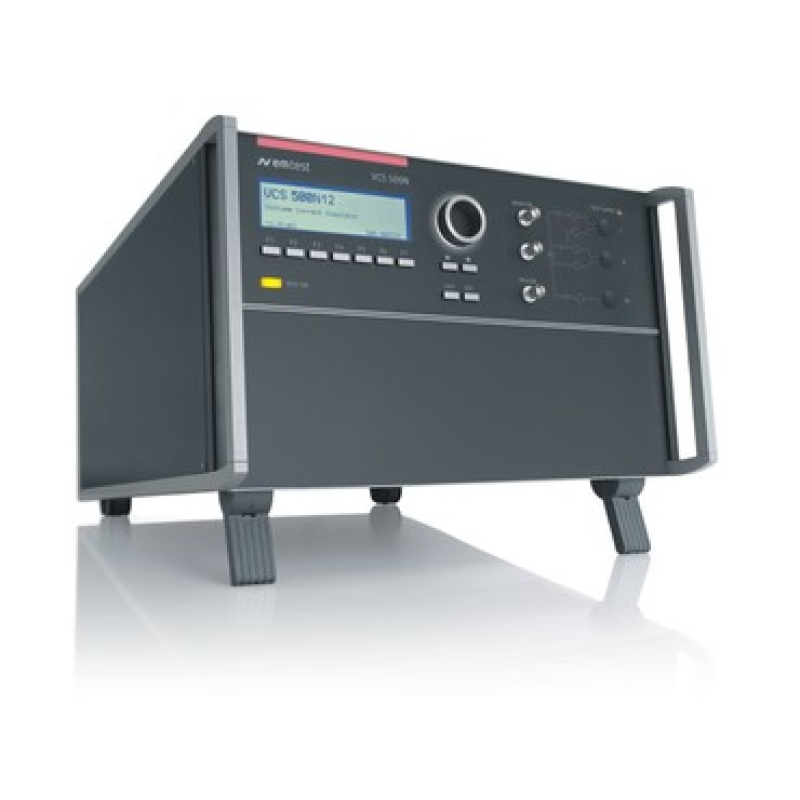

VCS 500N12 Series

  • Surge pulses up to 12kV/6kA
  • Single phase or three-phase coupler up to 100A (external option)
  • Fail inputs
  • Warning lamp control
  • Emergency interlock
  • Standard Test routines
  • USB (optical link) and GPIB interface

  • Overview +


    Combination Wave Simualtor Surge pulses occur due to direct or indirect lightning strokes to an external (outdoor) circuit. This leads to currents or electromagnetic fields causing high voltage or current transients. Another source for surge pulses are switching transients originating from switching disturbances and systems faults. Due to the characteristic of the phenomenon nearly every electrical and electronical device may suffer from such lightning events which justifies the necessity of surge tests being widely performed. Surge voltage can reach several thousands of volts and surge current is seen to reach several thousands of amps.

  • Datasheets +

  • Standards +


    • IEC / EN Basic Standards+

    • IEC / EN Generic Standards+
