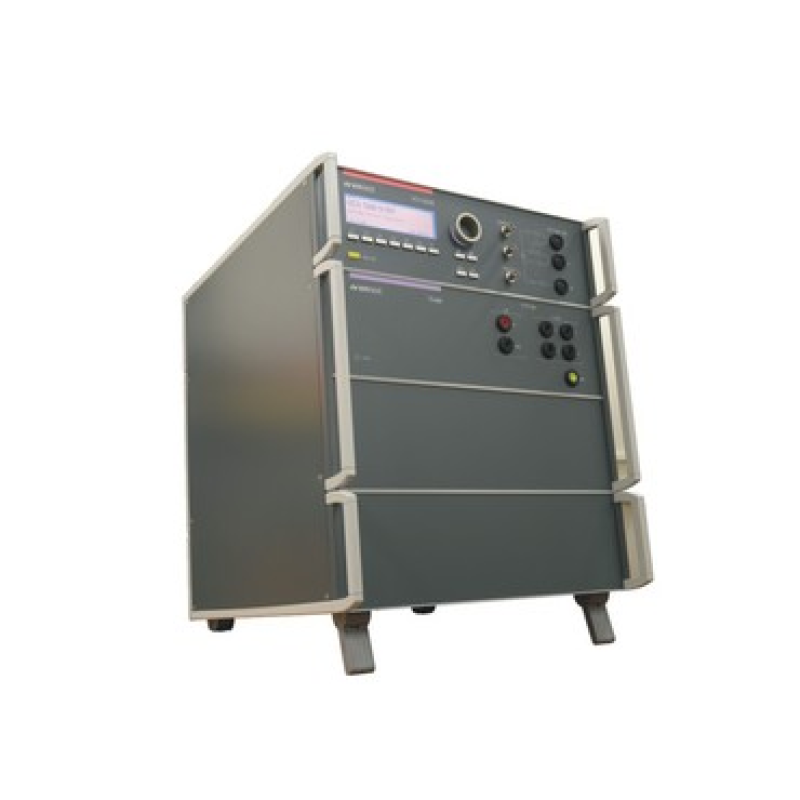

VCS 500N10T Series

  • Combination Wave up to 10kV/5kA
  • Telecom surge voltage up to 10kV
  • Telecom surge current up to 666A
  • Repetition rate 60s @10kV Surge
  • Built-in coupling for telecom port testing
  • USB (optical link) and GPIB interface
  • Interlock
  • Warning lamp control

  • Overview +


    Combined combination wave / Telecom surge generator Surge pulses occur due to direct or indirect lightning strokes to an external (outdoor) circuit. This leads to currents or electromagnetic fields causing high voltage or current transients. Another source for surge pulses are switching transients originating from switching disturbances and systems faults. Due to the characteristic of the phenomenon nearly every electrical and electronical device may suffer from such lightning events which justifies the necessity of surge tests being widely performed. Surge voltage can reach several thousands of volts and surge current is seen to reach several thousands of amps.

  • Datasheets +

  • Standards +


    • IEC / EN Basic Standards+

    • IEC / EN Generic Standards+

    • Telecom / ITU+
