UCS 200N Family

Built-in EFT/Burst generator module
Built-in Micropulse generator module (ISO 7637, JASO, SAE and many more)
Built-in coupling network 80V, up to 200A
Built-in battery switch
Overcurrent protection
USB and GPIB-Bus
Emergency stop
Software for Windows

Overview +

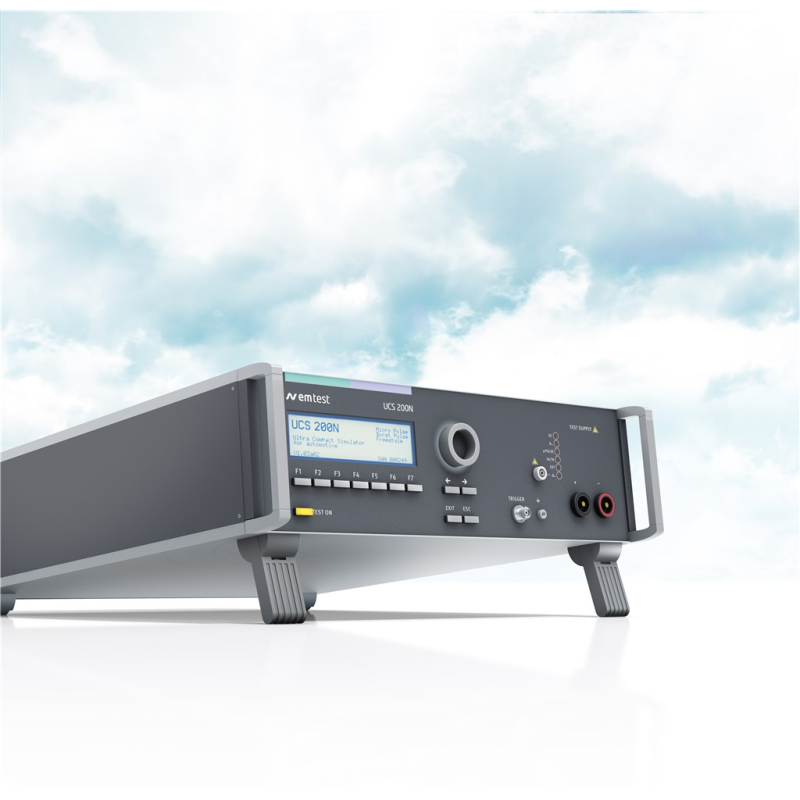

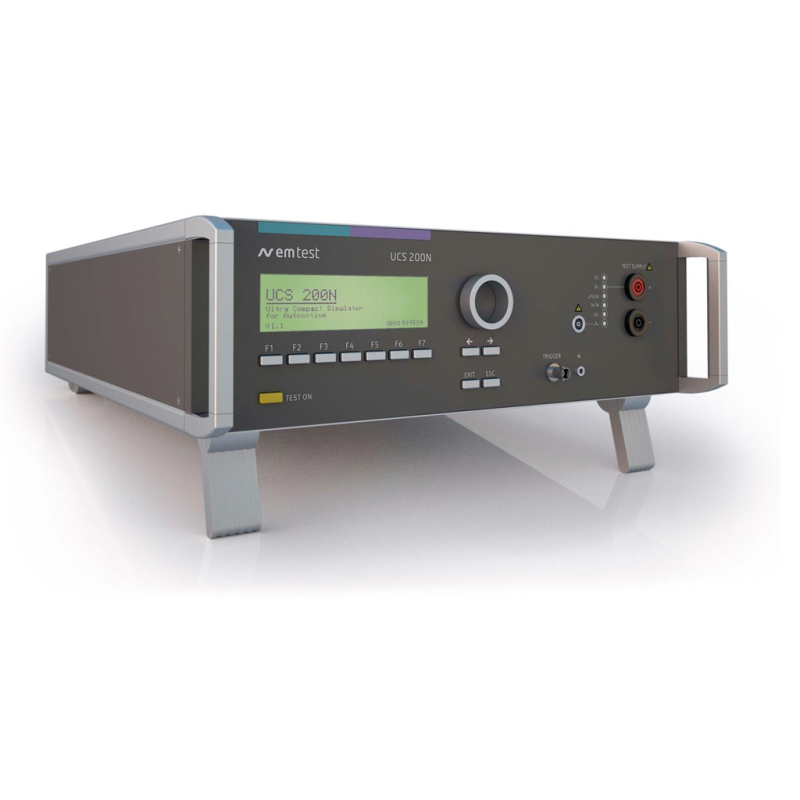

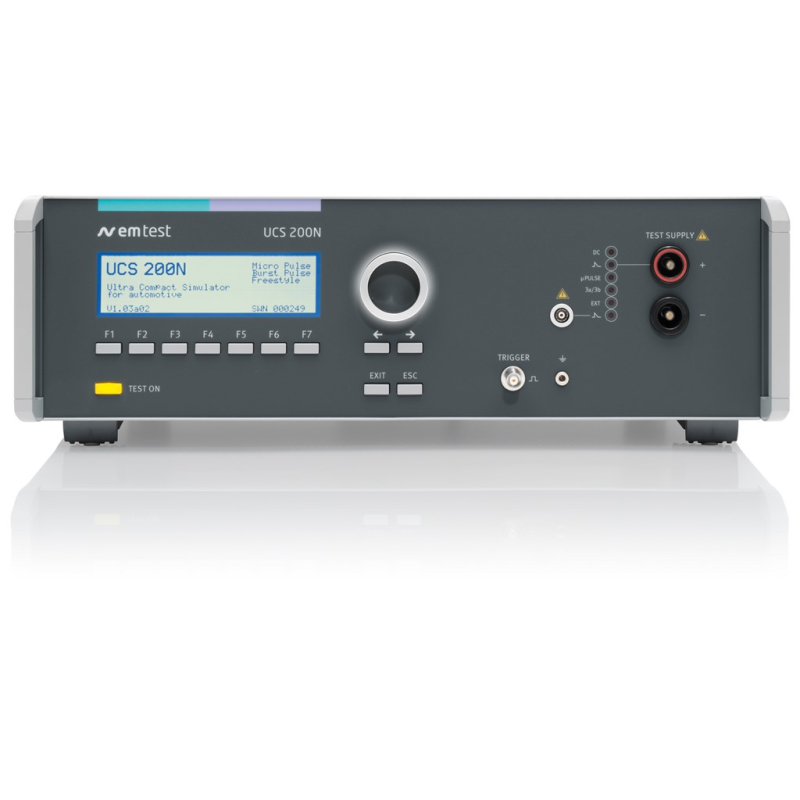

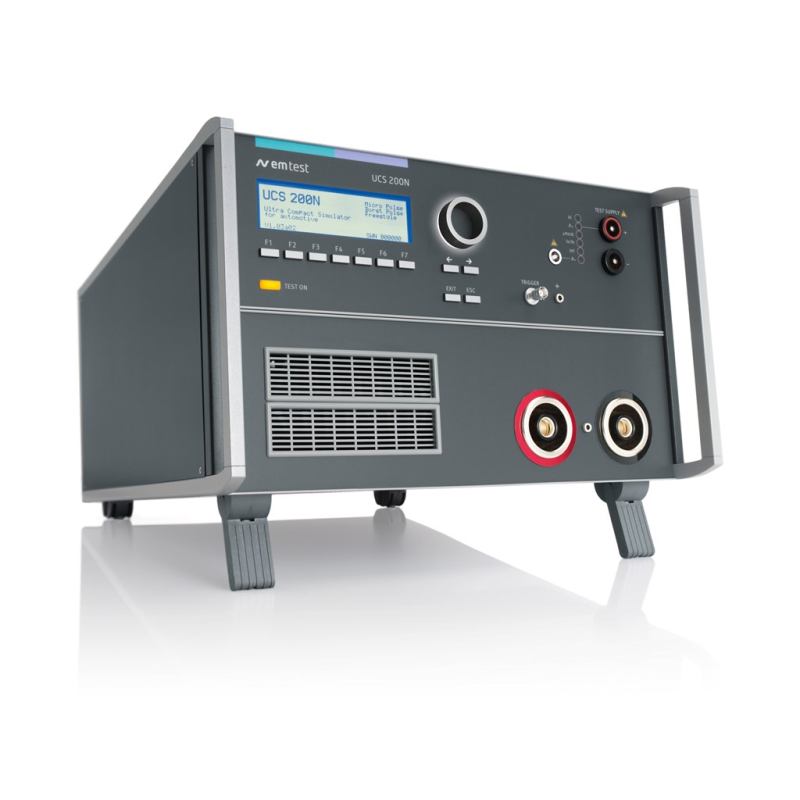

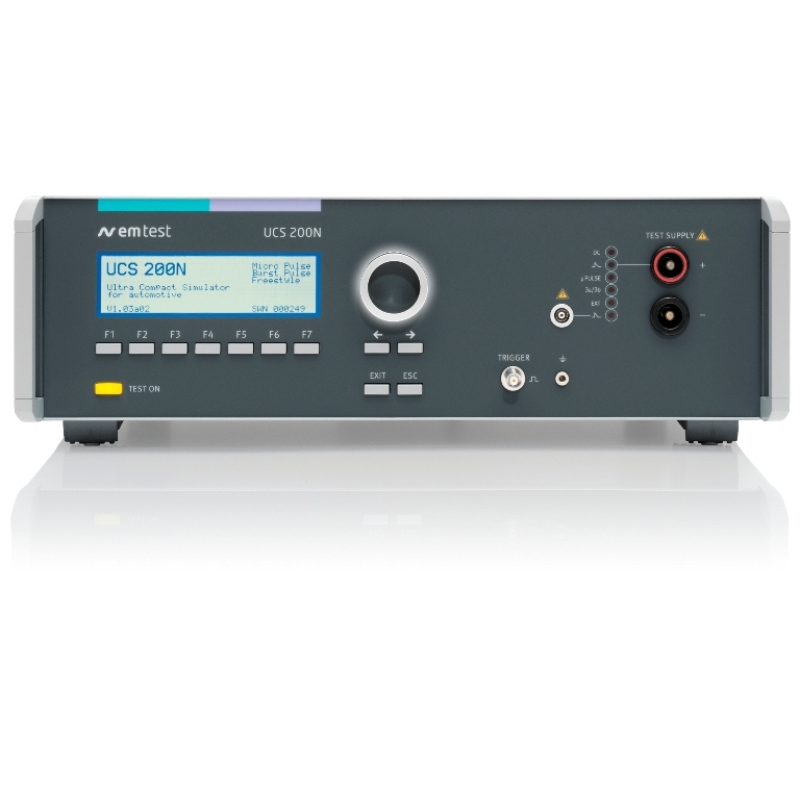

Ultra-Compact Simulators for Automotive Transients for Pulses 1, 2 and 3a/3b The UCS 200N Ultra-Compact Simulator series for Automotive Transients unifies the capabilites of an EFT/Burst simualtor, a Micropulse simulator and the required coupling network into one box. The UCS 200N series is equiped to meet all international and car manufacturer specifications from around the globe. The built-in coupling network ranges up to 200A depending on the model. The built-in coupling network can be used and controlled by any unit of the LD 200N series, VDS 200N/Q/R series and PFS 200N series. For tests beyond standard's requirements the waveform parameters of the Micropulse generator can be varied in a wide range by means of the FreeStyle mode.

Datasheets +
- UCS 200Nx_2 Series_datasheet_2022-06-03_EN
- UCS 200Nx_3 Series_datasheet_2022-06-03_EN

Standards +
Automotive Standards+

ISO 7637-2 ISO 7637-3 SAE J1113-11 SAE J1113-12 SAE J1455

Laws & Directives+

ECE R10 (Automotive)

Automotive OEM Specifications+

BMW GS 95002 Chrylser CS-11979 Fiat 9.90110 Ford EMC-CS-2009.1 GMW 3097 Honda 3910Z-TVA-0000 Hyundai Kia ES 96100-02 IVECO 16-2103 Mack Trucks 606GS15 MAN 3285 Mazda MES PW 67602 Mercedes MBN 10284-2 Mitsubishi ES-X82010 Porsche PSA B21 7110 Renault 36-00.808/--N Scania TB1901 Volvo STD 515-003 VW TL 801 01 Ford FMC 1278 Jaguar JLR-EMC-CS Hyundai Kia ES 96200-00 Tesla TS-0000048-06 FCA CS.00054 Case New Holland ENS0310 Mercedes MBN 10284-4
Videos +
ProductVideoMessage
- EMC compliance solutions for electric vehicles

  Transient immunity and emissions testing for every automotive application: 12, 24, 48V and EVs
