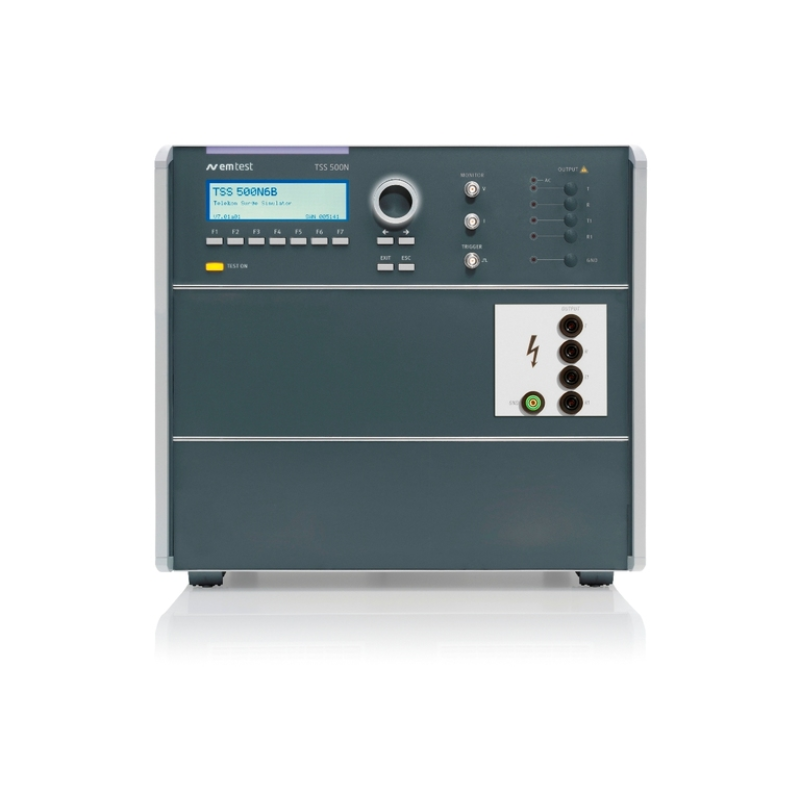

TSS 500N6 Series

Compact Tester for Bellcore/Telcorida GR-1089-CORE
Test pulses for 4-wire telecom applications
Also covers 2-wire telecom port testing
Generates test pulses 10/360µs, 10/1,000µs and 2/10µs
Includes all necessary matching resistors
Built-in coupling network
Supports testing 12 pairs (10/360µs)
Manual operation

Overview +

TSS 500N6B - Telecom Surge generator for Bellcore 4-wire applications Telecommunication networks are exposed to lightning events. Therefore telecommunications equipment being connected to the outside world need to have appropriate protection to show an acceptable immunity to surge transients in order not to fail in case of lightning events. The TSS 500N6B is used for 4-wire applications as per Bellcore GR-1089-Core and supports 12 pair telecom port testing via the CNB 500 optional coupler. It can also be used for the 2-wire telecom port testing.

Datasheets +
- Data Sheet TSS 500N6B (20100920)

Standards +
Telecom / ITU+

Bellcore GR-1089-Core ITU-T K.12 ITU-T K.28 ITU-T K.45
