TSS 500N4 Series

Standalone Tester for Bellcore or IEC 61000-4-5
Manual operation
Built-in CDNs for 2-wire and 4-wire applications
Standard Test routines
USB and GPIB interface

Overview +

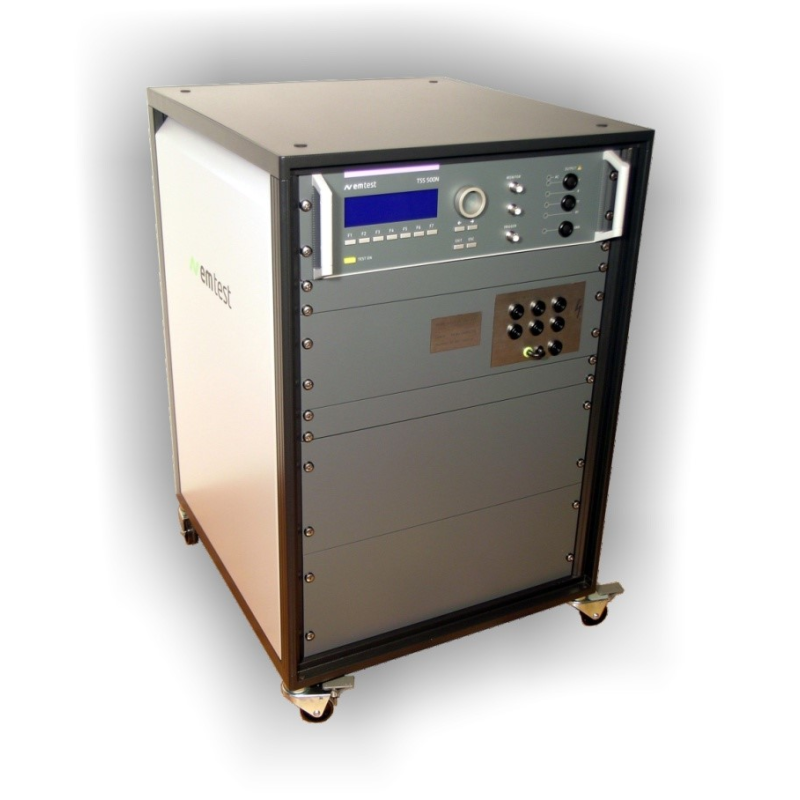

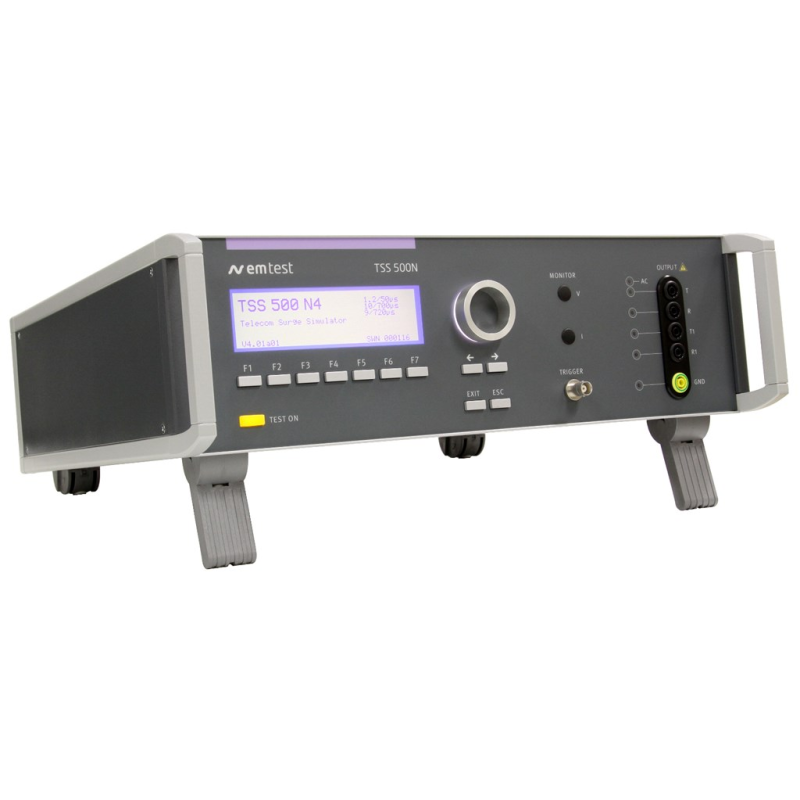

TSS 500N4 - Compact Telecom Surge generator with 10/700 us test pulse TSS 500N4B - Telecom Surge Simulator as per Bellcore GR-1089-Core consisting of Pulse 10/250us up to 4kV /2kA

Datasheets +
- Data Sheet TSS 500N4 (20150216)
- Data Sheet TSS 500N4B

Standards +
Telecom / ITU+

Bellcore GR-1089-Core ITU-T K.17 ITU-T K.20 ITU-T K.28 ITU-T K.45 FCC 97-270 (part 68)

IEC / EN Basic Standards+

IEC 61000-4-5

IEC / EN Product Standards+

IEC 60065 IEC 60950-1
