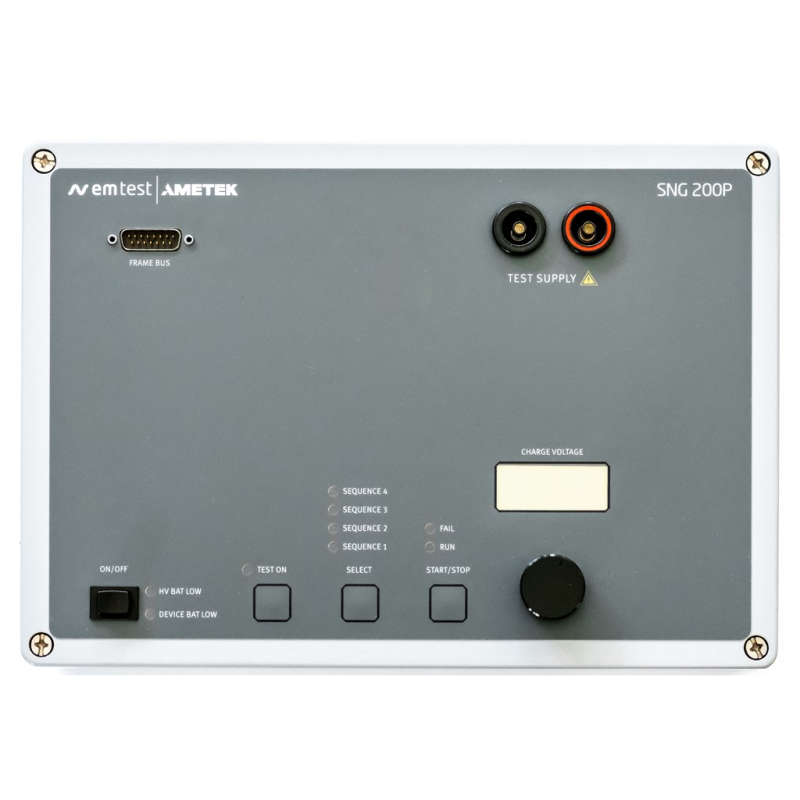

SNG 200P series

Portabel switched noise generator
Fast edge switch noise for VW 80300, EHV-16
Built-in 100 V power supply
Battery operated with rechargeable batteries
In advance programmable via AutoWave
Fast rise and fall time
Manual operation

Overview +

SNG 200P - EHV-16 Fast Edge Switching Noise The SNG 200P is designed to simulate high voltage events in electrical vehicles according to EHV-16. The generator serves as a disturbance source of up to 100 V coupled on HV batteries, and is entirely battery powered so that you can take the generator directly to the injection point on the DUT.

Datasheets +
- SNG 200P

Standards +
Automotive OEM Specifications+

VW 80300
