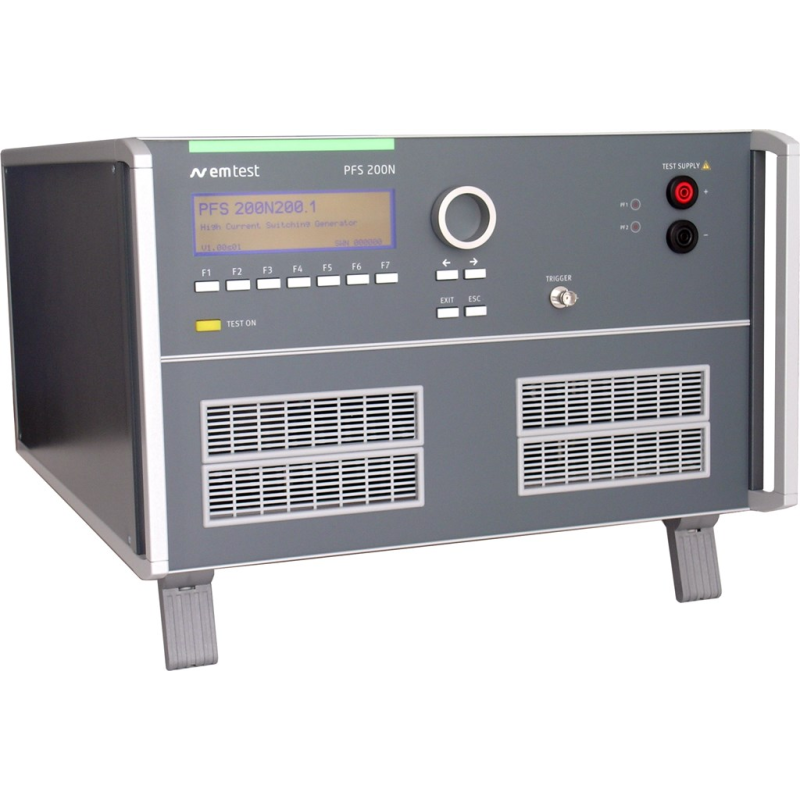

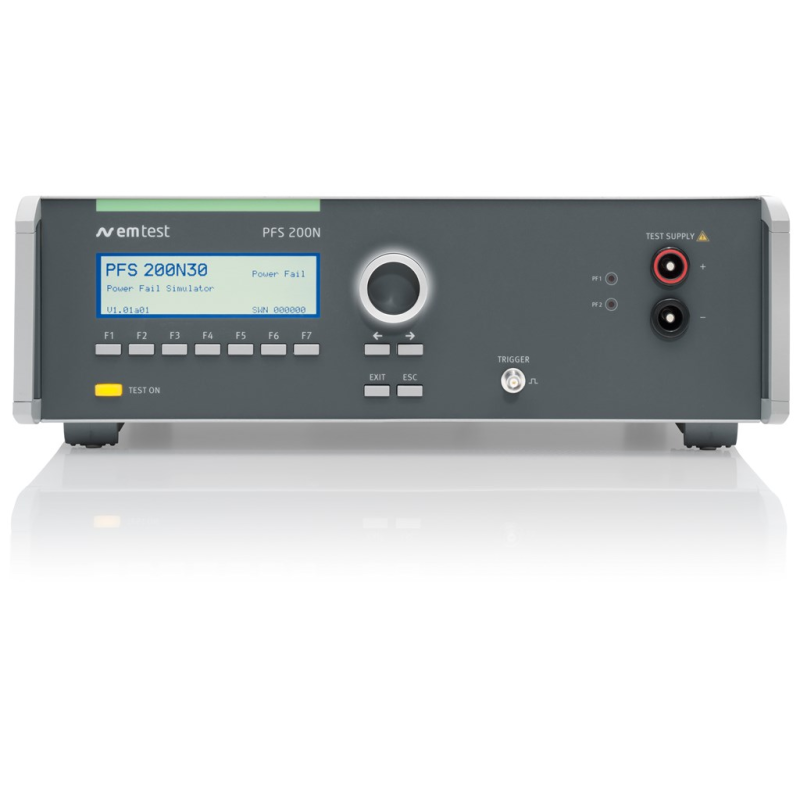

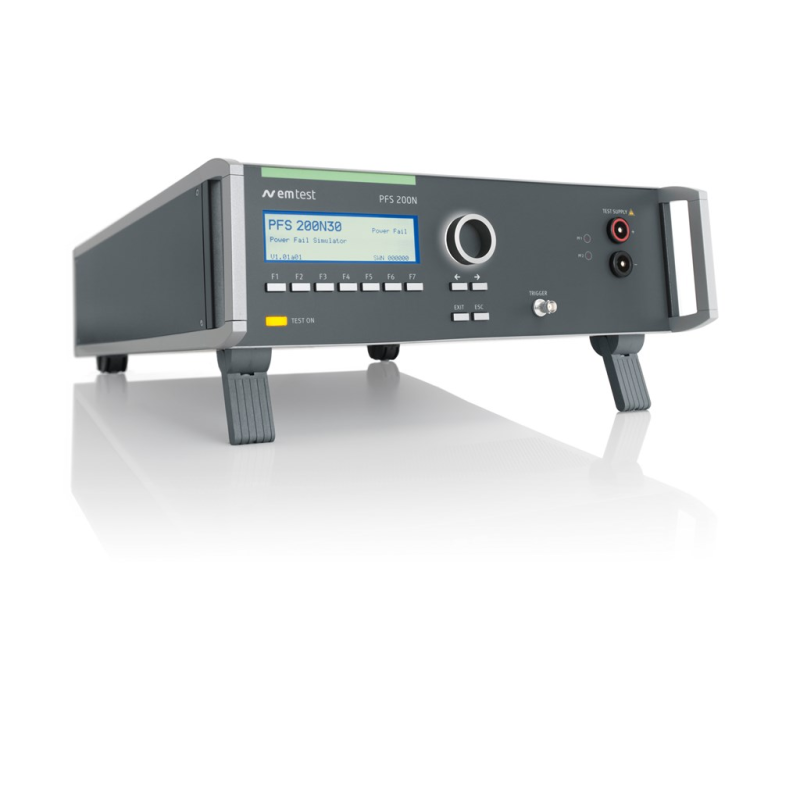

PFS 200N Series

Standalone test generator for voltage dips and interruptions
Rise / fall time <1 µs
Electronic short-circuit protection
Rated voltage 80 VDC
Analogue 0 - 10V output
Front panel operation
USB and GPIB remote interfaces

Overview +

PFS 200N - Automotive Power Fail Simulator For Voltage Dips and Interruptions The PFS 200N Automotive Power Fail simulator is used to comply with standard requirements, mainly from vehicle manufacturers, to perform fast voltage dips ad drops (micro-interruptions). Some standards specify very fast rise and fall times below 1 microsecond an electronic switch.

Datasheets +
- PFS 200N Series_datasheet_2022-06-03_EN

Standards +
Automotive Standards+

ISO 16750-2

Automotive OEM Specifications+

BMW GS 95003-2 Chrylser CS-11979 Fiat 9.90110 Ford EMC-CS-2009.1 GMW 3172 Hyundai Kia ES 95400-10 Hyundai Kia ES 96100-02 IVECO 16-2103 Mack Trucks 606GS15 Mitsubishi ES-X82010 PSA B21 7110 Volvo STD 515-003 Ford FMC 1278 BMW GS 95024-2-2 Jaguar JLR-EMC-CS Tesla TS-0000425-05
