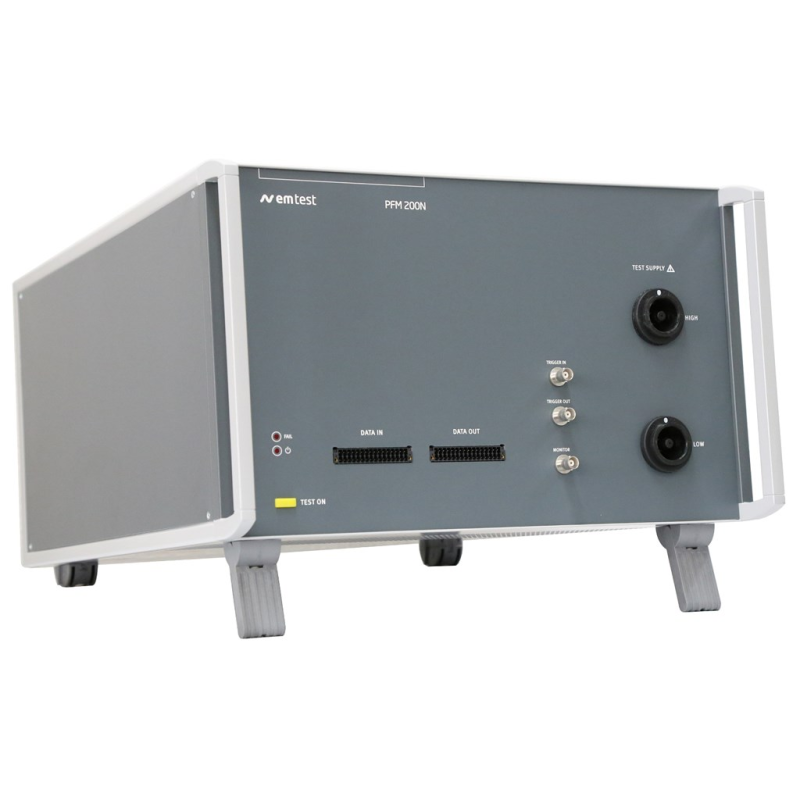

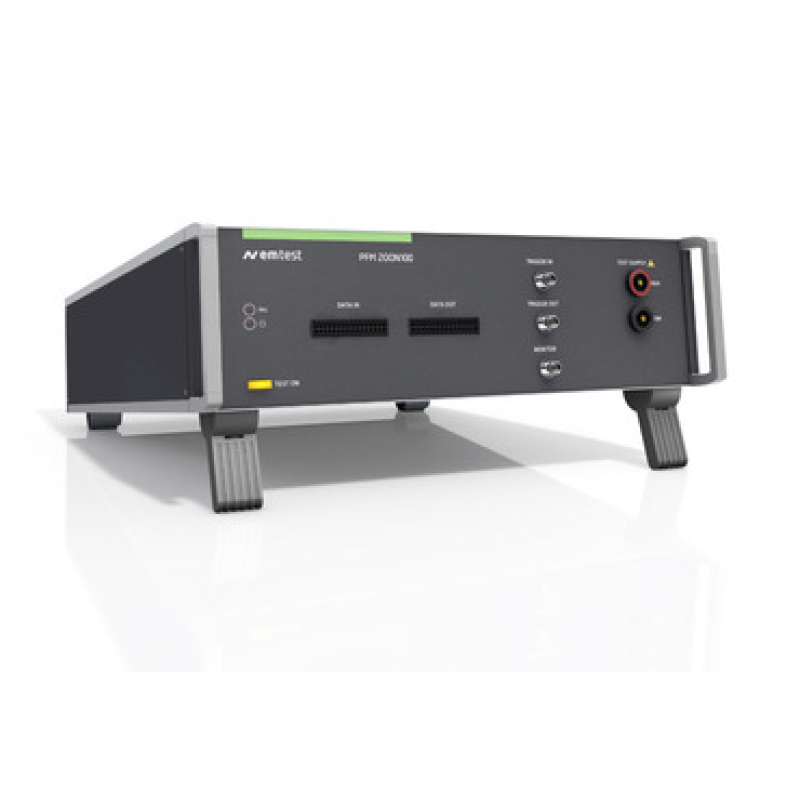

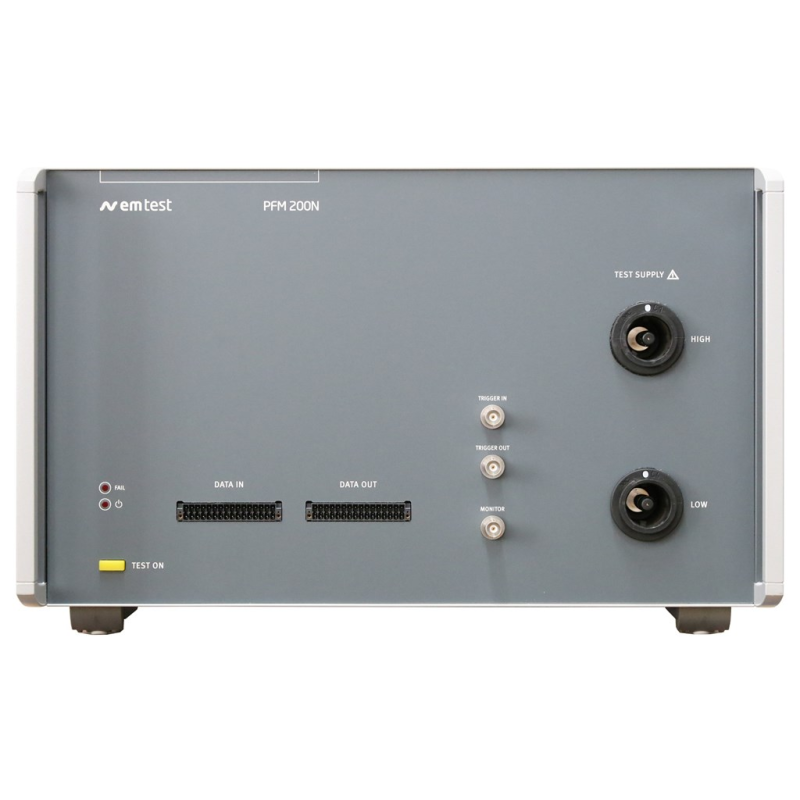

PFM 200N Series

  • Switch for Power supply (100 A / 200 A) and signal/data lines (2 A)
  • Pulses E10 and E13 of the LV 124/LV 148 standard
  • Bidirectional current direction
  • Separate switch in the ground line
  • Rise/fall time less than 200ns
  • Built in short-circuit switch <100 mohm
  • Rated voltage ±100 VDC
  • short-circuit-proof

  • Overview +

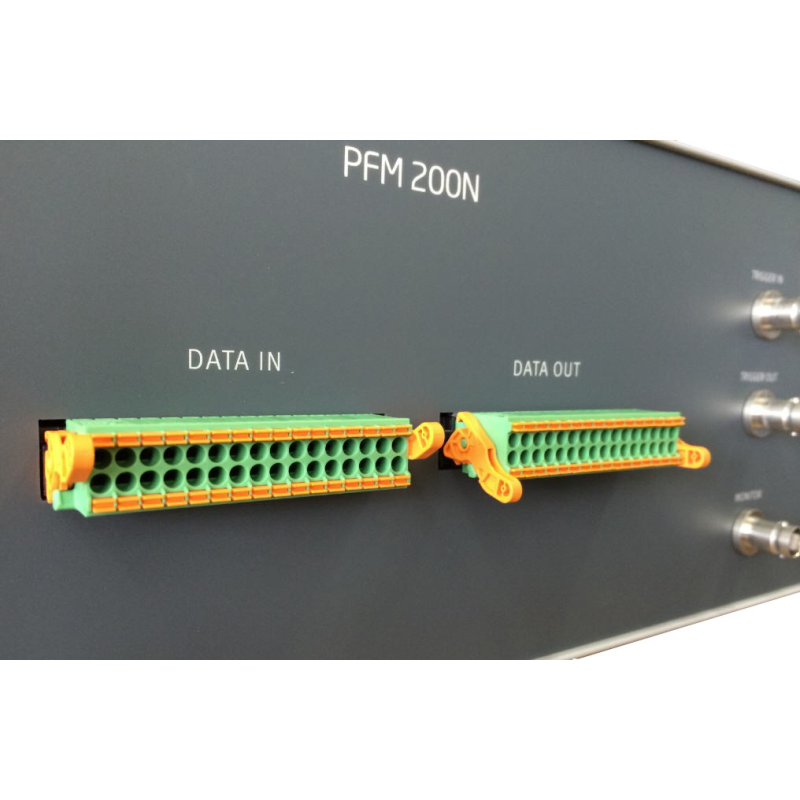

    The PFM 200N100.1 and PFM 200N200 have been designed to fully meet the requirements for E10, E13 and E14 of the LV 124 and the E48-09 of the LV 148. It also allows to perform microinterruptions with fast rise/fall time of as low as 200ns as required by GMW 3172, sec. 9.2.18. The PFM 200N series includes a switch for the power supply line from 100 mA to 200A and a separate switch in the ground return path. These switches can support very high inrush currents up to several hundreds of Ampères. For signal- and data lines an additional 16 channel switch is included with current rating from 100 uA to 2 A per channel.

  • Datasheets +

  • Standards +


    • Automotive OEM Specifications+

  • Videos +
