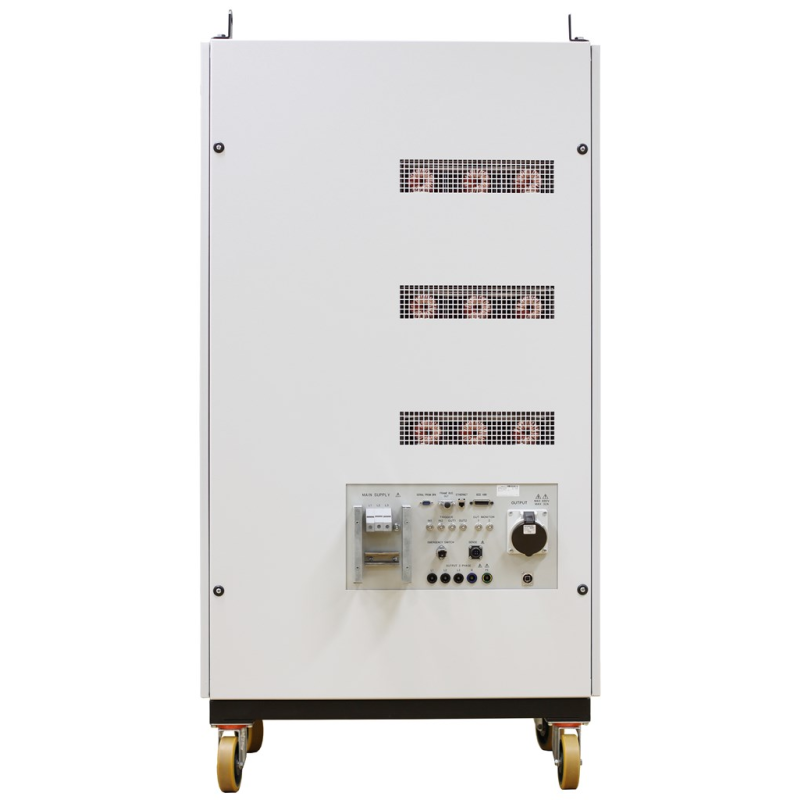

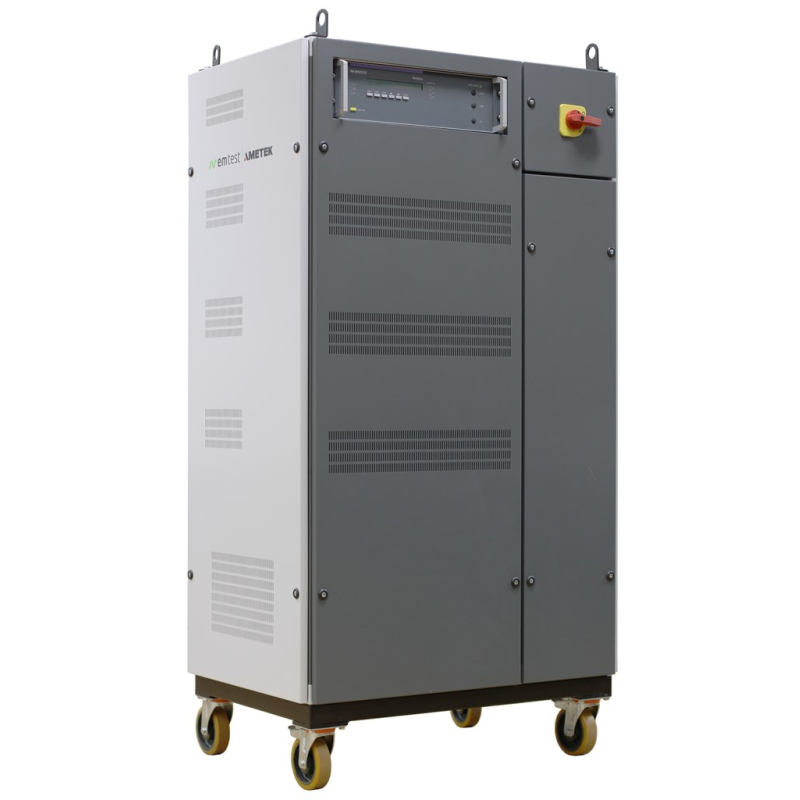

NetWave 30 Series

  • Wide Power Bandwidth: DC - 5 kHz
  • Output Power up to 30 kVA AC / 36 kW DC
  • Output up to 3x690 VAC (p-p), ±1120 VDC
  • High Inrush Current Capability
  • Power-recovery up to nominal power (optional)
  • Built-in Signal Waveform Generator
  • Standard Test Routines for IEC/EN, Aircraft, MIL-STD, DO-160 and EV testing
  • Multi Source options available (upgradable)
  • Overview +


    NetWave - Simulation of the most required power supply phenomenon The NetWave Series (3-phase) are three-phase AC/DC power source, specifically designed to fully meet the requirements as per the standards IEC/EN 61000-4-13, -4-14, -4-28 and in addition to pre compliance testing to -4-27. It is also used as a DC power source to cover the requirements as per the standards IEC/EN 61000-4-17 (Ripple on DC) and IEC/EN 61000-4-29 for voltage dips and interruptions on DC supplies. The NetWave series is well suited for testing inverters (e.g. solar power, wind power) and e-vehicles like ISO 21498, LV 123 and similar standard. Additionally, the NetWave series (3-phase) offers the necessary capabilities for avionics testing as per DO-160, Airbus ABD0100 and Boeing as well as per MIL-STD-704 and is perfectly suited as reference source for Harmonics and Flicker testing. Optionally the NetWave 3-phase series can be equipped with a power-recovery module to absorb feed-back power (AC/DC) up to nominal power of the NetWave.
