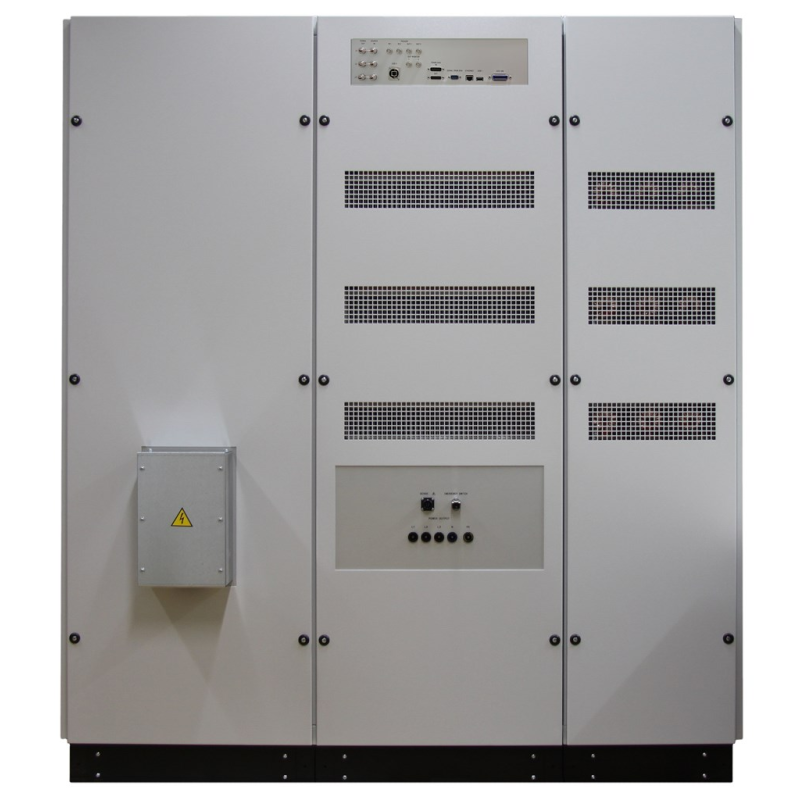

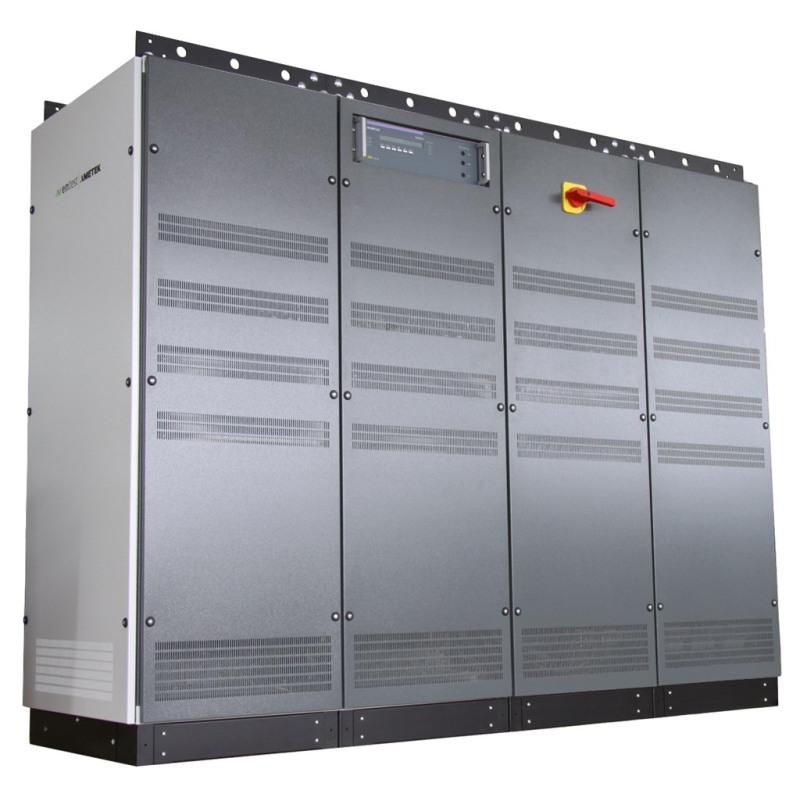

NetWave 108 Series

Wide Power Bandwidth: DC - 5 kHz
Output Power up to 108 kVA AC / 150 kW DC
Output up to 3x690 VAC (p-p), ±1120 VDC
High Inrush Current Capability
Power-recovery up to nominal power (optional)
Built-in Signal Waveform Generator
Standard Test Routines for IEC/EN, Aircraft, MIL-STD, DO-160 and EV testing
Multi Source options available (upgradable)

Overview +

NetWave - Simulation of the most required power supply phenomenon The NetWave Series (3-phase) are three-phase AC/DC power source, specifically designed to fully meet the requirements as per the standards IEC/EN 61000-4-13, -4-14, -4-28 and in addition to pre compliance testing to -4-27. It is also used as a DC power source to cover the requirements as per the standards IEC/EN 61000-4-17 (Ripple on DC) and IEC/EN 61000-4-29 for voltage dips and interruptions on DC supplies. The NetWave series is well suited for testing inverters (e.g. solar power, wind power) and e-vehicles like ISO 21498, LV 123 and similar standard. Additionally, the NetWave series (3-phase) offers the necessary capabilities for avionics testing as per DO-160, Airbus ABD0100 and Boeing as well as per MIL-STD-704 and is perfectly suited as reference source for Harmonics and Flicker testing. Optionally the NetWave 3-phase series can be equipped with a power-recovery module to absorb feed-back power (AC/DC) up to nominal power of the NetWave.

Datasheets +
- NetWave 108 Series_datasheet_2022-11-11_EN

Standards +
IEC / EN Basic Standards+

IEC 61000-3-2 IEC 61000-3-12 IEC 61000-3-3 IEC 61000-3-11 IEC 61000-4-13 IEC 61000-4-14 IEC 61000-4-17 IEC 61000-4-27 IEC 61000-4-28 IEC 61000-4-29

Automotive OEM Specifications+

VW 80300 LV 123 PSA B21 7110 Hyundai Kia ES 96200-00 VW 80303 BMW GS 95002-3 Ford FMC 1280 Great Wall Motors Company GWT A D05-02 Mercedes MBN 10284-3 Mercedes MBN 11123 Renault 36-00-811 PSA B21 7112 BMW GS 95023 Mercedes MBN LV123

Automotive Standards+

SAE J 2894-2 ISO 21498

Military and Aerospace+

MIL-STD 461 RTCA/DO 160 JIS W0812 Airbus ABD 100 Airbus AMD-24 Boeing 787B3-147 AECTP-500 GJB 181 MIL-STD 704 MIL-STD 1275

IEC / EN Product Standards+

IEC 61851-21-1 IEC 61920

IEC / EN Generic Standards+

IEC TS 61000-6-5

National Standards+

GB 17625.1 GB 17625.2 JIS 61000-3-2 KN 61000-3-2 KN 61000-3-3 KN 61000-3-11 KN 61000-3-12 SEMI F47-0706
Videos +
ProductVideoMessage
- EMC compliance solutions for electric vehicles

  Transient immunity and emissions testing for every automotive application: 12, 24, 48V and EVs
- Electric vehicle EMC testing - Ripple immunity

  introduction to ripple - what is it, how it is tested

Downloads +
- Application Notes (3) +
  Technical Note - Electrical Vehicle - Voltage Offset Test

  TN0116 EV Ripple_english

  TN0116 EV Ripple_Deutsch
- Brochures (1) +
  Test Solutions for Electrical Vehicles
