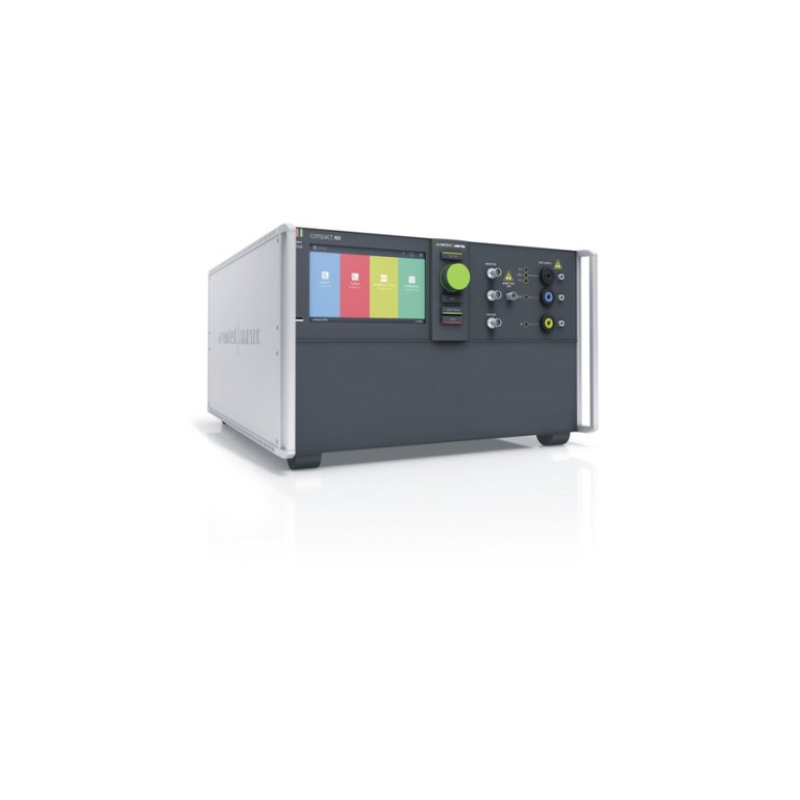

compact NX7 series

Smallest compact generator with 7" touch screen
Burst 5.5 kV, Surge & Ringwave 7.0 kV, Power Fail and Telecom 7.0 kV
Selective test library adapted to the EUT setting
Built-in single phase CDN
Manual front panel operation with setup pictures
Separate key for START/STOP operation with LED
Monitor outputs for peak voltage and current
Opto-Link, Ethernet and USB for remote control

Overview +

The compact Next Generation NX7 is the most versatile tester to address transient and power fail requirements for both international and commercial standards. Featuring an easy-to-use color touch screen, the NX7 provides an economical solution for pre-compliance immunity testing as well as full-compliance testing and CE Marking. Its internal single-phase Coupling/Decoupling Network (CDN) can be extended for testing three-phase EUTs by means of an automatically controlled external CDN up to 200 A per phase. AMETEK CTS supplies a large range of accessories for various applications such as magnetic field tests and more.

Datasheets +
- Data Sheet compact NX7 (20200228)

Standards +
IEC / EN Basic Standards+

IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-8 IEC 61000-4-9 IEC 61000-4-11 IEC 61000-4-12 IEC 61000-4-29

IEC / EN Generic Standards+

EN 61000-6-1 EN 61000-6-2

Telecom / ITU+

ITU-T K.17 ITU-T K.20 ITU-T K.28 ITU-T K.45
