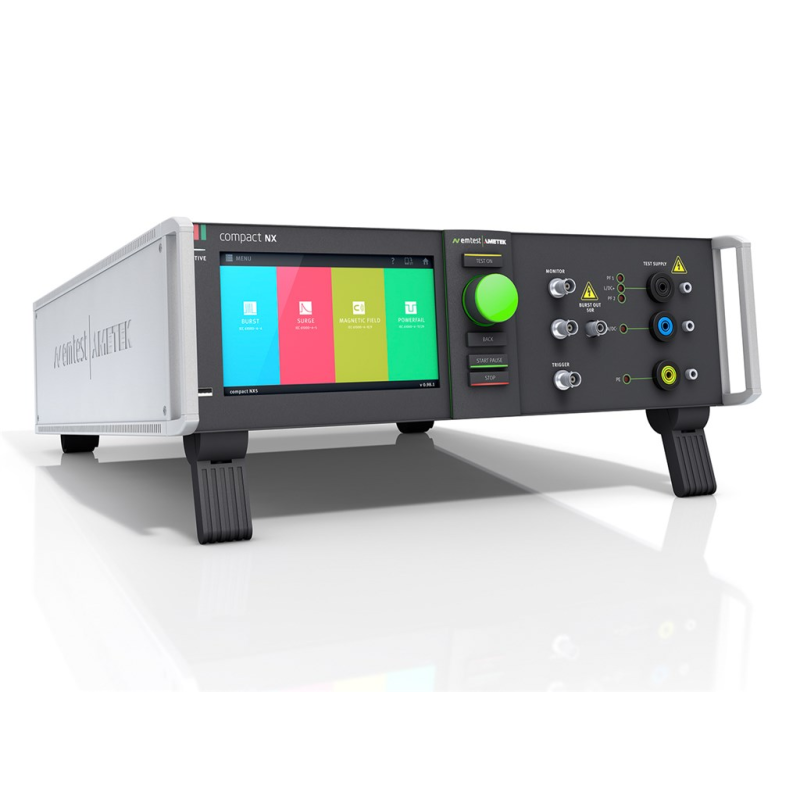

compact NX5 series

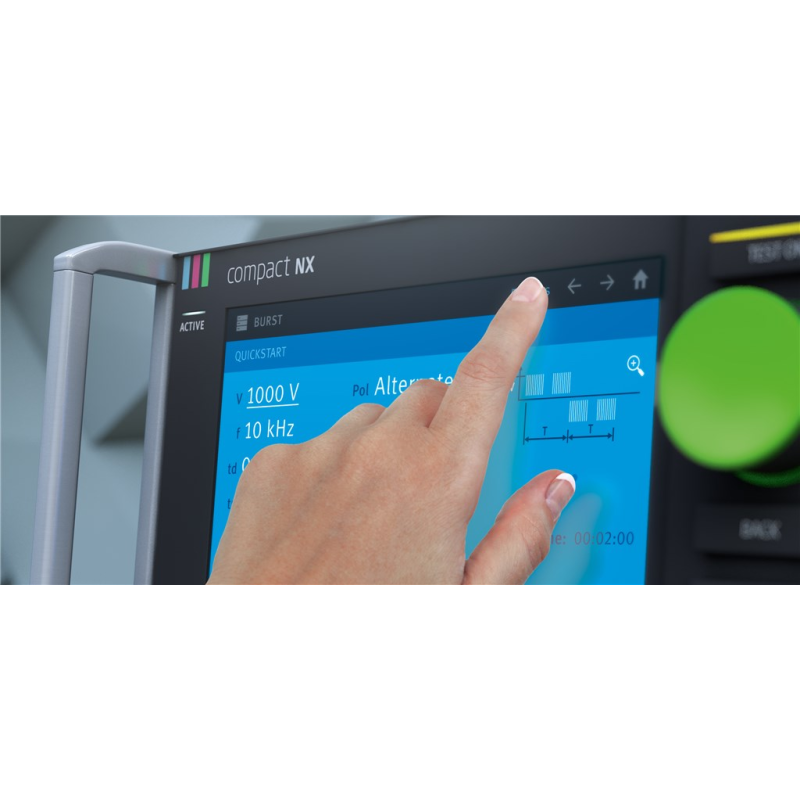

  • Smallest compact generator with 7" touch screen
  • Burst 5.5 kV, Surge 5.0 kV and Power Fail
  • Built-in single phase CDN 400 V/32 A

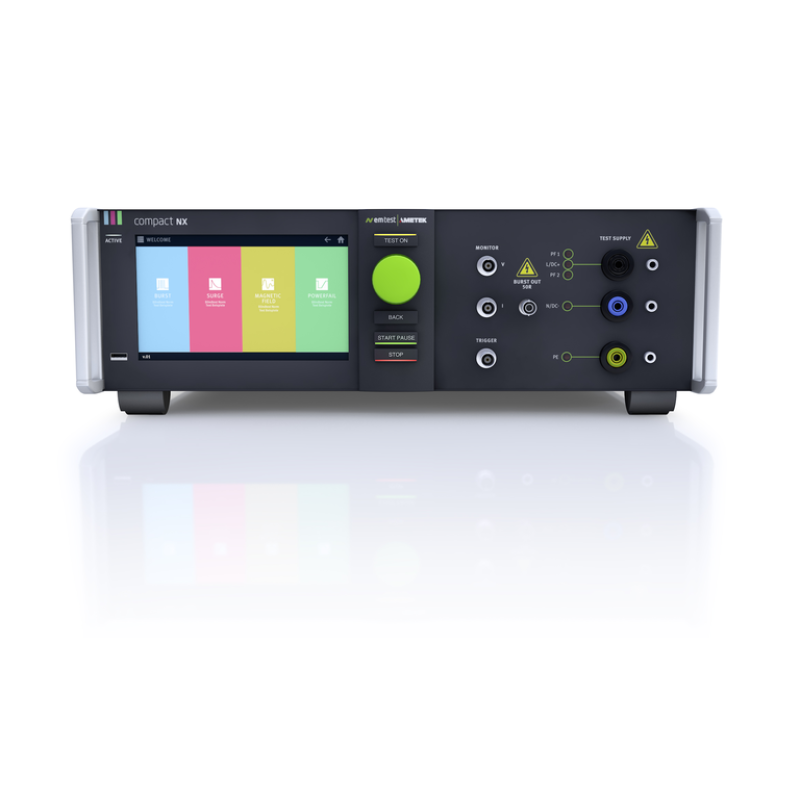

  • Manual front panel operation with setup pictures
  • Separate key for START/STOP operation with LED
  • Monitor outputs for peak voltage and current
  • Opto-Link and Ethernet for remote control

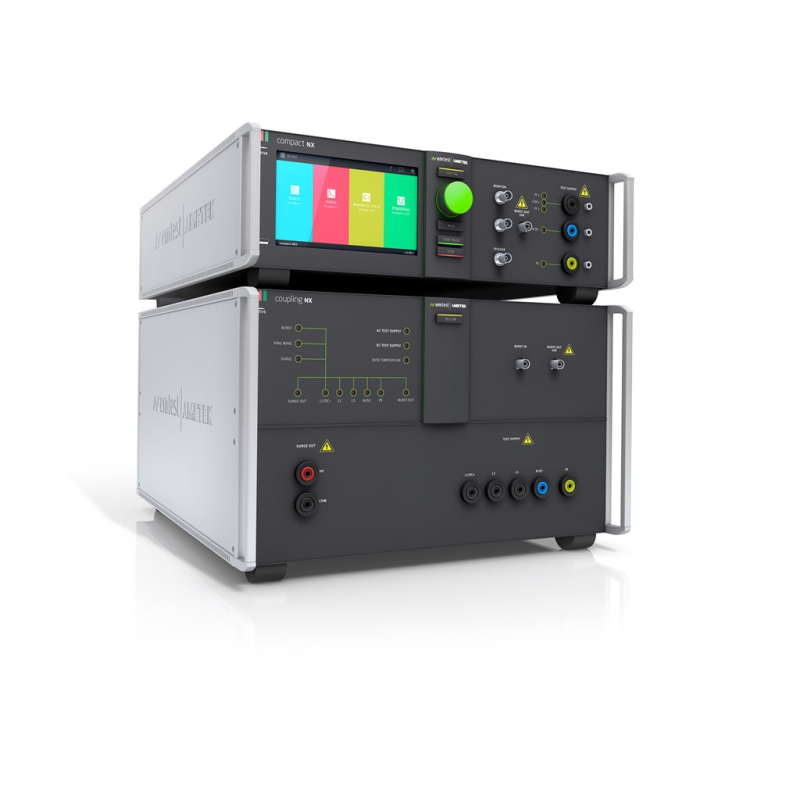

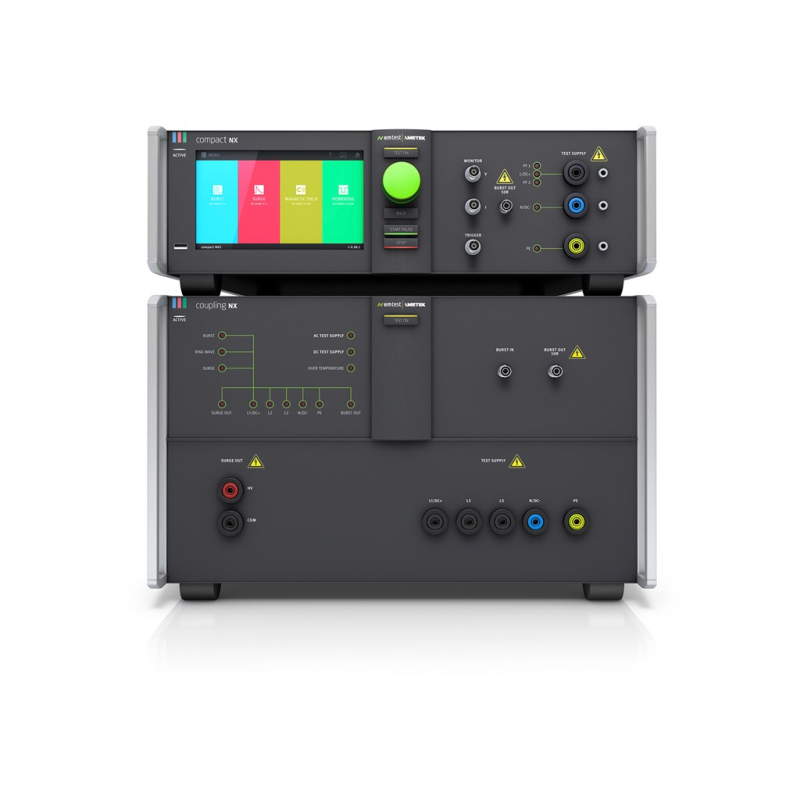

  • Control of external three-phase couplers

  • Overview +


    Compact NX5 - Compact Tester for EFT/Burst, Surge and PowerFail The compact Next Generation NX5 is the most versatile tester to address transient and power fail requirements for both international and commercial standards. Featuring an easy-to-use color touch screen, the NX5 provides an economical solution for pre-compliance immunity testing as well as full-compliance testing and CE Marking. Its internal single-phase Coupling/Decoupling Network (CDN) can be extended for testing three-phase EUTs by means of an automatically controlled external CDN up to 200 A per phase. EM TEST supplies a large range of accessories for various applications such as magnetic field tests and more.
