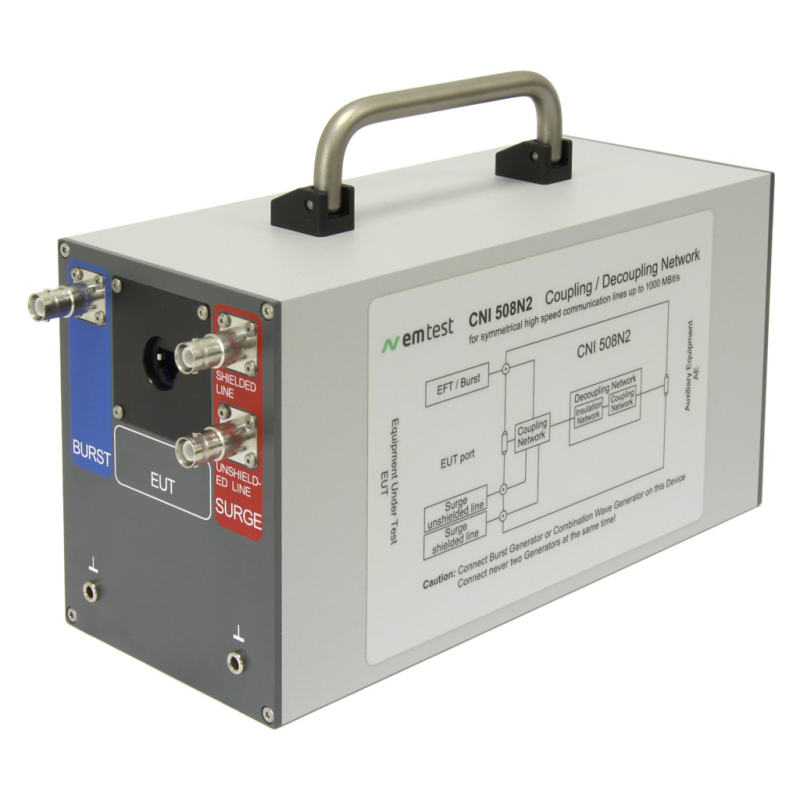

CNI 508N2

  • Coupling to unshielded and shielded lines with up to 4 pairs
  • Data transfer up to 1,000MBit/s
  • Surge test voltage up to 3kV (1.2/50us)
  • Burst test voltage up to 4kV (5/50ns)
  • Residual voltage max. 50V at 3kV Surge
  • Compatible to PoE and PoE+ requirements
  • DUT/AE connection via RJ45 connectors

  • Overview +

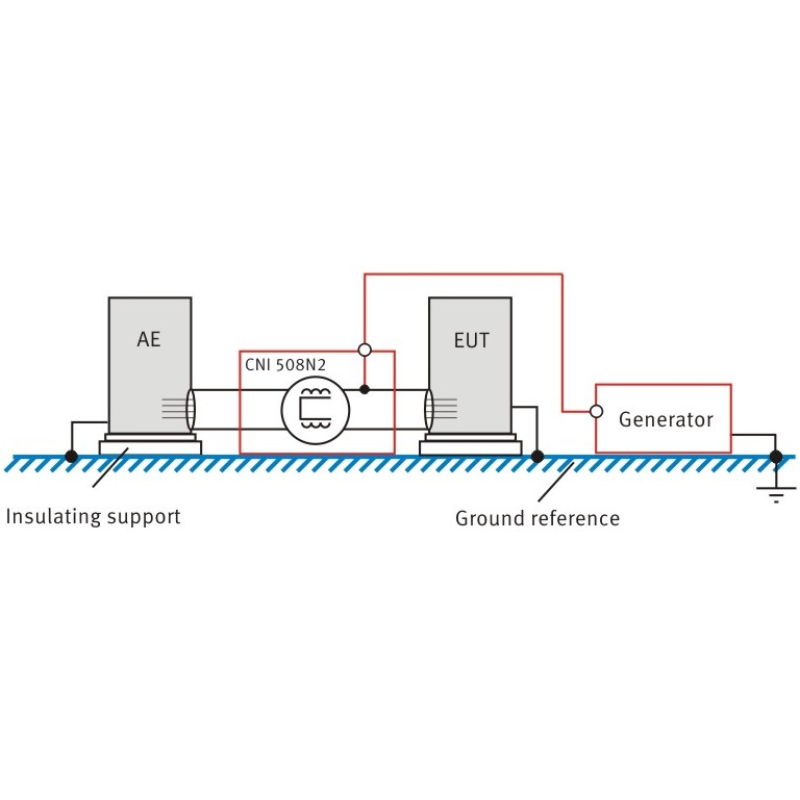

    Coupling/decoupling assembly for unshielded and shielded high-speed communication lines The CNI 508N2 from AMETEK CTS is the first coupling/decoupling network available on the market to couple Surge onto shielded and unshielded high-speed communication lines with data rates up to 1,000MBit/s. Additionally, the CNI 508N2 can be used as a coupling/decoupling network to apply Burst- as well as Surge pulses to unshielded symmetrical interconnection lines. The CNI 508 N2 meets the requirements according Figure 11 and Figure 12 to the standards IEC 61000-4-5 (Ed. 3.0 :2014).
